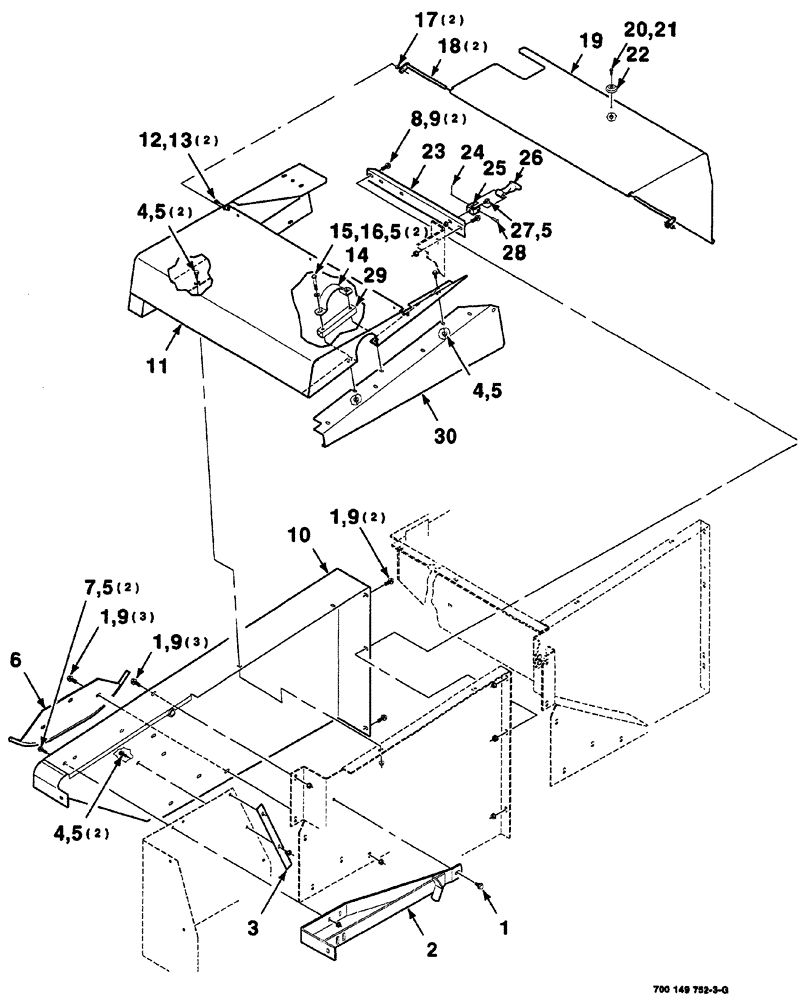

Запчасти Case IH 725 (07-020) - SHIELDS ASSEMBLY, RIGHT (SAFETY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

9шт.

2

700149913

STRAP

WA reinforcement

1шт.

3

700149934

STRAP

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

6

700130220

ROD

WA

1шт.

7

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

2шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

9

231-5146

FLANGE NUT,3/8"-16

10шт.

10

700149917

PANEL

WA right

1шт.

11

700149921

PANEL

WA right

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

13

425-104

NUT,1/4"-20, Cl 5

2шт.

14

700149933

RETAINER

hyd. hose

1шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

17

6124259

BUSHING

SPACER

2шт.

18

700149957

ARM

WA pivot

2шт.

19

700149962

PANEL

shield, right

1шт.

20

700707203

CAPTIVE WASHER SCREW

SCREW machine, hex washer head, #12-24 x 3/4"

1шт.

21

1954816C1

LOCK NUT

lock, special, #12-24

1шт.

22

700708648

BUMPER

rubber

1шт.

23

700149929

CHANNEL

1шт.

24

432-68

COTTER PIN,3/32" x 1/2"

1шт.

25

776674

SUPPORT

ANCHOR

1шт.

26

494307C1

LATCH

rubber

1шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

28

141-13

CLEVIS PIN,1/4" x 1.594"

clevis, 1/4" x 1-1/2"

1шт.

29

700149973

TUBE

spacer

1шт.

30

700149938

SUPPORT

BULKHEAD cover, right

1шт.
