(07-018) - SHIELDS ASSEMBLY, CENTER (SAFETY)

Запчасти Case IH 725 (07-018) - SHIELDS ASSEMBLY, CENTER (SAFETY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

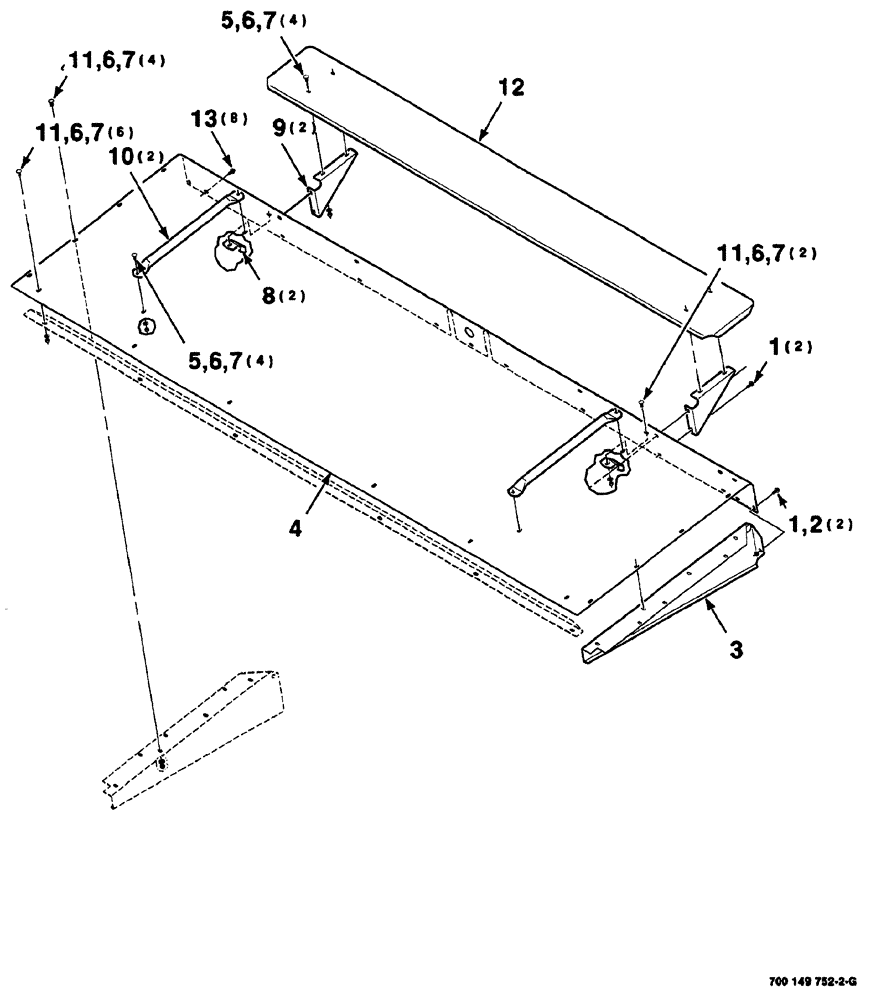

Схема запчастей Case IH 725 - (07-018) - SHIELDS ASSEMBLY, CENTER (SAFETY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
12
7
7
11
5
10
13
3
1
6
2
6
11
5
11
9
6
4
7
7
7
8
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

3

700149937

SUPPORT

BULKHEAD cover, left

1шт.

4

700149936

PANEL

cover, top

1шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

20шт.

7

425-105

NUT,5/16"-18, G5

20шт.

8

700149935

SUPPORT

shield

2шт.

9

700149939

SUPPORT

deck

2шт.

10

700149974

TUBE,33.4 mm OD, 541 mm Length

support

2шт.

11

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

12

700149940

PANEL

deck

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.
