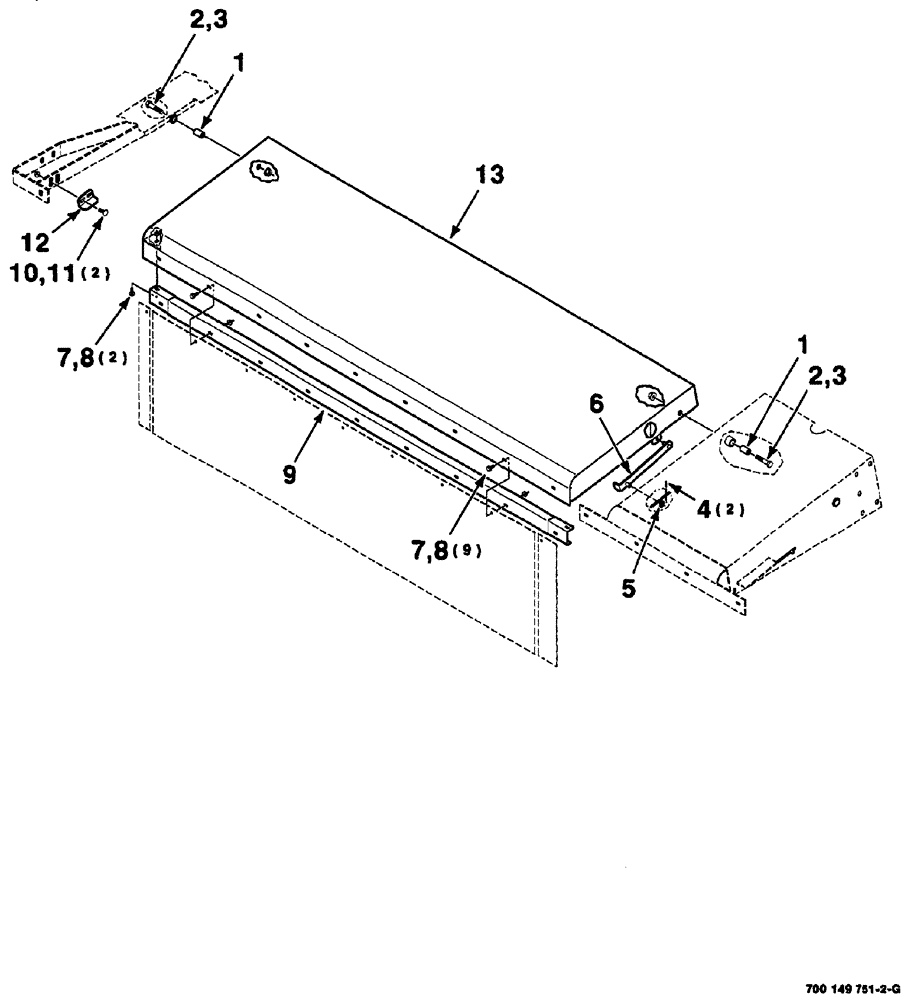

Запчасти Case IH 725 (07-010) - SHIELDS ASSEMBLY, RIGHT (CUTTERBAR) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

483284R1

SPACER

2шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

2шт.

4

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

6

700127224

LATCH

WA

1шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11шт.

9

700149900

CHANNEL

front

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

700149866

ANGLE

stop

1шт.

13

700149893

PANEL

WA shield

1шт.
