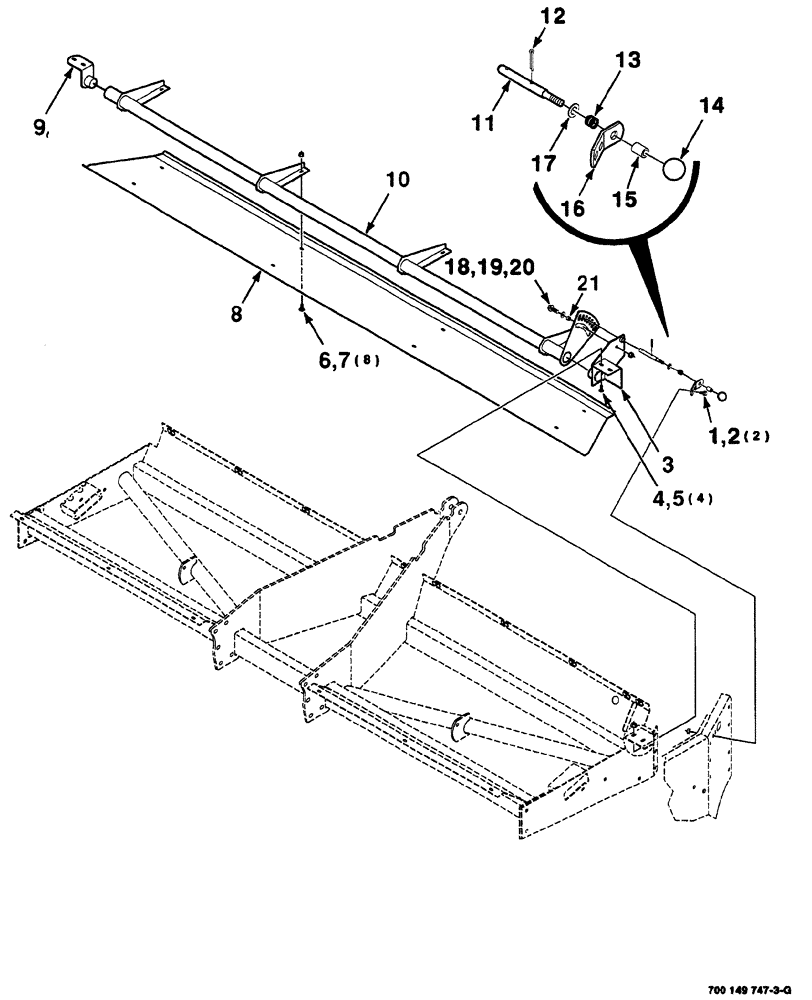

Запчасти Case IH 725 (07-006) - SWATHBOARD ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

3

700149834

MOUNTING PARTS

WA left

1шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

4шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

8шт.

8

700149838

PANEL

swathboard

1шт.

9

700149839

MOUNTING PARTS

WA right

1шт.

10

700149830

PIPE

WA

1шт.

11

700134748

PIN

1шт.

12

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

13

700703267

COMPRESSION SPRING

1шт.

14

721258

KNOB

1шт.

15

6595516

SPACER

1шт.

16

700149847

SUPPORT

pin, latch

1шт.

17

95-81100

WASHER,33/64" x 7/8" x .049"

BUSHING machinery, narrow rim, 1/2" x 18 gauge

1шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

6489231

SPACER

1шт.
