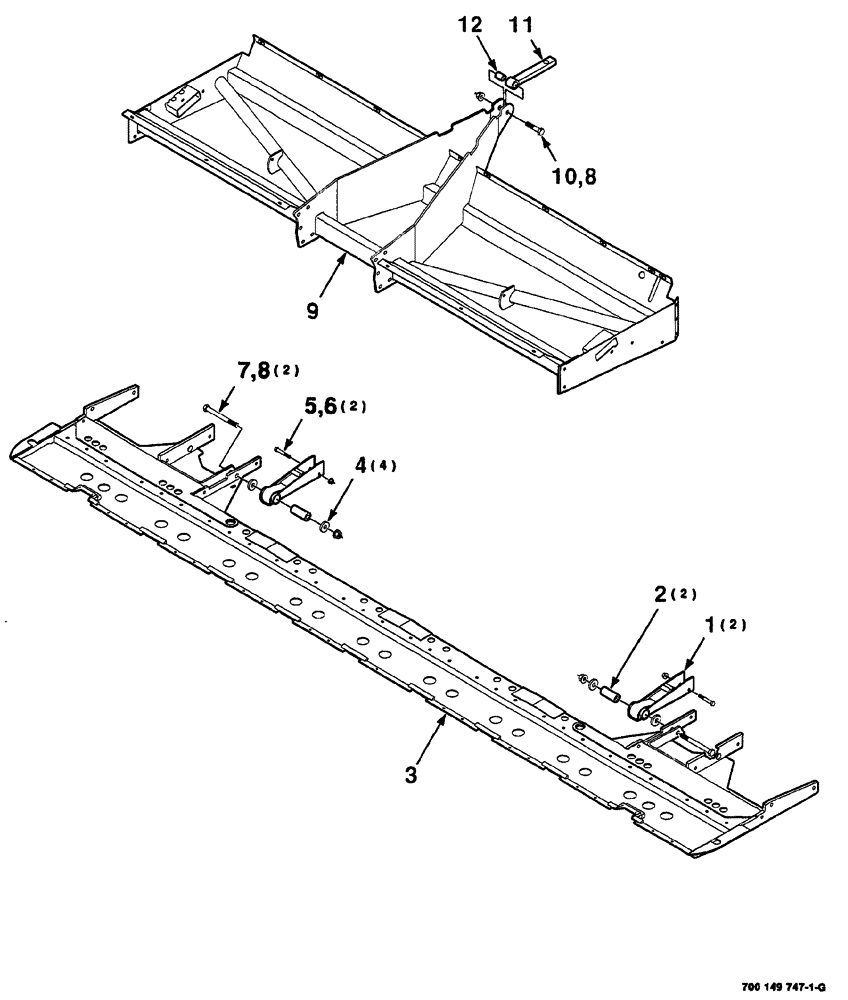

Запчасти Case IH 725 (07-002) - HEADER FRAME ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700149842

MOUNTING PARTS

WA lift arm

2шт.

2

700149829

BUSHING,19.84mm ID x 38.1mm OD x 92mm L

inner

2шт.

3

700149812

CRADLE

WA

1шт.

4

700115158

SPACER

4шт.

5

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

SCREW cap, hex, 1/2"-13 x 3-1/4"

2шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

2шт.

7

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

BOLT hex, 3/4"-10 x 7-1/2"

2шт.

8

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

3шт.

9

700149797

FRAME

WA center

1шт.

10

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

hex, 3/4"-10 x 3-1/4"

1шт.

11

700130184

ARM

WA

1шт.

12

700114925

BUSHING

BUSHING

1шт.
