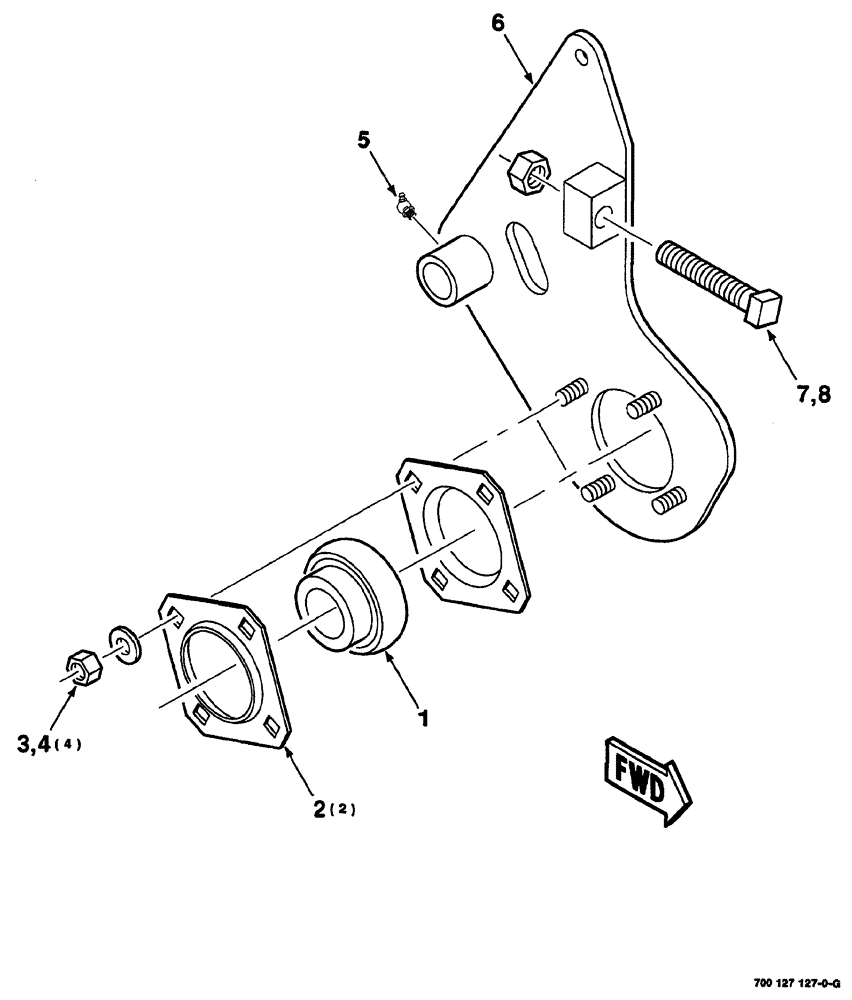

Запчасти Case IH 725 (05-010) - PIVOT ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

50328

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm

spherical

1шт.

2

1307583C1

FLANGED BEARING

bearing

2шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

4шт.

5

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK, 1/4"-28 x 45°

1шт.

6

700127121

ARM

WA right

1шт.

7

69674

SET SCREW,Sq Hd, 3/4"-10 x 4"

SCREW set, square head, cup point, 3/4"-10 x 4

1шт.

8

425-1012

NUT,3/4"-10, G5

1шт.
