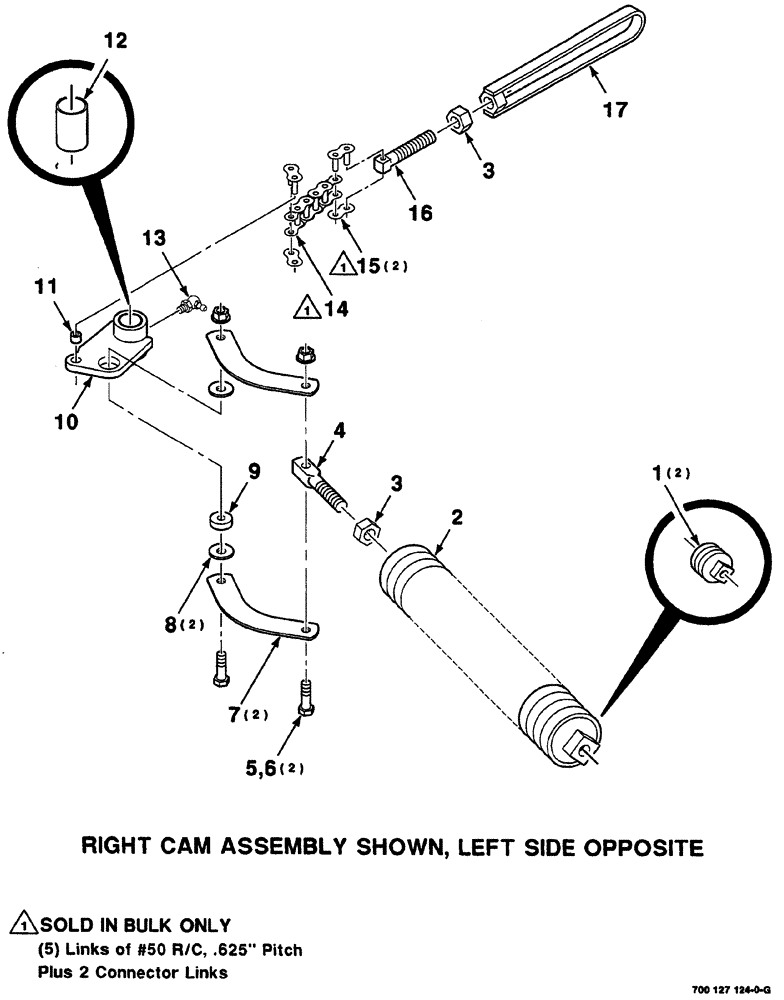

Запчасти Case IH 725 (05-006) - CAM ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

6146542

SPRING NUT

spring

2шт.

Part of Spring Assembly Ref. 2 P/N 6171060

1шт.

2

6171060

SPRING,11.25" L

ASSEMBLY, Includes: Ref. 1

1шт.

3

425-108

NUT,1/2" - 13, Gr 5

2шт.

4

700119868

STUD

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

7

700119865

LINK

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

1шт.

10

700127417

CAM

WA, Includes: Ref. 12

1шт.

11

700118104

SPACER

1шт.

12

740803

BUSHING

sleeve

1шт.

Part of Cam Ref. 10 P/N 700127417

1шт.

13

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

14

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50, 10 foot bulk

1шт.

15

47530

LINK, CONNECTING

#50

2шт.

16

700118103

SPECIAL BOLT,1/2" - 13 x 2 1/2"

draw

1шт.

17

700149980

HANGER

WA

1шт.
