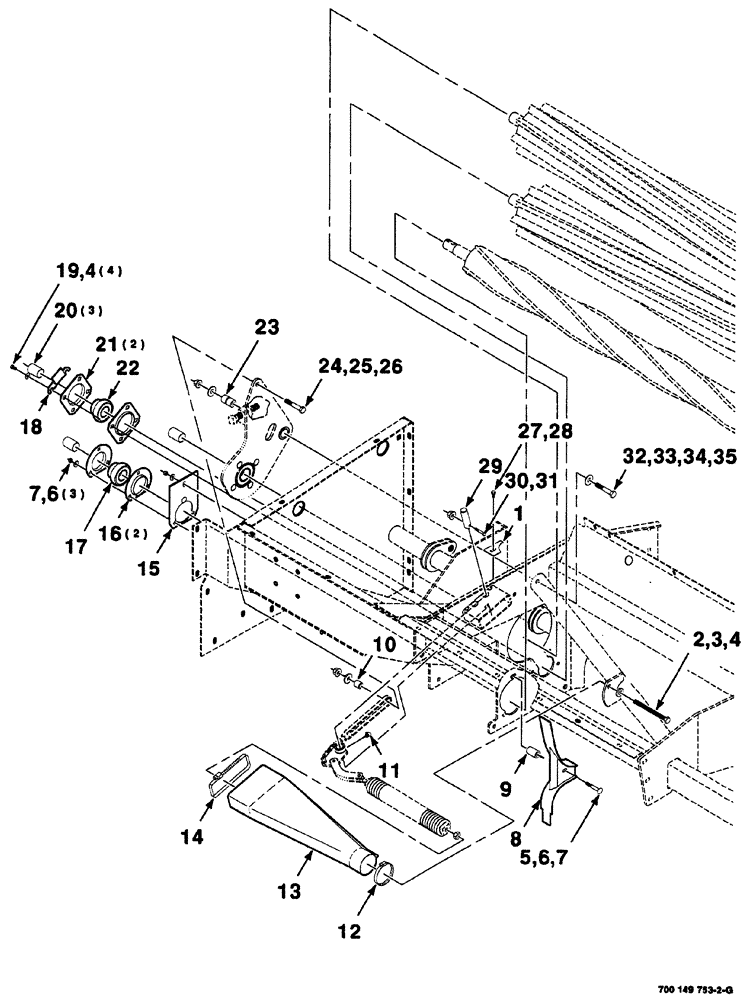

Запчасти Case IH 725 (05-004) - HAY CONDITIONER ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
700127123
LARGE PLATE
PLATE, LARGE GAUGE
1шт.
2
873513
BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd
SCREW cap, hex, full thread, 1/2"-13 x 6"
1шт.
3
425-108
NUT,1/2" - 13, Gr 5
1шт.
4
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
plain, hardened, 1/2"
5шт.
5
433-640
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5
BOLT square neck, round head, 3/8"-16 x 2-1/2"
1шт.
6
496-11041
WASHER,13/32" x 13/16" x .065", HDN
plain, hardened, 3/8"
4шт.
7
425-106
NUT,3/8"-16, Cl 5
4шт.
8
700149950
PROTECTOR
roll, right
1шт.
S/N CFH0154001 thru CFH0154299
1шт.
8
700152386
PROTECTOR
roll, right
1шт.
S/N CFH0154300 and later
1шт.
9
700133541
SPACER
plated
1шт.
10
700108790
SPACER
1шт.
11
219-93
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
1шт.
12
214-1444
HOSE CLAMP,58.6mm - 82.5mm
1шт.
13
700717784
COVER
spring, hay conditioner
1шт.
14
7720048
CLAMP
hose
1шт.
15
700149946
PLATE
WA bearing
1шт.
16
NLS
NO LONGER SERVICED
bearing
2шт.
17
611583R91
BALL BEARING
spherical
1шт.
18
700149942
FILLER
1шт.
19
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
20
700713521
COVER
3шт.
21
1307583C1
FLANGED BEARING
2шт.
22
50328
SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm
spherical
1шт.
23
6834394
BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L
1шт.
24
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
25
385625
WASHER
1шт.
26
231-5348
FLANGE NUT,Flg, 1/2"-13
lock,hex flange top, GR/G, 1/2"-13
1шт.
27
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
1шт.
28
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
29
700118107
PIN,22.23mm OD x 80.01mm L
1шт.
30
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
1шт.
31
232-5315
FLANGE NUT,Flg, 5/16"-18
lock, hex flange top, GR/G, 5/16"-18
1шт.
32
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
1шт.
34
700711165
WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk
plain, wide, hardened, 5/8"
1шт.
Выбрано товаров: 38
