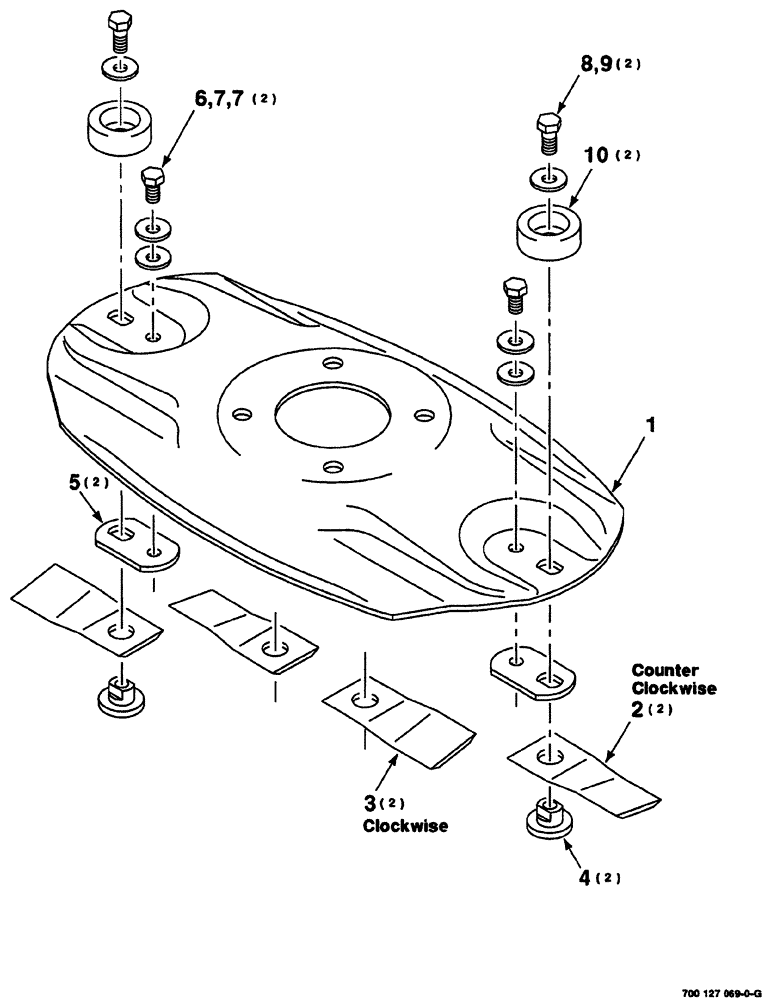

Запчасти Case IH 725 (03-014) - DISC ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700727895

DISC

1шт.

Eliminates a spacer and bolt which were used with the prior part# 700127070

1шт.

2

700713984

KNIFE

counter clockwise

2шт.

2

700712889

KNIFE

counter clockwise

2шт.

2

700711858

KNIFE

counter clockwise

2шт.

2

700715576

KNIFE

counter clockwise

2шт.

3

700713983

KNIFE

clockwise

2шт.

3

700712888

KNIFE

clockwise

2шт.

3

700711857

KNIFE

clockwise

2шт.

3

700715575

KNIFE

clockwise

2шт.

4

700127073

NUT

knife

2шт.

5

700127071

MOUNTING PARTS

knife

2шт.

6

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

Nylok, hex cap, special, 3/8"-16 x 1/2", grade 8

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

4шт.

8

700711964

BOLT,Hex, 7/16" - 14 x , Gr 8

Nylok, hex cap, special, 7/16"-14 x 1", grade 8

2шт.

9

496-21047

WASHER

plain, hardened, 7/16"

2шт.

10

700127072

SHIELD

bolt, knife

2шт.
