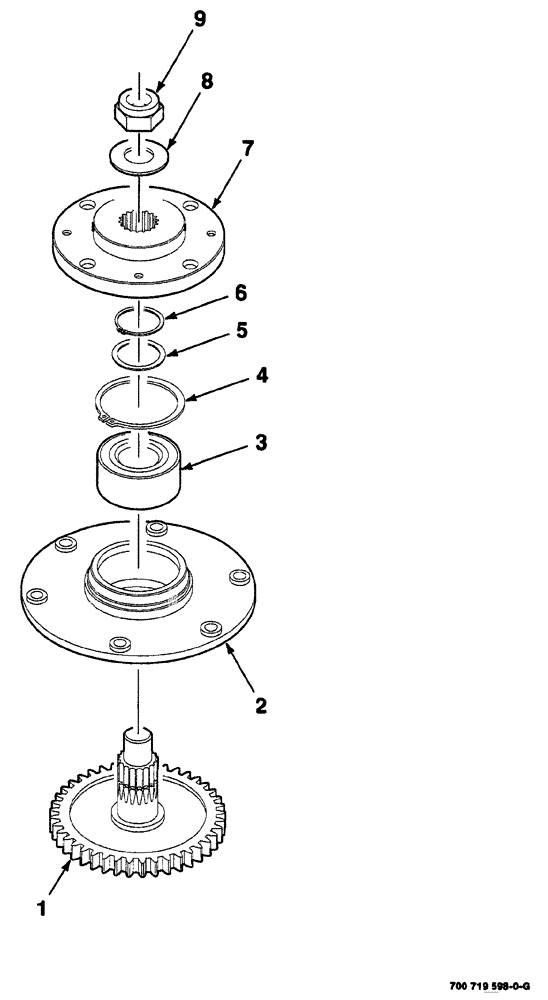

Запчасти Case IH 725 (03-008) - SPINDLE ASSEMBLY, OUTER (58) - ATTACHMENTS/HEADERS

700719598

SPINDLE

ASSEMBLY outer

1шт.

1

700713466

GEAR

inboard

1шт.

2

700718801

MOUNTING PARTS

1шт.

3

700714310

BALL BEARING,34.976 mm ID x 72.043 mm OD x 33 mm

1шт.

4

700712375

SNAP RING

retaining

1шт.

5

700718350

SHIM

1шт.

6

700713471

RING

retaining

1шт.

7

700718355

FLANGE

inboard

1шт.

8

700712409

BELLEVILLE WASHER

WASHER, Belleville

1шт.

9

700712408

LOCK NUT

M24 x 3

1шт.
