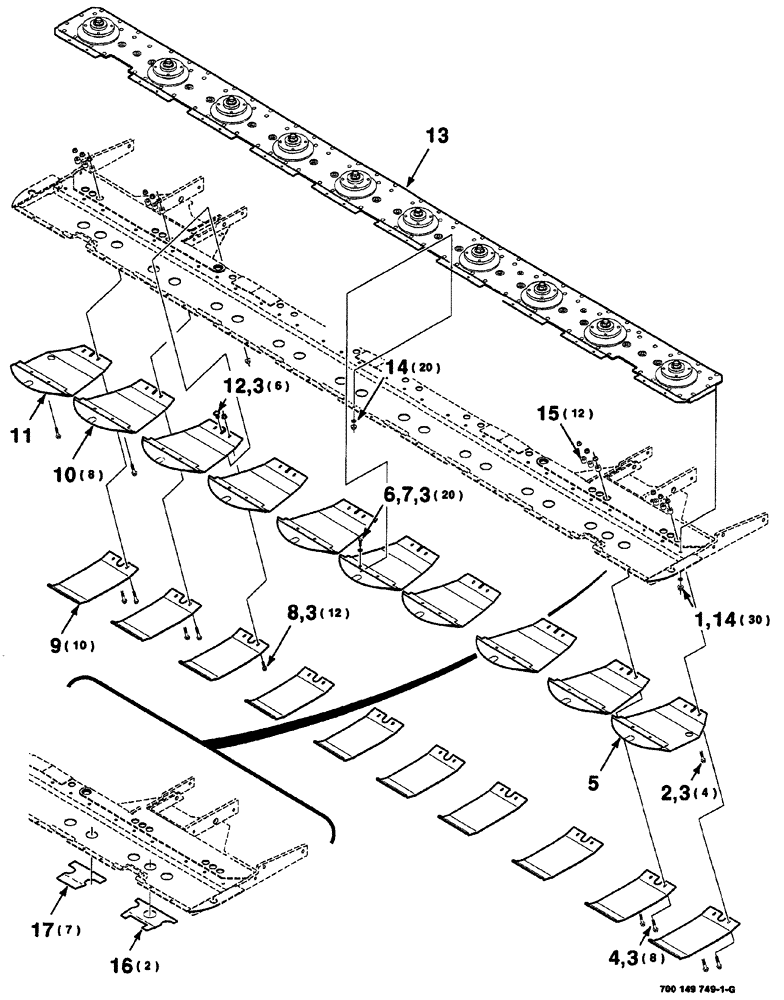

Запчасти Case IH 725 (03-002) - CUTTER BAR, ROCK GUARD AND SKID SHOE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

829-1410

NUT,M10 x 1.5, Cl 10.9

30шт.

2

700711134

SCREW

hex flange, 3/8"-16 x 1-3/4", grade 8

4шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

50шт.

4

700711132

BOLT

SCREW hex flange, 3/8"-16 x 2", grade 8

8шт.

5

700149861

GUARD

WA rock, left

1шт.

6

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

20шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

20шт.

8

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8"-16 x 1-1/4", grade 8

12шт.

9

700717701

SKID/SHOE

10шт.

10

700149858

GUARD

WA rock

8шт.

11

700149863

GUARD

WA rock, right

1шт.

12

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

13

700717697

CUTTER BAR

ASSEMBLY, see Figure 03-004

1шт.

14

700149867

SPACER

WASHER special, hardened

50шт.

15

6457782

SPACER

12шт.

16

700149827

WEAR PLATE

2шт.

17

700149828

WEAR PLATE

7шт.
