(02-022) - U-JOINT ASSEMBLY, UPPER HAY CONDITIONER DRIVE

Запчасти Case IH 725 (02-022) - U-JOINT ASSEMBLY, UPPER HAY CONDITIONER DRIVE (58) - ATTACHMENTS/HEADERS

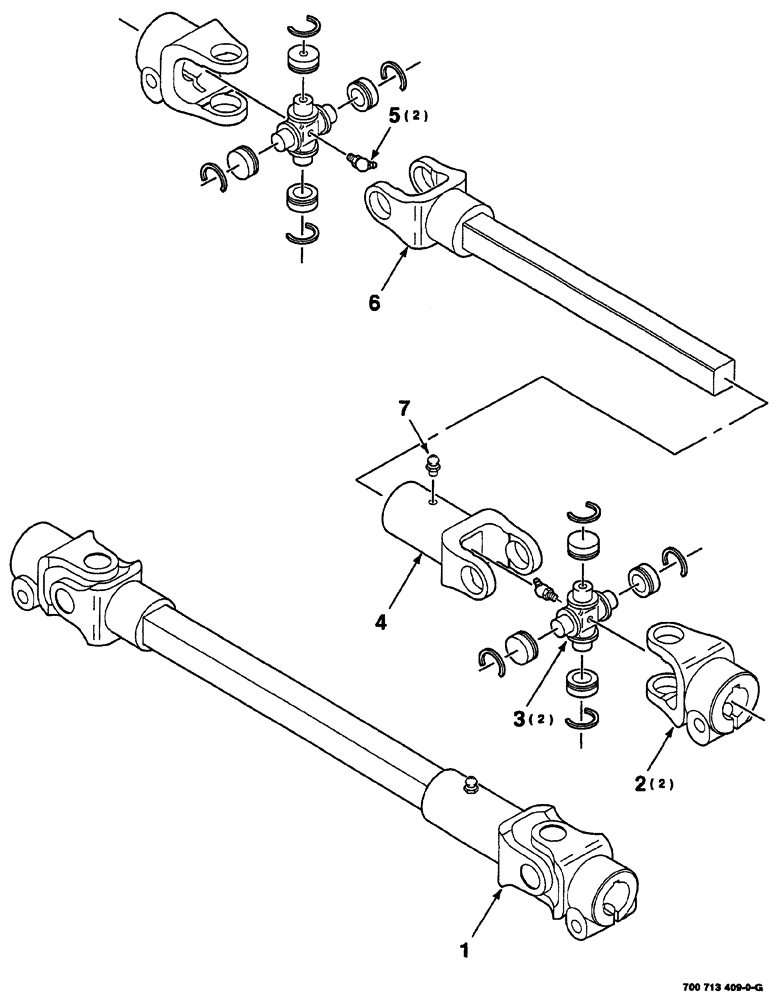

Схема запчастей Case IH 725 - (02-022) - U-JOINT ASSEMBLY, UPPER HAY CONDITIONER DRIVE (58) - ATTACHMENTS/HEADERS
1
5
4
2
7
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700705407

DRIVE SHAFT

ASSEMBLY, U, complete

1шт.

2

757716

CLAMP

YOKE

2шт.

3

700711843

FLEXIBLE JOINT

KIT cross and bearing

2шт.

4

700704955

YOKE

YOKE slip

1шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK, 1/8"-27 x 65°

2шт.

6

700704954

YOKE

YOKE and SHAFT

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

Выбрано товаров: 0
