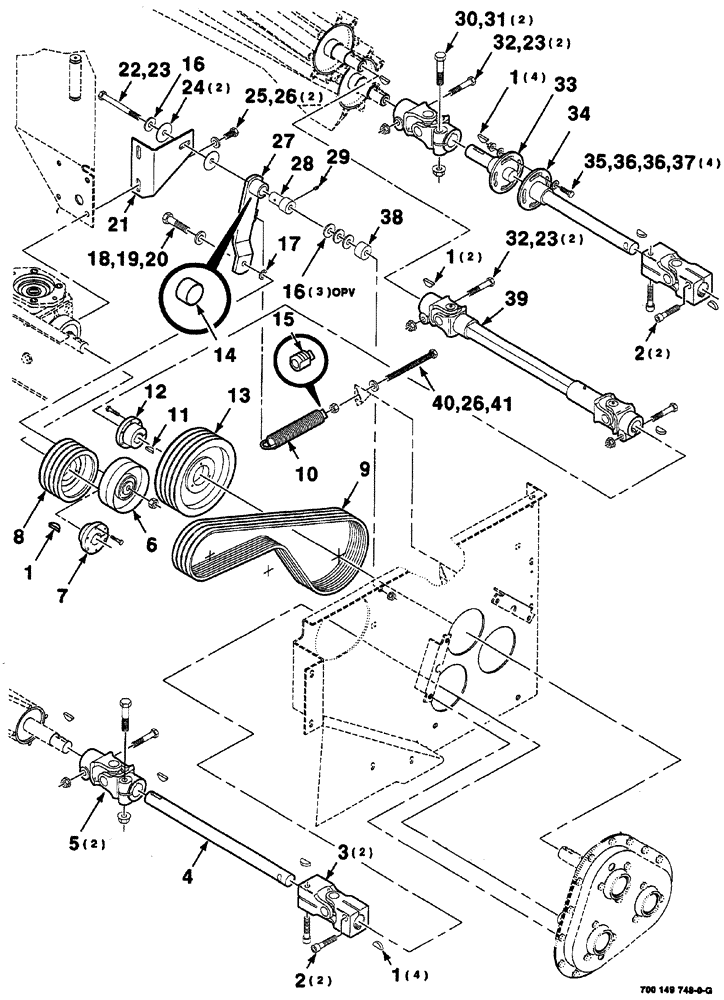

Запчасти Case IH 725 (02-014) - HAY CONDITIONER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

11шт.

2

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

cap, socket head, hex, SPL, 3/8"-16 x 1-3/4"

4шт.

3

700713437

JOINT

ASSEMBLY, U, see Figure 02-018

2шт.

4

700149855

SHAFT

1шт.

5

700715721

UNIVERSAL JOINT

ASSEMBLY, see Figure 02-020

2шт.

6

51200295

FRONT IDLER

flat

1шт.

7

700717698

BUSHING

tapered

1шт.

8

700149852

SHEAVE

driver

1шт.

9

700717699

SET OF BELTS,1600.20 mm L

V-Belt

1шт.

10

6189971

SPRING

ASSEMBLY, Includes: Ref. 15

1шт.

11

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

7747280

ASSEMBLY

tapered

1шт.

13

700149851

SHEAVE

driven

1шт.

14

740217

BUSHING

Oilite

1шт.

Part of Arm Assembly Ref. 27 P/N 700130247

1шт.

15

6189989

PLUG

spring

1шт.

Part of Spring Assembly Ref. 10 P/N 6189971

1шт.

16

700711557

WASHER

plain, wide, hardened, 1/2"

4шт.

17

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

machinery, narrow rim, 5/8" x 18 gauge

1шт.

18

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

19

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

20

425-1010

NUT,5/8"-11, G5

1шт.

21

700149857

SUPPORT

arm, idler

1шт.

22

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

SCREW cap, hex, 1/2"-13 x 4-1/2"

1шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

24

700712881

WASHER

fender, 1/2"

2шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

26

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

3шт.

27

700130247

ARM

ASSEMBLY, Includes: Ref. 14

1шт.

28

700130238

BUSHING

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

30

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8"-11 x 2-3/4"

2шт.

31

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

32

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW cap, hex, 1/2"-13 x 2-3/4"

4шт.

33

700133248

SHAFT

WA

1шт.

34

700149853

SHAFT

WA

1шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

36

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

8шт.

37

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

4шт.

38

6235071

BUSHING

SPACER

1шт.

39

700705407

DRIVE SHAFT

ASSEMBLY, U, see Figure 02-022

1шт.

40

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

SCREW cap, hex, full thread, 1/2"-13 x 6"

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

1шт.
