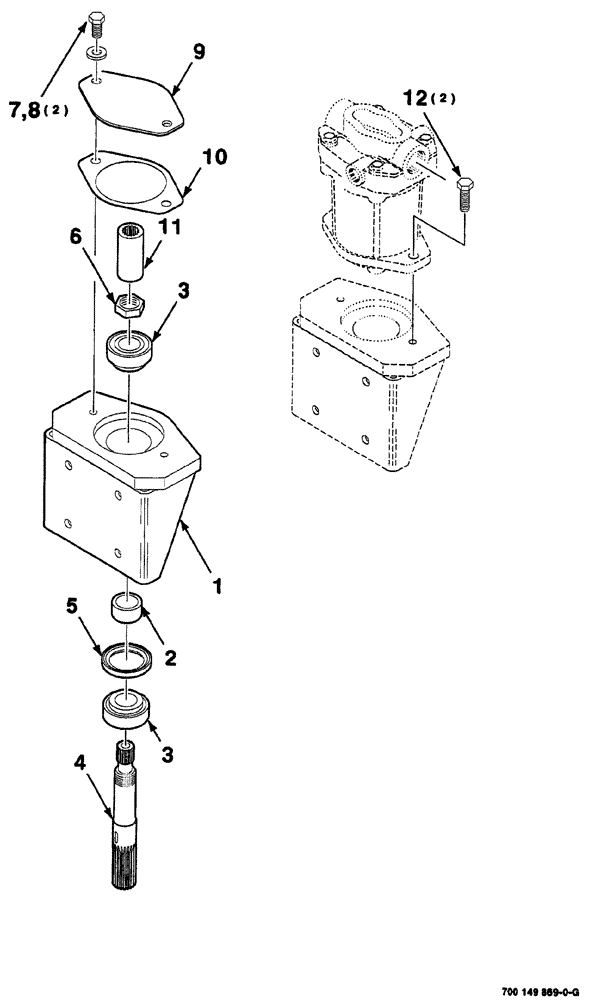

Запчасти Case IH 725 (02-012) - HOUSING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700149870

HOUSING

WA

1шт.

2

700149878

SPACER

1шт.

3

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

cylindrical

2шт.

4

700149876

SHAFT

drive, disc

1шт.

5

H756957

SEAL

oil

1шт.

6

700149877

SPECIAL NUT

special

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

2шт.

9

700130960

COVER

1шт.

10

700714841

GASKET

1шт.

11

700149879

COUPLING

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
