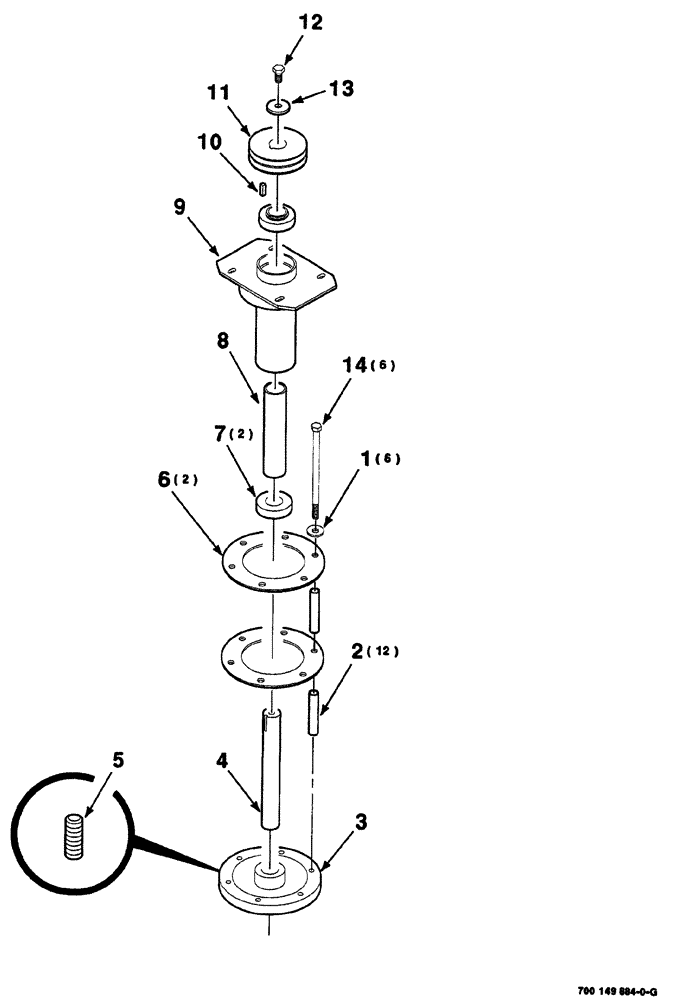

Запчасти Case IH 725 (02-010) - HEADER DRIVE CAGE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

6шт.

2

6559314

SPACER

SPACER

12шт.

3

700149888

HUB

Includes: Ref. 5

1шт.

4

700149889

SHAFT

1шт.

5

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

NP, 3/8"-16 x 3/4"

1шт.

Part of Hub Ref. 3 P/N 700149888

1шт.

6

700127061

RING

cage

2шт.

7

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

cylindrical

2шт.

8

700130615

TUBE

spacer

1шт.

9

700149885

SUPPORT

WA

1шт.

10

761239

KEY

5/16" x 15/16"

1шт.

11

700149890

SHEAVE

1шт.

12

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

hex, 1/2"-20 x 1"

1шт.

13

282269

WASHER

WASHER

1шт.

14

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

BOLT hex, 1/2"-13 x 9"

6шт.
