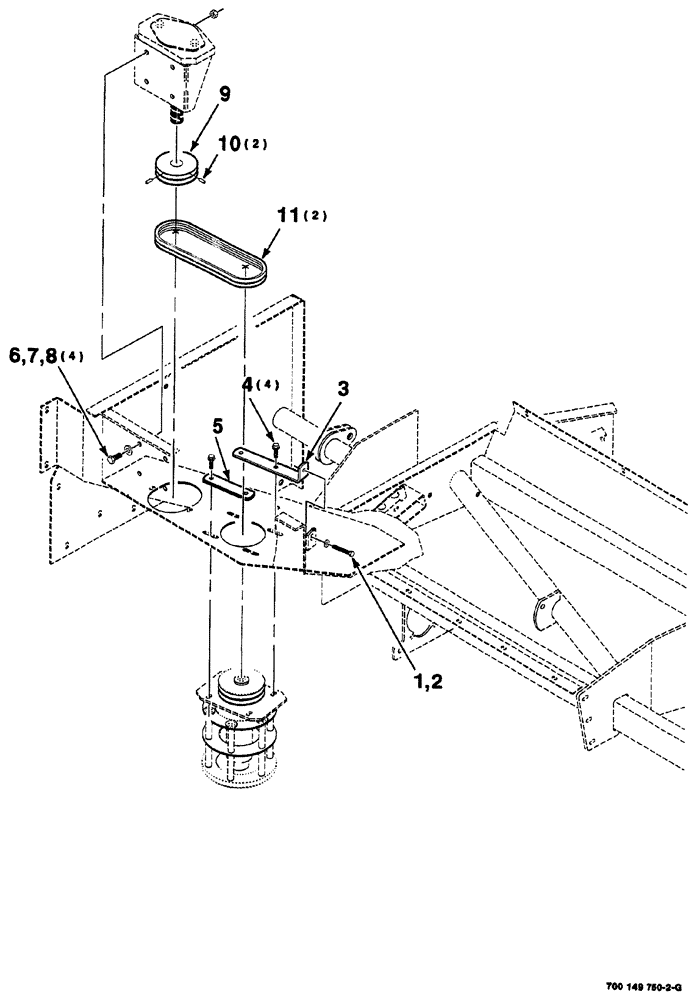

Запчасти Case IH 725 (02-004) - HEADER DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

3

700149881

ANGLE

ASSEMBLY

1шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

flange, hex, 3/8"-16 x 1-1/4", grade 8

4шт.

5

700149982

STRAP

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

4шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, flange top, hex, GR/G, 1/2"-13

4шт.

9

700130652

SHEAVE

1шт.

10

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

SCREW set, socket, hex, half dog point, NP, 5/16" x 3/4"

2шт.

11

700714715

SET OF BELTS,891.50 mm L

2 Matched, V-Belt

2шт.
