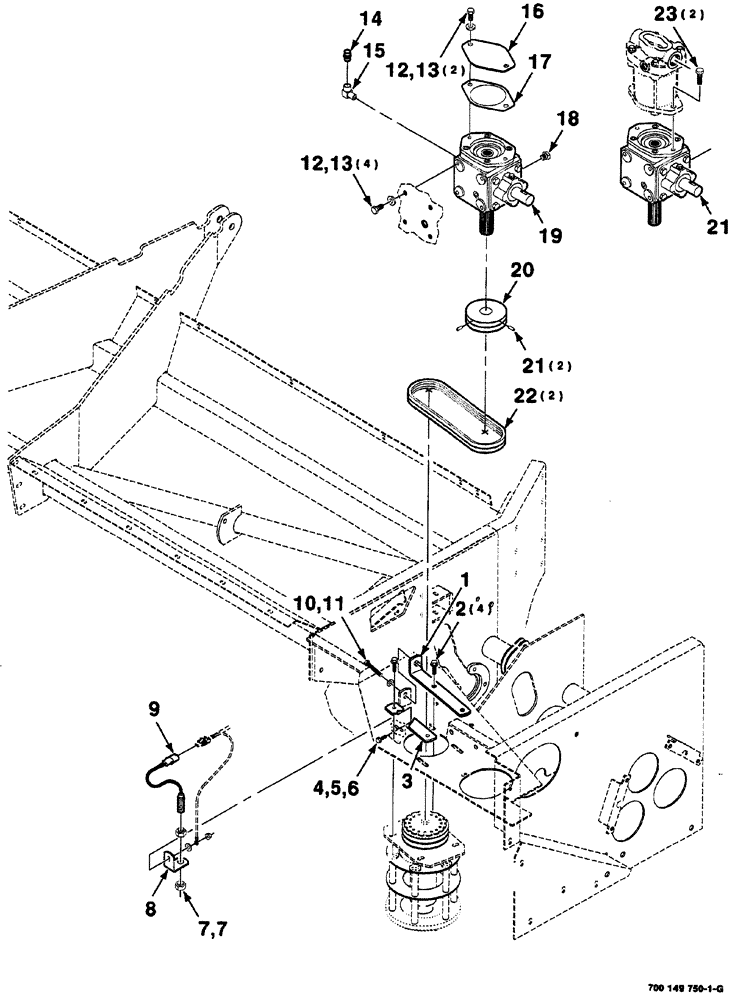

Запчасти Case IH 725 (02-002) - HEADER DRIVE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700149881

ANGLE

ASSEMBLY

1шт.

2

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8"-16 x 1-1/4", grade 8

4шт.

3

700149982

STRAP

1шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

1шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

1шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

HJN, 3/4"-16, grade 2

2шт.

8

700149892

ANGLE

sensor

1шт.

9

700706398

SENSOR

PTO

1шт.

10

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

6шт.

14

700712886

BREATHER

1шт.

15

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

90°

1шт.

16

700130960

COVER

1шт.

17

700714841

GASKET

1шт.

18

700714032

GAUGE

view

1шт.

19

700717706

GEARBOX ASSY

see Figure 02-006

1шт.

20

700130652

SHEAVE

1шт.

21

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

SCREW set, hex socket, half dog point, NP, 5/16" x 3/4"

2шт.

22

700714715

SET OF BELTS,891.50 mm L

2 Matched, V-Belt

2шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
