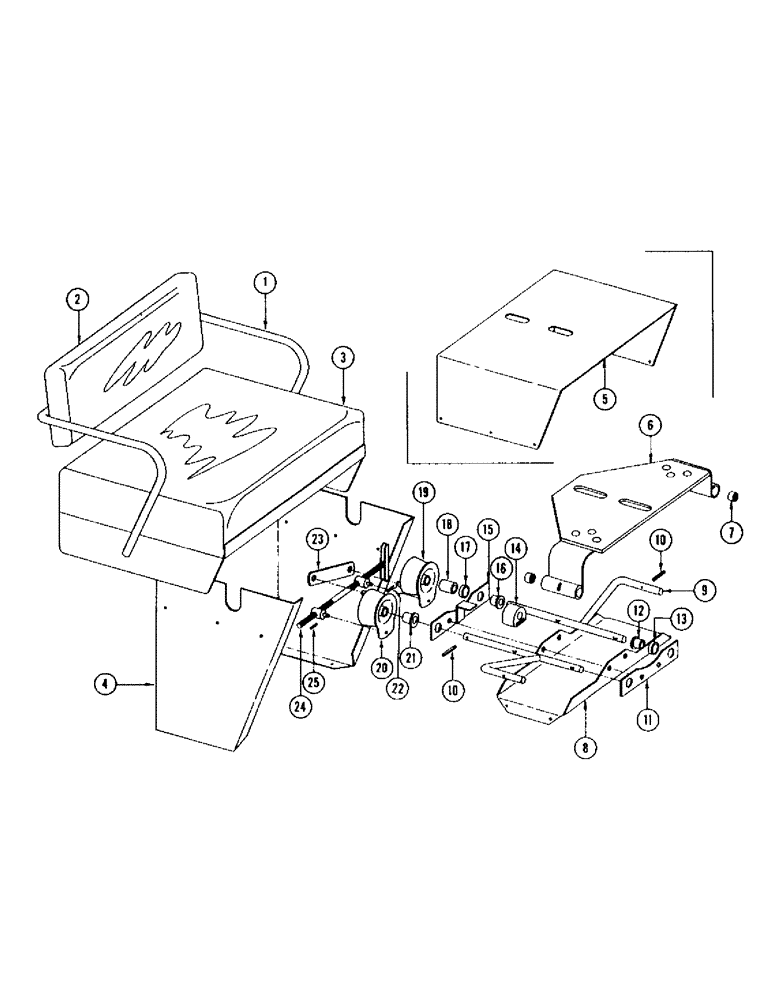

Запчасти Case IH 675 (52) - OPERATORS SEAT / EASY RIDE SEAT ATTACHMENT / SEAT BELT KIT

1

FH339507

FRAME

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

2

FHO45161

CUSHION - back rest

1шт.

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

FH752204

CUSHION - seat

1шт.

4

F35012

POST

1шт.

5

FH289736

ADAPTER - seat

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

6

F94725

SUPPORT - suspension

1шт.

7

E3330S

BUSHING

4шт.

8

FH268573

ADAPTER - seat

1шт.

9

F94728

SHAFT - spring, R.H. & L.H.

2шт.

10

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

4шт.

11

F94727

TIE BAR - front

1шт.

12

G46002

FLANGED BEARING

BEARING - flanged

2шт.

13

A26462

WASHER

- front, spring shaft

4шт.

14

A30644

BUMPER

- rubber, rear tie bar

1шт.

15

F94726

TIE BAR - rear

1шт.

16

G46002

FLANGED BEARING

BEARING - flanged

2шт.

17

195-41

WASHER,5/8"

Rear, spring shaft 5/8"

4шт.

18

10953K

SPACER - spring shaft

2шт.

19

G45003

SPRING SEAT

SPRING - rubber, L.H.

1шт.

20

G45002

SPRING SEAT

SPRING - rubber, R.H.

1шт.

21

G46002

FLANGED BEARING

BEARING - flanged

2шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

23

G45005

LINK - stabilizing

1шт.

24

F53363

STUD - adjusting

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

F96463M

SEAT BELT - complete

1шт.
