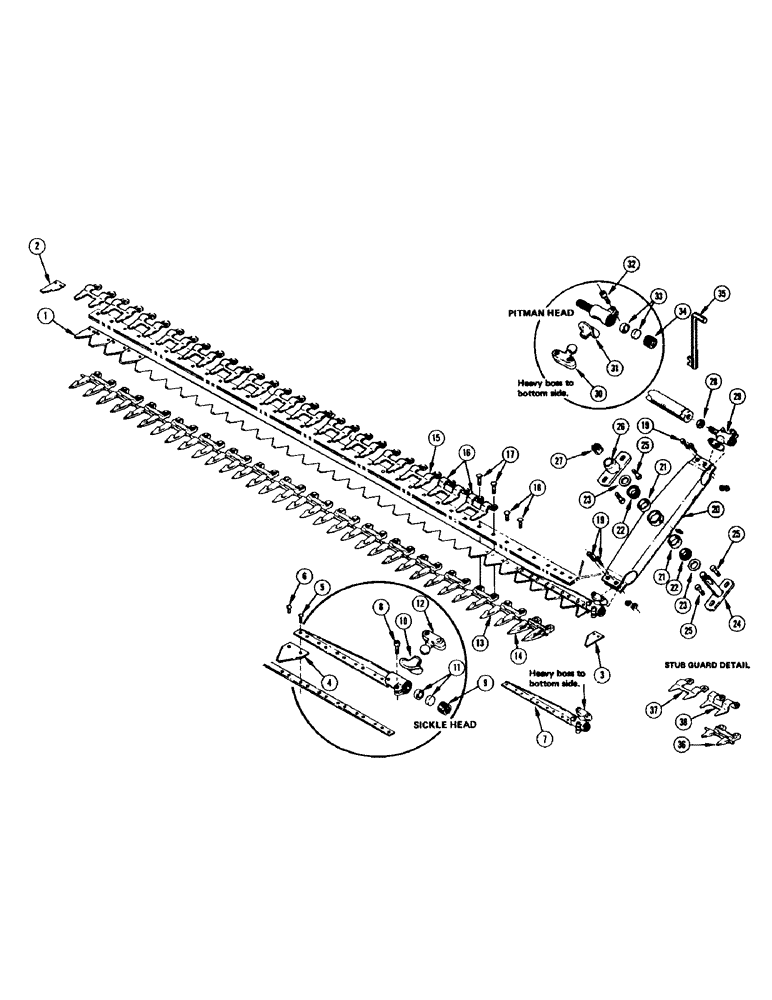

Запчасти Case IH 675 (38) - SICKLE AND SWAYBAR ASSEMBLY, STUBGUARDS

1

F36660

SICKLE WITH HEAD - top serrated

1шт.

2

TF59129

CATALOG

SECTION - HALF - outer end (smooth)

1шт.

3

F53353

KNIFE SECTION

SECTION - HALF - head end (smooth)

1шт.

4

F59106

KNIFE SECTION

SECTION - top serrated, chrome (25 per box)

37шт.

5

T13492

RIVET

- #5-1/2 x 7/8" oval hd. (1 lb. pkg.)

11шт.

6

T13489

RIVET

- #5-1/2 x 9/16" oval head (1 lb. pkg.)

67шт.

7

F94924

HEAD - sickle

1шт.

8

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket hd. cap

1шт.

9

FH264143

PLUG

1шт.

10

F23106

COVER

CAP - dust

1шт.

11

FH720458

BEARING

2шт.

12

FH338228

BALL

BLOCK - stud

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 20 x 90"

1шт.

F36680

SICKLE - smooth sections

1шт.

T13009

KNIFE SECTION

SECTION - smooth, chrome (25 per box) Also includes ref. #2, 3, 5, 6 and 7

37шт.

13

FHO49270

GUARD

- double tie

18шт.

14

FHO49239

GUARD

- double

1шт.

15

F35005

PLATE

CLIP - hold down

16шт.

16

F35006

CLIP - hold down, hi clearance

2шт.

17

111-402

CARRIAGE BOLT

BOLT - 7/16" x 1-1/2" rhd. sq. nk.

36шт.

18

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

38шт.

19

FHO26450

BOLT

4шт.

20

FH377747

SWAYBAR

1шт.

21

FHO50104

CUP

2шт.

22

FHO50112

BEARING

CONE

2шт.

23

FH263764

WASHER

2шт.

24

FH123216

PIN

- swaybar

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

95-8

WASHER,1/2"

flat 1/2"

8шт.

26

F35202

PLATE

- reinforcement

1шт.

27

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. slotted, hex.

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

28

FHO74526

NUT - 7/8" - 18 N.F. hex. jam.

1шт.

29

FH383588

HEAD

- Pitman

1шт.

30

FH338228

BALL

BLOCK - stud

1шт.

31

F23106

COVER

CAP - dust

1шт.

32

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket head cap

1шт.

33

FH720458

BEARING

2шт.

34

FH264143

PLUG

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

35

FH380360

OPEN END WRENCH

WRENCH

1шт.

36

F36784

GUARD

- stub double tie (25 per box)

1шт.

37

F36785

THE PLATE - stub, regular (25 per box)

1шт.

38

F36786

TIE PLATE - stub, hi-clearance

2шт.
