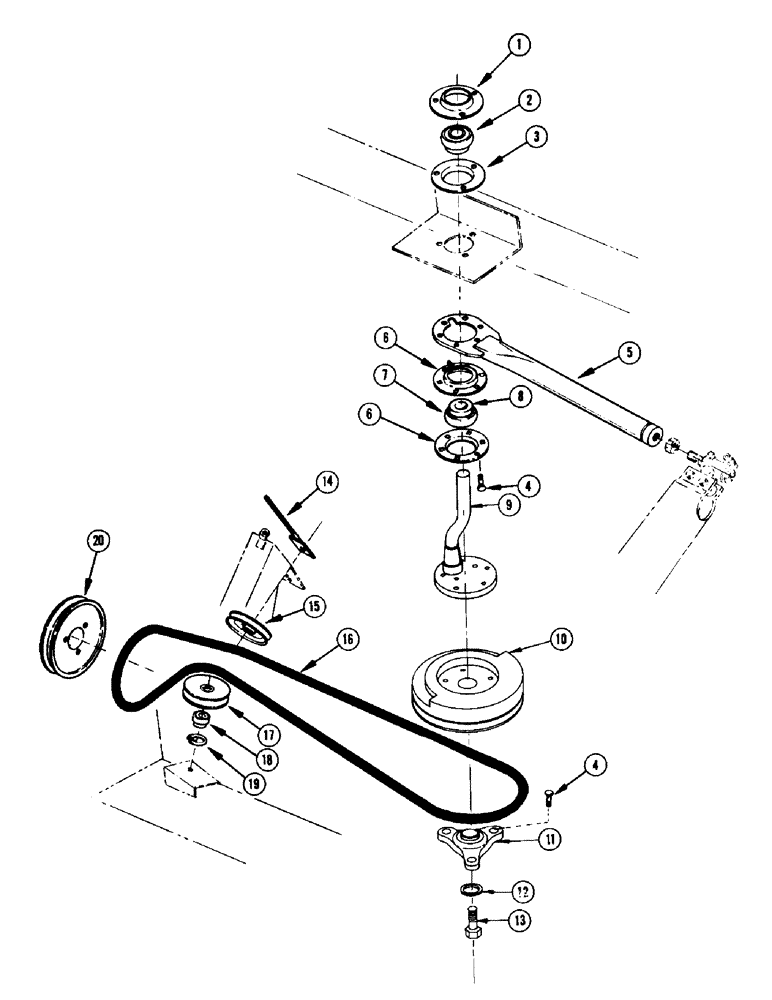

Запчасти Case IH 675 (36) - SICKLE DRIVE AND PITMAN

1

FH711424

FLANGE

1шт.

2

FH711432

BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

3

FH711481

FLANGE

1шт.

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

4

111-366

BOLT,Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

- 3/8" x 1-1/4" rhd. sht. sq. nk. gr. 5

9шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

5

F36665

PITMAN

1шт.

6

FH712612

FLANGE

2шт.

7

FH710038

BEARING

1шт.

8

TD4510

COLLAR

1шт.

9

FH411520

CRANK - Pitman

1шт.

10

FH411587

SHEAVE - Pitman crank

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

92-6

LOCK WASHER,3/8"

5шт.

11

FH711796

BEARING

- Pitman

1шт.

12

FH411579

WASHER

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

14

FH382077

DRAWBOLT

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

FHO54833

FRONT IDLER

V-IDLER

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

16

FHO57539

BELT

Round Section

1шт.

17

FH384982

IDLER

1шт.

18

T32178

BALL BEARING,0.515" ID x 1.5748" OD x 0.72"

BEARING

1шт.

19

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

20

FH320507

SHEAVE

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.
