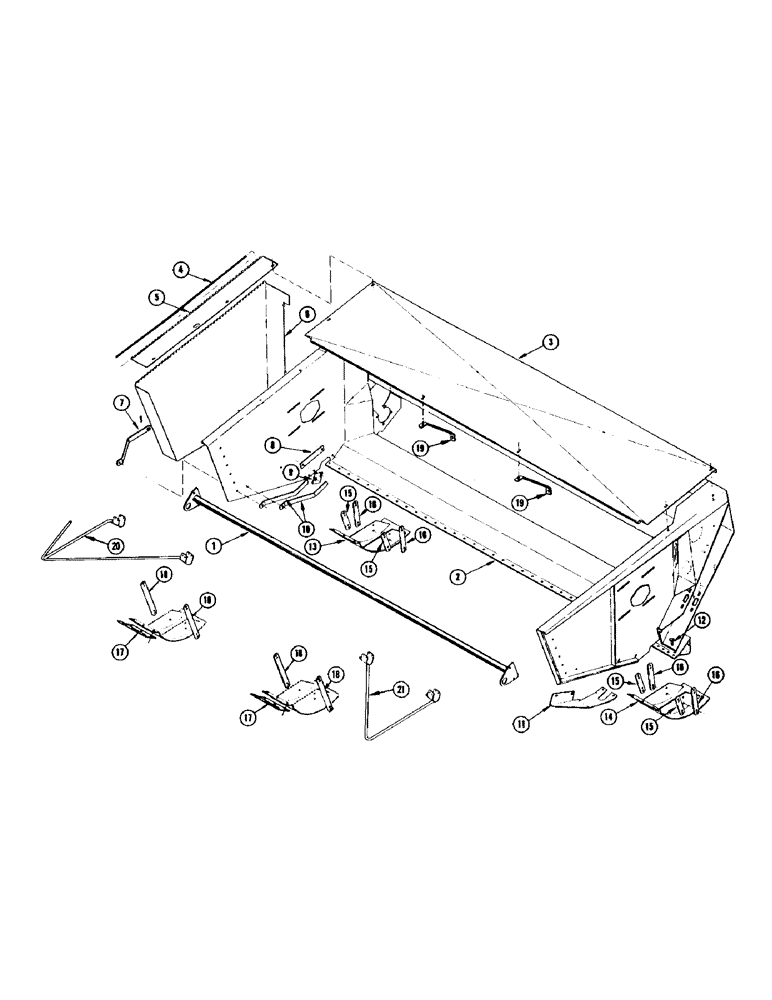

Запчасти Case IH 675 (28) - HEADER FRAME AND SKIDS

1

FH453712

LEAN BAR

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

2

F36625

HEADER

1шт.

3

F36648

SHIELD - top

1шт.

4

FH389833

PIN - hinge

1шт.

5

FH493379

HINGE

1шт.

6

FH486704

SHIELD - side

1шт.

FH337931

CLIP - shield

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

7

FH384800

DEFLECTOR

1шт.

95-6

WASHER,3/8"

- flat 3/8"

1шт.

FHO62372

PIN - cotter

1шт.

8

FH377184

STRAP - cover

1шт.

9

FH378240

COVER - guard

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

10

FH262626

STRAP

- deflector

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

11

FH384958

SHOE - divider

1шт.

12

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk.

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

13

FH381533

SHOE - R.H. skid

1шт.

14

FH381541

SHOE - L.H. skid

1шт.

15

FH381640

STRAP - short

4шт.

16

FH384180

STRAP - long

4шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

92-6

LOCK WASHER,3/8"

8шт.

17

FH384719

EXTENSION - (Skid shoe extension kit)

2шт.

18

FH384701

STRAP - (Skid shoe extension kit)

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

19

F36712

BRACE - cover

2шт.

20

F36079

DIVIDER - R.H. (Crop divider kit)

1шт.

21

F36078

DIVIDER

- L.H. (Crop divider kit)

1шт.

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.
