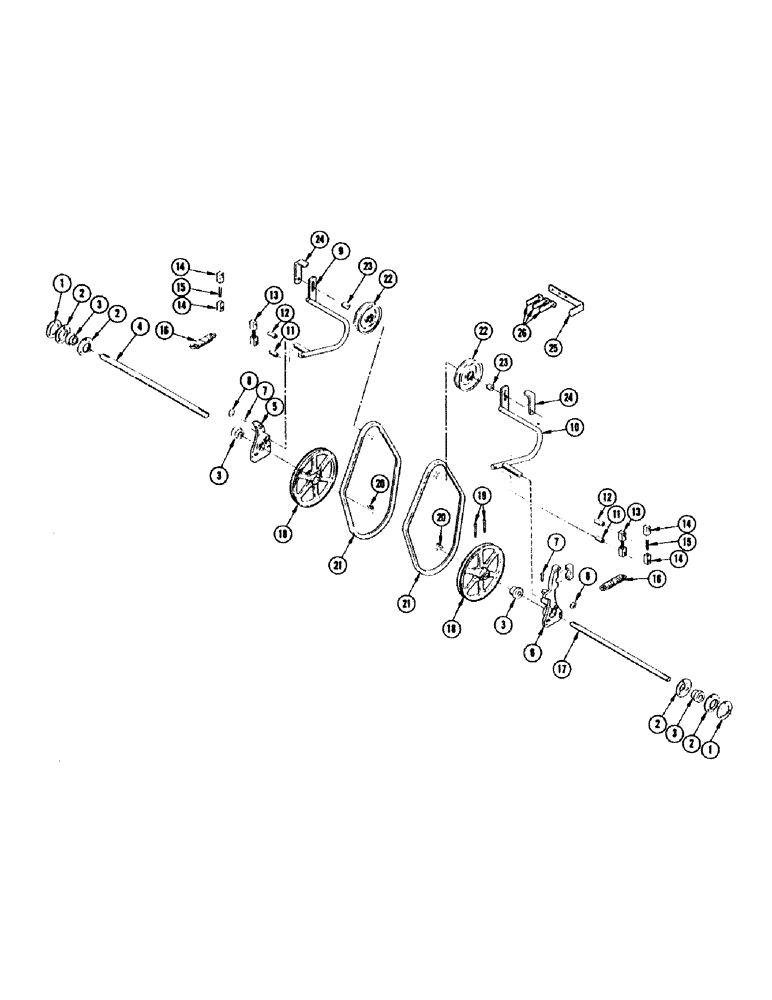

Запчасти Case IH 655 (12) - SHIFTER

1

FHO44073

GASKET

2шт.

2

F62225

FLANGE

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

3

F51085

BEARING

4шт.

F62226

COLLAR

4шт.

4

FH487074

SHAFT - R.H. drive

1шт.

5

FH246249

BRACKET - shifter pulley mounting R.H.

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

2шт.

6

FH246215

BRACKET - shifter pulley mounting L.H. with cap

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" x 90 degrees sht. thd.

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

7

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

8

F41695

WASHER

BUSHING - machine 1" x 10 ga.

2шт.

9

FH117176

ARM - R.H. shifter (Order 1 - FH315861 and FH312140)

1шт.

10

FH117127

ARM - L.H. shifter (Order 1 - FH315853 and FH312140)

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

11

FHO45039

SPACER - 1-9/16"

2шт.

12

FHO45021

SPACER - 1-3/16"

2шт.

13

FH117036

LINK - control

2шт.

14

FH117085

LINK END

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

2шт.

15

NSS

NOT SOLD SEPARAT

STUD

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex. jam

2шт.

14-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.F. hex.

2шт.

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

4шт.

95-6

WASHER,3/8"

- flat 3/8"

8шт.

16

FHO58859

SPRING

2шт.

17

FH116137

SHAFT - L.H. drive

1шт.

18

FH222653

SHEAVE

2шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

2шт.

19

61-664

SCREW - 3/8" x 4" hex. socket hd. cap

4шт.

20

T25070

KEY

2шт.

21

FHO56325

BELT

- shifter

2шт.

22

FHO53538

PULLEY

IDLER

2шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

23

FH159624

SPACER

2шт.

24

FH121749

GUIDE - belt

2шт.

25

FH122754

BRACKET - guide mtg.

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

26

FH132647

GUIDE - belt

3шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

3шт.
