Запчасти Case IH 655 (10) - SHIFTER, BRAKE AND STEERING

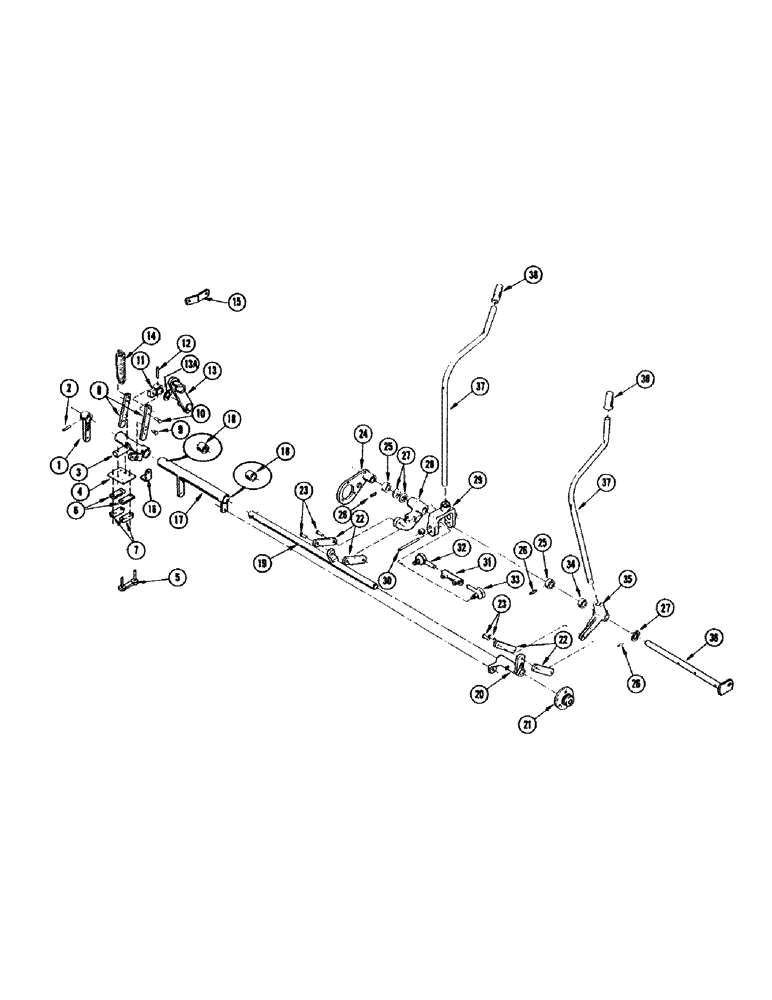

Схема запчастей Case IH 655 - (10) - SHIFTER, BRAKE AND STEERING

Артикул

Название

Примечание

Количество

1

F2433

ARM

LEVER - R.H. steering

1шт.

2

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

3

FH246470

SHOE - brake

1шт.

4

FH246512

SHOE

1шт.

5

FH488296

U-BOLT

1шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. Gripco Lock

2шт.

171-104

SCREW,Flat Hd, 3/16" x 1 1/4"

- 3/16" x 1-1/4" flt. hd. mach.

4шт.

6

FH246520

LINING - flat

2шт.

7

FH246538

LINING - "V"

2шт.

8

FH122697

LINK - brake

2шт.

9

FHO63586

PIN - clevis 3/8" x 1-1/8"

1шт.

10

FHO63578

X

PIN - clevis 3/8" x 1"

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

11

FH121442

ARM

1шт.

12

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

13

FH134726

PEDAL

1шт.

13a

FHO52522

BUSHING - 1-1/8" x 10 ga. mach.

1шт.

14

FHO58115

SPRING

1шт.

15

FH122705

CLIP - spring holder

1шт.

16

FH253120

STOP

1шт.

17

FH246587

TUBE - L.H. steering lever

1шт.

18

F53045

BUSHING

2шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 90 degree sht. thrd.

1шт.

19

FH246637

SHAFT - R.H. steering lever

1шт.

20

FH295160

TUBE - coupler, L.H. steering lever

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

21

B16267

BEARING, BALL

BEARING

1шт.

22

FH312579

LINK - lever

4шт.

23

FHO63586

PIN - clevis 3/8" - 1-1/8"

4шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

24

FH122135

PLATE - reinforcement

1шт.

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - 1/2" x 1" sq. hd. set

1шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" rhd. sq. nk.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

25

FH159368

COLLAR

2шт.

26

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

3шт.

27

FHO52209

BUSHING - mach. 1" x 18 ga.

1шт.

F41695

WASHER

BUSHING - mach. 1" x 10 ga.

1шт.

28

F2438

ARM - steering hinge rocker

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 45 degrees

1шт.

29

F2437

FORK - steering

1шт.

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - 5/16" x 1/2" socker hd. set

1шт.

30

FH124263

PIN - rocker arm hinge

1шт.

31

FHO41061

COUPLER

1шт.

32

FHO41053

END - tie rod, R.H.

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 45 degree

1шт.

33

FHO41046

END - tie rod, L.H.

1шт.

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4" x 1/4" socket hd. set

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

34

FHO52373

COLLAR

1шт.

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set 5/16" x 1/2" socket hd. set

1шт.

35

F2441

ARM - steering rocker

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

36

FH407197

SHAFT - rocker arm mounting

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

37

FH312637

LEVER - control

2шт.

25-1514

JAM NUT,Jam, 7/8"-14, G5

- 7/8" N.F. hex. jam

2шт.

38

FHO27086

X

GRIP - control lever

2шт.

Выбрано товаров: 62
