Запчасти Case IH 655 (08) - TAIL WHEEL AND FRAME

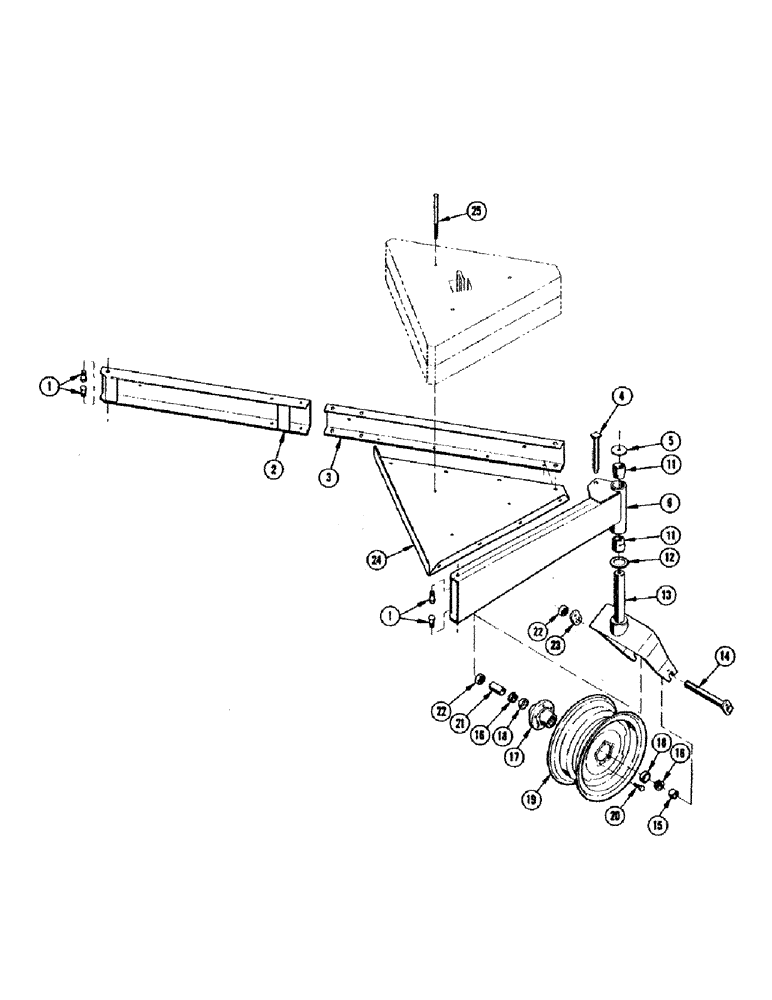

Схема запчастей Case IH 655 - (08) - TAIL WHEEL AND FRAME

Артикул

Название

Примечание

Количество

1

FHO66217

BOLT - tapered

4шт.

25-1014

NUT,7/8"-9, G5

4шт.

2

FH487108

CHANNEL - tail, R.H. front

1шт.

3

FH487124

CHANNEL - tail, R.H. rear

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

5шт.

129-107

NUT,5/8"-11, G5

5шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

4

FH117275

PIN - tail

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

5

FH134668

CAP

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

FH487140

BEAM - tail box, L.H.

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

2шт.

11

FH337659

BUSHING

2шт.

12

FH134676

SHIM - wear

1шт.

13

FH487991

FORK

1шт.

14

FH305565

AXLE

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

FH487058

SPACER

1шт.

16

FHO51805

CONE

- bearing

2шт.

17

FH488270

HUB

1шт.

18

FHO50104

CUP

- bearing

2шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 29 x 45 degrees

1шт.

19

FHO26278

WHEEL - (For 6.00 x 12 tire)

1шт.

20

FHO26187

BOLT - wheel lub

5шт.

21

FH487066

SPACER

1шт.

22

129-170

JAM NUT,Jam, 1"-14, G5

2шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

23

FH305581

CLIP

1шт.

24

FH413468

PAN - weight

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

195-104

WASHER,3/8"

- flat 3/8"

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

25

13-8152

BOLT,Hex, 1/2" - 13 x 9-1/2", Gr 5

- 1/2" x 9-1/2"

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

195-106

WASHER,1/2"

- flat 1/2"

6шт.

Выбрано товаров: 41
