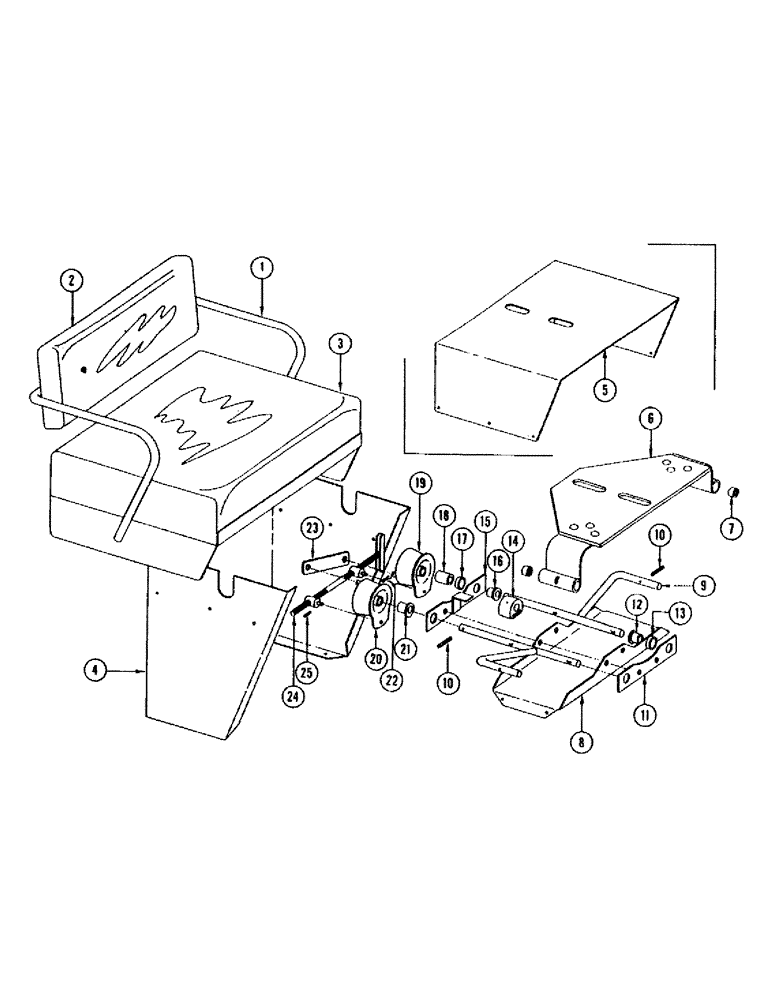

Запчасти Case IH 655 (52) - OPERATORS SEAT

1

FH339507

FRAME

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

2

FHO45161

CUSHION - back rest

1шт.

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

FH752204

CUSHION - seat

1шт.

4

FH495283

POST - seat (Before No. 8352501)

1шт.

4

F35012

POST - (No. 8352501 and after) (See page 4)

1шт.

5

FH289736

ADAPTER - seat

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

6

F94725

SUPPORT - suspension EASY RIDE SEAT ATTACHMENT

1шт.

7

E3330S

BUSHING EASY RIDE SEAT ATTACHMENT

4шт.

8

FH268573

ADAPTER - seat EASY RIDE SEAT ATTACHMENT

1шт.

9

F94728

SHAFT - spring, R.H. & L.H. EASY RIDE SEAT ATTACHMENT

2шт.

10

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Easy ride seat attachment 1/4" x 1 1/4", Slotted

4шт.

11

F94727

TIE BAR - front EASY RIDE SEAT ATTACHMENT

1шт.

12

G46002

FLANGED BEARING

BEARING - flanged EASY RIDE SEAT ATTACHMENT

2шт.

13

A26462

WASHER

- front, spring shaft EASY RIDE SEAT ATTACHMENT

4шт.

14

A30644

BUMPER

- rubber, rear tie bar EASY RIDE SEAT ATTACHMENT

1шт.

15

F94726

TIE BAR - rear EASY RIDE SEAT ATTACHMENT

1шт.

16

G46002

FLANGED BEARING

BEARING - flanged EASY RIDE SEAT ATTACHMENT

2шт.

17

195-41

WASHER,5/8"

Rear, spring shaft EASY RIDE SEAT ATTACHMENT 5/8"

4шт.

18

10953K

SPACER - spring shaft EASY RIDE SEAT ATTACHMENT

2шт.

19

G45003

SPRING SEAT

SPRING - rubber, L.H. EASY RIDE SEAT ATTACHMENT

1шт.

20

G45002

SPRING SEAT

SPRING - rubber, R.H. EASY RIDE SEAT ATTACHMENT

1шт.

21

G46002

FLANGED BEARING

BEARING - flanged EASY RIDE SEAT ATTACHMENT

2шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Easy ride attachment 1/8" x 3/4"

2шт.

23

G45005

LINK - stabilizer EASY RIDE SEAT ATTACHMENT

1шт.

24

F53363

STUD - adjusting EASY RIDE SEAT ATTACHMENT

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Easy ride seat attachment 1/8" x 3/4", Slotted

2шт.
