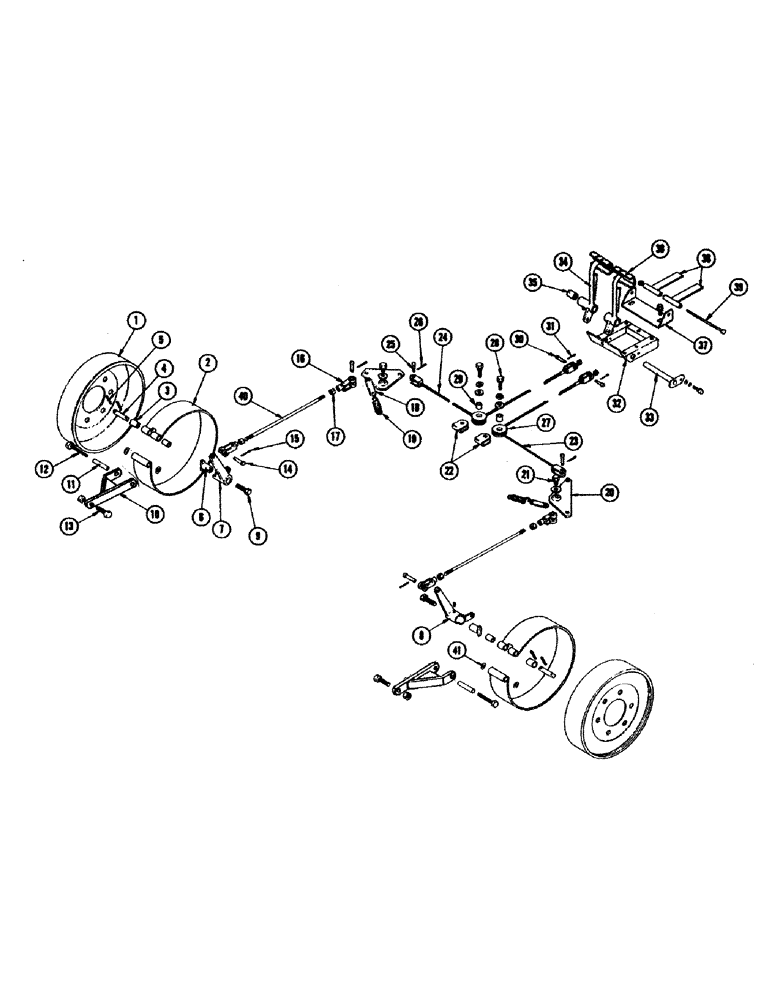

Запчасти Case IH 655 (50) - MECHANICAL BRAKE ATTACHMENT

1

FH493114

DRUM - brake

2шт.

2

FH493171

BAND - brake, includes lining

2шт.

3

FH495176

BUSHING

4шт.

4

FH493130

PIN

2шт.

5

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

6

FH495044

MOUNTING

2шт.

7

FH493254

BELLCRANK - R.H., with bushing

1шт.

8

FH493213

BELLCRANK - L.H., with bushing

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

2шт.

9

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

10

FH495077

BRACKET - (Replaced by F35013 when stocks are exhausted)

2шт.

10

F35013

BRACKET - (Replaces FH495077 when exhausted)

2шт.

11

FH482380

BUSHING

2шт.

12

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

92-8

LOCK WASHER,1/2"

2шт.

13

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

129-107

NUT,5/8"-11, G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

FHO63586

PIN - clevis 3/8" x 1-1/8"

4шт.

15

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

16

FHO66191

CLEVIS

4шт.

17

129-123

NUT,3/8"-24, G5

4шт.

18

FH480103

STRAP

2шт.

19

FH758508

SPRING

2шт.

20

FH480251

BELLCRANK

2шт.

FHO52472

BUSHING

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

195-104

WASHER,3/8"

- flat 3/8"

2шт.

22

FH118711

SHIELD

2шт.

23

FH722801

CABLE - brake, L.H.

1шт.

24

FH722819

CABLE - brake, R.H.

1шт.

25

FHO63578

X

PIN - clevis 3/8" x 1"

2шт.

26

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

27

FH495168

PULLEY

2шт.

28

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

FH480228

BUSHING

2шт.

30

FHO63735

PIN

- clevis 1/2" x 1-1/4"

2шт.

31

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

32

FH480020

BRACKET - mounting

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

33

FH480160

PIN

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

34

FH493106

PEDAL - brake, R.H. (Before #8352501)

1шт.

34

F35212

PEDAL - R.H. (#8352501 and after)

1шт.

35

F53045

BUSHING

2шт.

36

FH480129

PEDAL - brake L.H. (Before #8352501)

1шт.

36

F35210

PEDAL - L.H. (#8352501 and after)

1шт.

F53045

BUSHING

2шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

2шт.

27

FH493304

STOP

1шт.

38

FH493312

LATCH - brake

2шт.

39

13-6128

BOLT - 3/8" x 8" N.C. hex. Hex, 3/8"-16 x 8", G5

1шт.

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - 3/8" lock

1шт.

40

FH480079

ROD

2шт.

41

F35211

SPACER

- use w/F35013

4шт.
