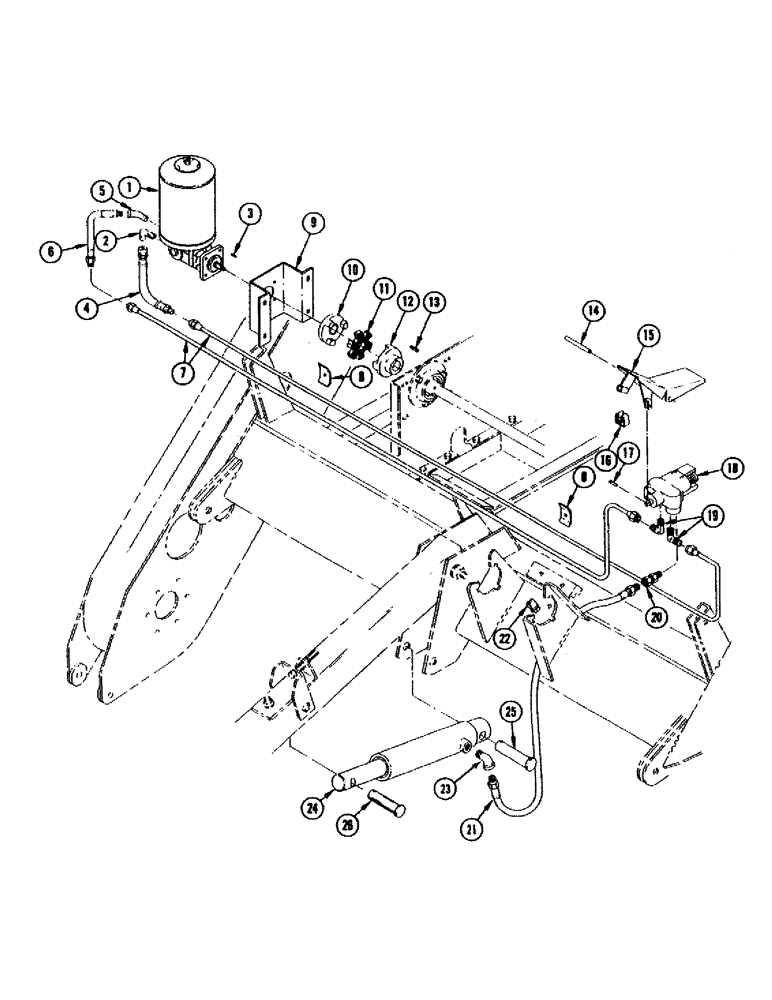

Запчасти Case IH 655 (44) - HYDRAULIC SYSTEM

1

FH742882

PUMP - hydraulic (Cessna 20436-OEJ3A)

1шт.

2

222-769

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 3/8" NPT

FITTING - elbow, pressure port "OUT"

1шт.

3

FH731042

KEY

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

92-5

LOCK WASHER,5/16"

1шт.

4

FH872028

HOSE - hydraulic, pressure

1шт.

5

221-403

X

FITTING - 3/8 NPTF x 45 degree street el, return port "IN"

1шт.

6

FHO42853

HOSE - hydraulic, return

1шт.

7

FH307439

LINE - hyd. (Replaced by FH872192 when exhausted)

2шт.

7

FH872192

LINE - hyd. (Replaces FH307439 when exhausted)

2шт.

8

FH294314

CLAMP - line

2шт.

9

FH487553

BRACKET - pump mounting

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

95-6

WASHER,3/8"

- flat 3/8"

4шт.

10

FH296160

COUPLING - driver half

1шт.

11

FHO86397

SPIDER ASSY.

SPIDER

1шт.

12

FH382655

COUPLING - driven half

1шт.

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - 1/4" x 1/2" sq. hd. set

2шт.

13

FH761148

KEY - 1/4" square

1шт.

14

FH296459

SPACER

1шт.

15

FH296293

PEDAL - hydraulic control

1шт.

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16" x 3-3/4" N.C. hex.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

16

FH751438

CLIP

- pedal

1шт.

17

FHO63867

PIN - clevis 3/16" x 1"

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

18

FH842369

VALVE - hydraulic control (Cessna 30531-AV)

1шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

19

222-769

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 3/8" NPT

FITTING - elbow, return and pressure ports

2шт.

20

219-902

FITTING - union, work port

1шт.

21

FHO42754

HOSE - hydraulic

1шт.

22

FH296624

CLAMP

1шт.

23

221-403

X

FITTING - 3/8" NPTF x 45 degree street el

1шт.

24

FH842435

CYLINDER - (Cessna 40030-PJ)

1шт.

25

FH763235

PIN - clevis 1" x 4-1/2"

1шт.

26

FH763243

PIN - clevis 1" x 4"

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.
