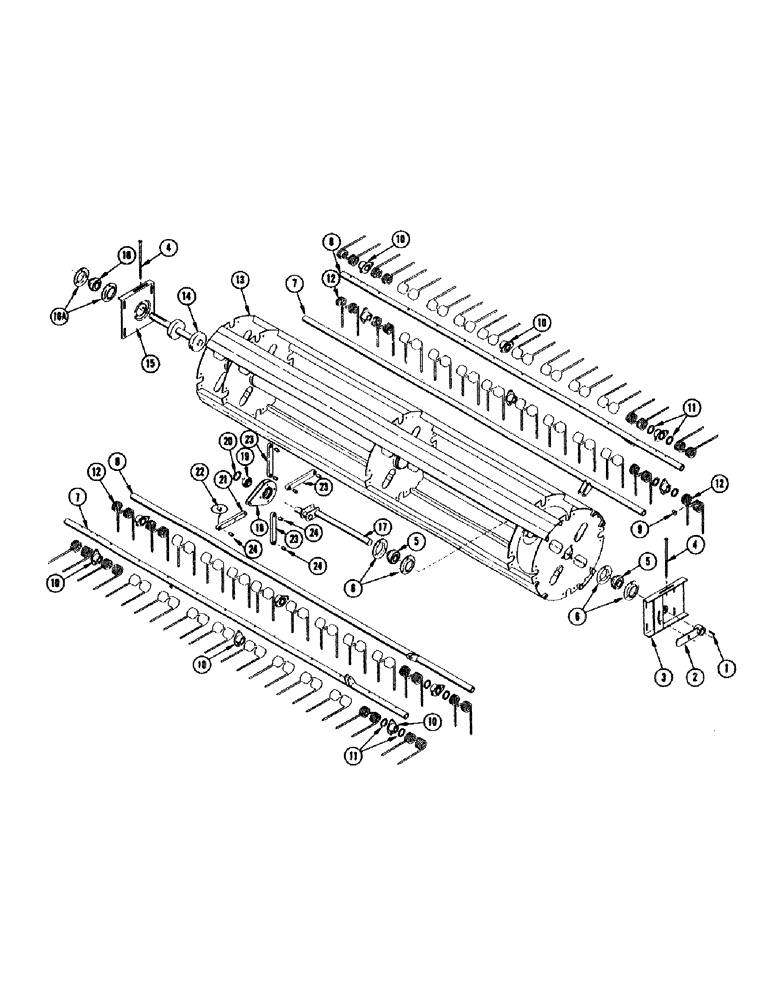

Запчасти Case IH 655 (42) - REEL

1

O3312AB

KEY

- timing arm

1шт.

2

FH311720

ARM - timing

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

195-104

WASHER,3/8"

- flat 3/8"

1шт.

85-58

SET SCREW

SCREW - 5/16" x 1/2" sq. hd. set

1шт.

3

FH452151

BRACKET - L.H. mounting

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

195-104

WASHER,3/8"

- flat 3/8"

4шт.

4

FH703058

BOLT

2шт.

195-104

WASHER,3/8"

- flat 3/8"

4шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" wing

2шт.

5

1443CKA

BALL BEARING

BEARING

2шт.

F62234

COLLAR

1шт.

6

F62225

FLANGE

- bearing

4шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

9шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

7

FH486423

TUBE - tine "A"

2шт.

8

FH486415

TUBE - tine "B"

2шт.

9

FH261024

CLIP

48шт.

10

FH452243

BEARING ASSEMBLY

12шт.

FH712380

BEARING

NYLON BEARING

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

24шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

24шт.

11

FHO52274

BUSHING

- machine 1-3/8" x 14 ga.

8шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

12

FH750075

TINE

48шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

48шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

48шт.

13

FH486332

TUBE - reel

1шт.

14

FH486449

BULKHEAD

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

FH452326

PLATE - R.H. mounting

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

195-104

WASHER,3/8"

- flat 3/8"

4шт.

16

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

16a

F19270

FLANGE

- bearig

2шт.

17

FH452201

SHAFT - control

1шт.

18

FH452086

CRANK ASSEMBLY

1шт.

19

F4334

BEARING

1шт.

F62108

COLLAR

1шт.

20

A31078

SNAP RING,2.062", Int, #206

1шт.

21

FH452300

ARM

- control, assembly

1шт.

22

FH740704

BUSHING

1шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

23

FH452318

ARM

LINK - control, assembly

3шт.

22

FH740704

BUSHING

2шт.

24

FH311910

BUSHING

1шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

9шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

9шт.

92-6

LOCK WASHER,3/8"

9шт.
