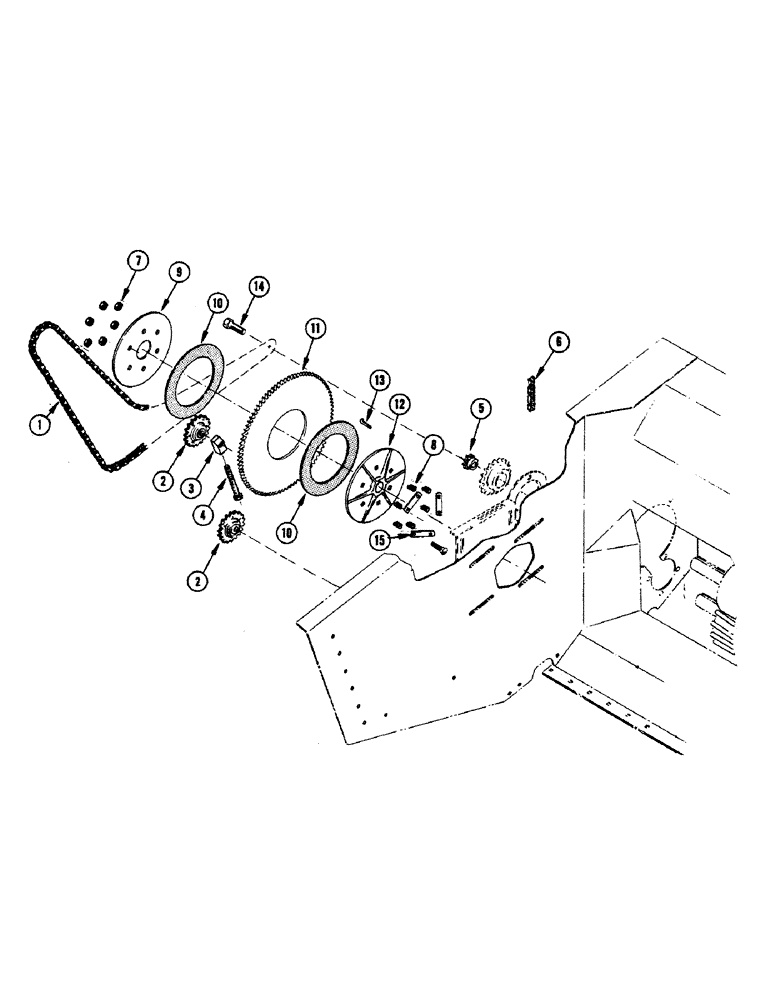

Запчасти Case IH 655 (40) - REEL DRIVE

1

FHO89573

CHAIN - reel drive (See chain page)

1шт.

2

F7935

SPROCKET ASSY.

SPROCKET - idler

2шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

1шт.

95-10

WASHER,5/8"

- flat 5/8"

4шт.

3

FH383513

STOP

1шт.

4

FH703173

SCREW

BOLT - 1/2" x 6" N.C. hex. full thread

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

5

FHO89680

SPROCKET ASSY.

SPROCKET - 10T

1шт.

FHO89664

SPROCKET - 12T

1шт.

6

FHO87643

CHAIN EXTENSION - (See chain page)

1шт.

7

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" elastic stop

6шт.

95-6

WASHER,3/8"

- flat 3/8"

6шт.

8

FHO58883

SPRING

6шт.

11-636

BOLT (MACHINE)

BOLT - 3/8" x 2-1/4" rhd. sq. nk.

6шт.

9

FH451559

PLATE - clutch

1шт.

10

FHO27565

DISC

- clutch

2шт.

11

FHO89656

SPROCKET - 96T

1шт.

12

FH451385

PLATE - clutch, inner

1шт.

13

FHO61424

KEY

- 1/4" Gib

1шт.

14

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

F35016

STRAP

3шт.
