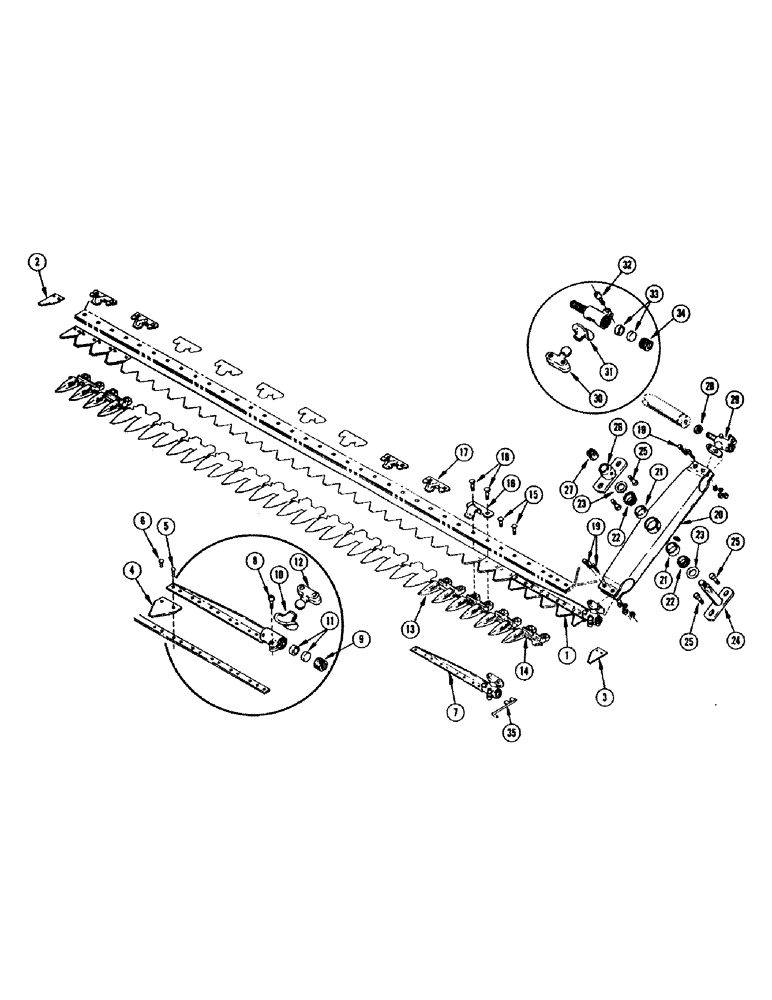

Запчасти Case IH 655 (38) - SICKLE AND SWAYBAR

1

F94923

KNIFE ASSY

SICKLE - over-serrated sections

1шт.

2

TF59129

CATALOG

SECTION - half, outer end (Smooth)

1шт.

3

F53353

KNIFE SECTION

SECTION - half, head end (Smooth)

1шт.

4

F59106

KNIFE SECTION

SECTION - top serrated, chrome (25 per box)

32шт.

5

T13492

RIVET

- #5-1/2 x 7/8" oval head (1 lb. pkg.)

11шт.

6

T13489

RIVET

- #5-1/2 x 9/16" oval head (1 lb. pkg.)

57шт.

7

F94924

HEAD - sickle

1шт.

8

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket head cap

1шт.

9

FH264143

PLUG

1шт.

10

FH722827

COVER

CAP - dust

1шт.

11

FH720458

BEARING

2шт.

12

FH338228

BALL

BLOCK - stud

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

F94922

KNIFE ASSY

SICKLE - smooth sections

1шт.

T13009

KNIFE SECTION

SECTION - smooth, chrome (25 per box) Also includes Ref. # 2, 3, 5, 6 and 7.

32шт.

13

FHO49239

GUARD

- double

16шт.

14

FHO49247

GUARD

- half

1шт.

15

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk.

10шт.

16

FH142984

HOLDER

CLIP - hold down, hi clearance

1шт.

17

FH380592

CLIP - hold down

9шт.

18

111-402

CARRIAGE BOLT

BOLT - 7/16" x 1-1/2" rhd. sq. nk.

20шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

34шт.

19

FHO26450

BOLT

4шт.

20

FH377747

SWAYBAR

1шт.

21

FHO50104

CUP

2шт.

22

FHO50112

BEARING

CONE

2шт.

23

FH263764

WASHER

2шт.

24

FH123216

PIN

- swaybar

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

95-8

WASHER,1/2"

flat 1/2"

8шт.

26

FH123224

PLATE - reinforcement

1шт.

181-73

SCREW - 1/2" x 3/4" sq. hd. set

1шт.

27

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. slotted hex.

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

28

FHO74526

NUT - 7/8" - 18 N.F. hex. jam

1шт.

29

FH383588

HEAD

- pitman

1шт.

30

FH338228

BALL

BLOCK - stud

1шт.

31

FH722827

COVER

CAP - dust (Replaces FH720300 when exhausted)

1шт.

32

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket head cap

1шт.

33

FH720458

BEARING

2шт.

34

FH264143

PLUG

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

35

FH380360

OPEN END WRENCH

WRENCH

1шт.
