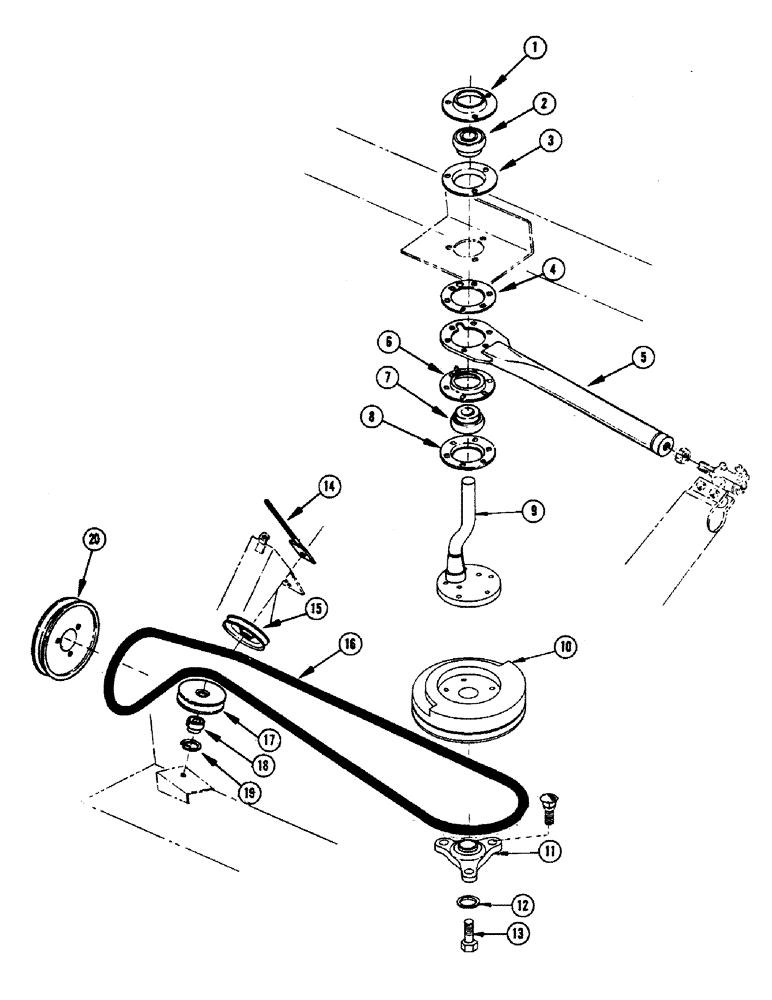

Запчасти Case IH 655 (36) - SICKLE DRIVE AND PITMAN
№
Артикул
Название
Примечание
Количество
1
FH711424
FLANGE
1шт.
2
FH711432
BEARING,31.75mm ID x 62mm OD x 18mm W
1шт.
3
FH711481
FLANGE
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
3шт.
92-6
LOCK WASHER,3/8"
3шт.
4
FH383349
FLANGE - stabilizer
1шт.
5
FH383331
PITMAN
1шт.
6
FH383315
FLANGE - w/ftg. (Replaced by FH711473 when exhausted)
1шт.
6
FH711473
FLANGE - w/ftg. (Replaces FH383315 when exhausted)
1шт.
7
FH711630
BEARING
1шт.
TD4510
COLLAR
1шт.
8
FH711440
FLANGE
1шт.
11-620
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2
BOLT - 3/8" x 1-1/4" rhd. sq. nk.
6шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
6шт.
92-6
LOCK WASHER,3/8"
6шт.
9
FH411520
CRANK - Pitman
1шт.
10
FH411587
SHEAVE - Pitman crank
1шт.
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
5шт.
92-6
LOCK WASHER,3/8"
5шт.
11
FH711796
BEARING
- Pitman
1шт.
111-320
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5
3шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
3шт.
92-6
LOCK WASHER,3/8"
3шт.
12
FH411579
WASHER
1шт.
13
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
92-6
LOCK WASHER,3/8"
1шт.
14
FH382077
DRAWBOLT
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
15
FHO54833
FRONT IDLER
V-IDLER
1шт.
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- 1/2" x 2-1/4" N.C. hex.
1шт.
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
1шт.
92-8
LOCK WASHER,1/2"
1шт.
95-8
WASHER,1/2"
flat 1/2"
1шт.
16
FHO57539
BELT
Round Section
1шт.
17
FH384982
IDLER
1шт.
18
T32178
BALL BEARING,0.515" ID x 1.5748" OD x 0.72"
BEARING
1шт.
19
FH740167
X
SNAP RING
1шт.
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- 1/2" x 1-3/4" N.C. hex.
1шт.
92-8
LOCK WASHER,1/2"
1шт.
95-8
WASHER,1/2"
flat 1/2"
1шт.
20
FH320507
SHEAVE
1шт.
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8" x 2-3/4" N.C. hex.
3шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
3шт.
92-6
LOCK WASHER,3/8"
3шт.
Выбрано товаров: 45
