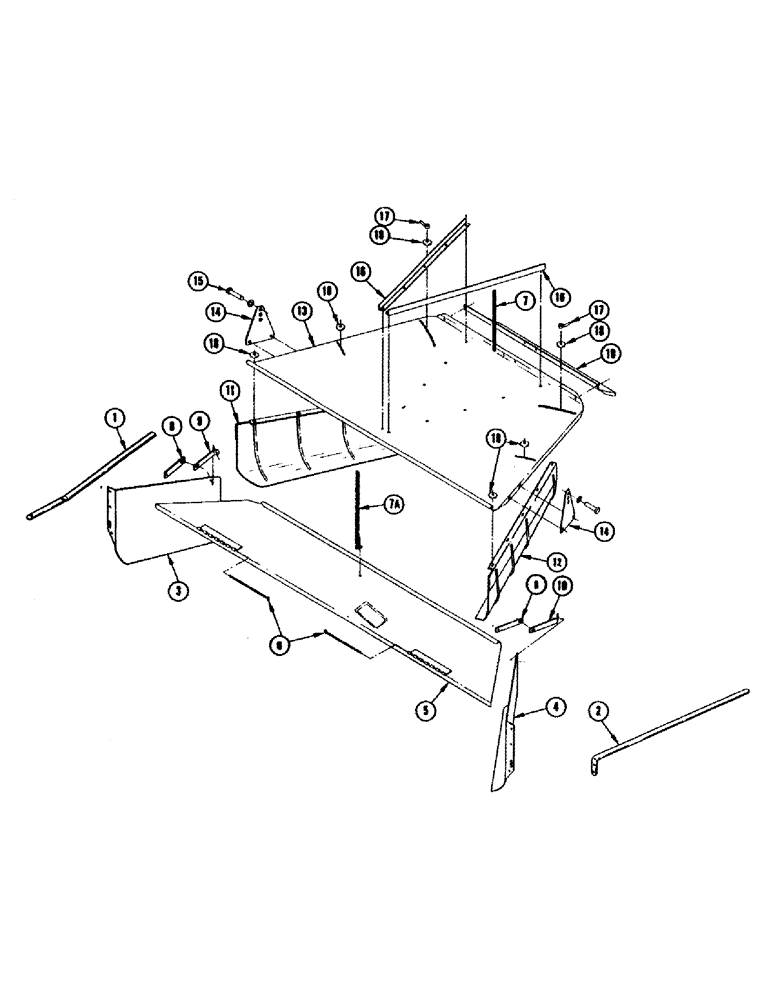

Запчасти Case IH 655 (34) - WINDROWER SHIELDS

1

FH384693

DEFLECTOR - R.H.

1шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

2

FH384016

DEFLECTOR - L.H.

1шт.

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

3

FH486639

DEFLECTOR - R.H. side

1шт.

4

FH486621

DEFLECTOR - L.H. side

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

5

FH486647

DEFLECTOR - front

1шт.

6

FH411496

PIN - hinge

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

7

T23187

CHAIN - rear

1шт.

7a

F35206

CHAIN - front

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

FHO62372

PIN - cotter

1шт.

95-6

WASHER,3/8"

- flat 3/8"

1шт.

8

FH457069

BRACE

2шт.

9

FH457085

BRACE - R.H.

1шт.

10

FH457077

BRACE - L.H.

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

95-6

WASHER,3/8"

- flat 3/8"

4шт.

11

FH382846

SHIELD - R.H. forming

1шт.

12

FH382838

SHIELD - L.H. forming

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

FH495317

SHIELD - upper

1шт.

14

FH487637

HANGER - shield

2шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

4шт.

15

PIN - clevis 3/4" x 3"

2шт.

95-10

WASHER,5/8"

- 3/4" flat

2шт.

FHO62349

X

PIN - cotter

2шт.

16

FH412700

ANGLE - shield

2шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

10шт.

17

FHO66423

NUT - lever

2шт.

18

FH482069

WASHER

6шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" wing

2шт.

19

FH495341

DEFLECTOR - rear

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.
