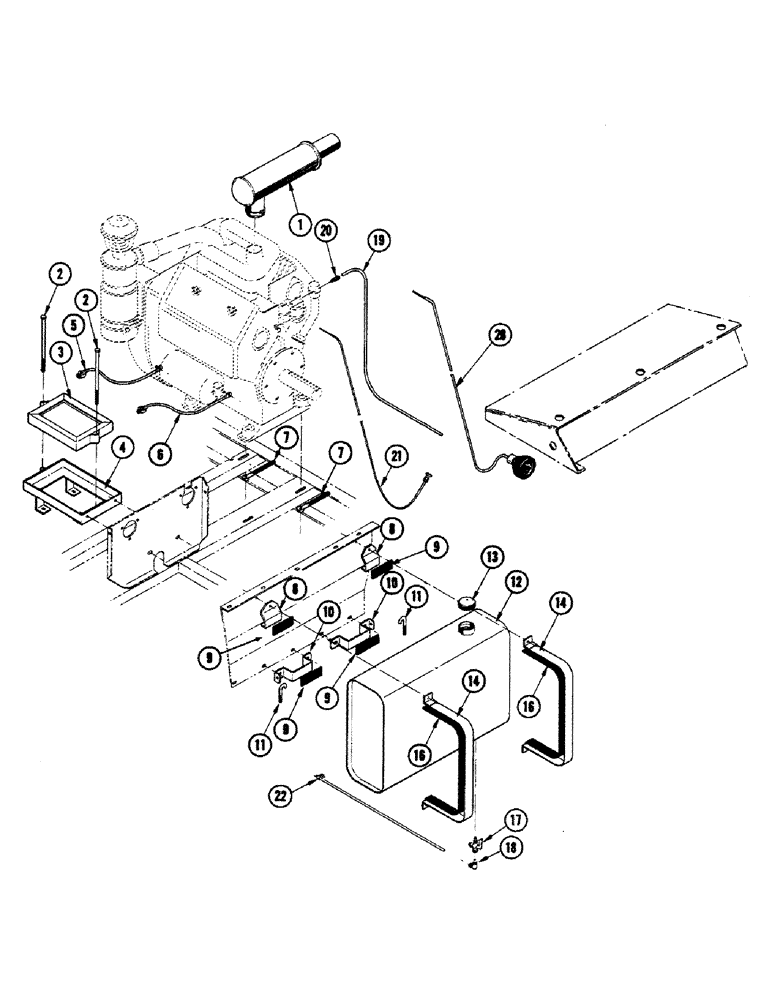

Запчасти Case IH 655 (20) - ENGINE ACCESSORIES

1

FHO41335

MUFFLER

1шт.

2

FH702316

BOLT

- 5/16" x 10"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

2шт.

3

FHO41616

RACK - battery, upper

1шт.

4

FH486837

RACK - battery, lower

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

5

FH722611

CABLE - ground (Negative) (Replaced by FH720367 when exh.)

1шт.

5

FH720367

CABLE - ground (Negative) (Replaces FH722611 when exhausted)

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

95-6

WASHER,3/8"

- flat 3/8"

1шт.

6

FH722603

CABLE - battery (Positive) (Replaced by FH721506 when exh.)

1шт.

6

FH721506

CABLE - battery (Positive) (Replaced FH722603 when exhausted)

1шт.

7

FH766295

BOLT

DRAWBOLT - engine

2шт.

25-108

NUT,1/2"-13, G5

- 1/2"

4шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3"

2шт.

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

95-8

WASHER,1/2"

flat 1/2"

4шт.

8

FH486845

BRACKET - tank mounting

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

9

FH744367

LINER

4шт.

10

FH486852

BRACE - tank mounting

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

11

FH486803

J-BOLT

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

12

FH757633

TANK - fuel

1шт.

13

FHO45088

CAP

1шт.

14

FH486878

STRAP

2шт.

16

FH744375

LINER

2шт.

17

FH746362

FITTING - shut off valve

1шт.

18

FH746529

FITTING - elbow 1/4" x 1/4" NPTF Poly-Flo

1шт.

19

FH496703

LINE - fuel (Replaced by F35003 when exhausted)

1шт.

19

F35003

LINE - fuel kit (Replaced FH496703 when exhausted)

1шт.

20

FHO46011

FITTING - union

1шт.

21

FH722637

CABLE - choke

1шт.

22

FH751628

CLIP - fuel line

3шт.

23

FH722439

CABLE - throttle control

1шт.
