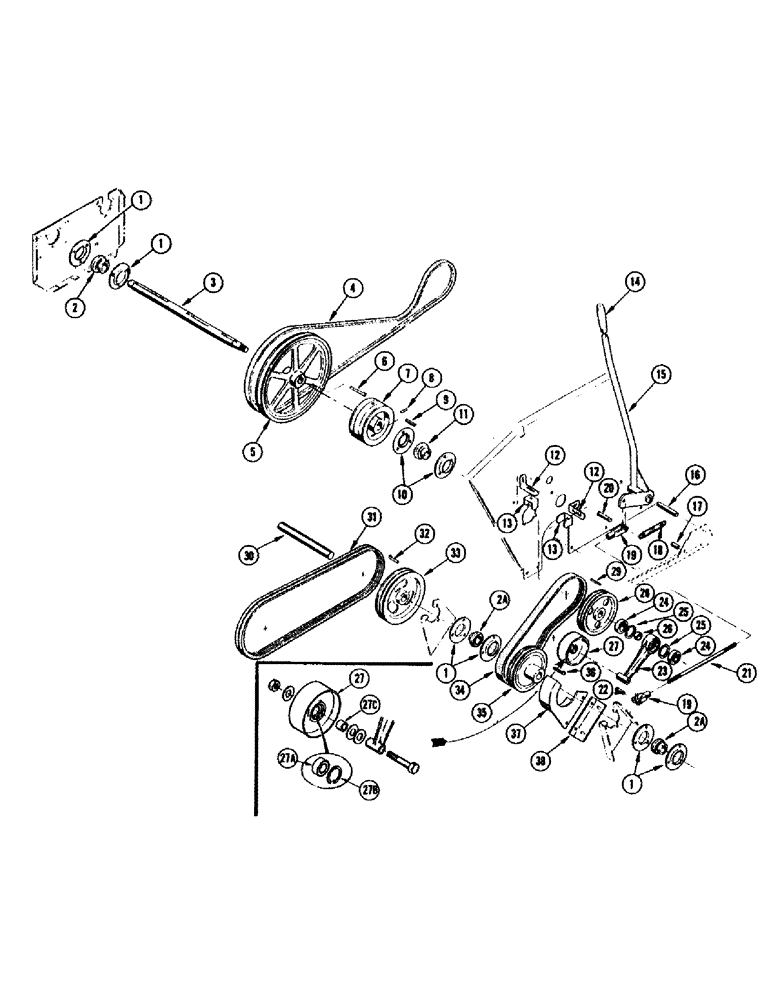

Запчасти Case IH 655 (18) - REVERSE DRIVE SHAFT AND HEADER CLUTCH

1

F62225

FLANGE

- bearing

6шт.

2

F51085

BEARING

1шт.

F62226

COLLAR

- bearing

1шт.

2a

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

2шт.

F62226

COLLAR

1шт.

3

FH486928

SHAFT - reverse drive

1шт.

4

FHO56333

BELT

Reverse Drive

1шт.

5

FH236653

SHEAVE - reverse drive

1шт.

6

FHO61739

KEY

- 1/4" Gib

1шт.

7

F2430

SHEAVE - double drive

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

83-88

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - 1/2" x 1/2" socket head set

1шт.

8

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

9

FH156620

KEY

- 1/4" square

1шт.

10

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

11

K3315

BEARING ASSY

BEARING

1шт.

O885CB

COLLAR

1шт.

12

FH457192

BRACKET - belt guide

2шт.

13

FH457200

GUIDE - belt

2шт.

14

FHO27086

X

GRIP - handle

1шт.

15

FH486944

LEVER - clutch control

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

1шт.

16

FH487041

BUSHING

1шт.

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

17

FH487025

STOP

1шт.

18

FH758441

SPRING

1шт.

19

O381SC

CLEVIS

2шт.

20

FH488031

PIN - clevis

1шт.

21

FH486993

ROD

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

1шт.

22

FHO63685

PIN - clevis 1/2" x 1-1/2"

1шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

23

FH486266

ARM - clutch idler

1шт.

24

FH712398

BEARING

2шт.

25

A31078

SNAP RING,2.062", Int, #206

2шт.

26

FH488171

SPACER

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

27

F35207

FRONT IDLER

IDLER - Case (Replaces FH853135)

1шт.

27a

FH710053

BEARING

1шт.

27b

A31078

SNAP RING,2.062", Int, #206

1шт.

27c

F35208

BUSHING

1шт.

95-8

WASHER,1/2"

flat 1/2"

3шт.

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

28

FH486233

SHEAVE - header drive

1шт.

85-512

SET SCREW

SCREW - 5/16" x 3/4" sq. hd. set.

2шт.

29

FH761122

KEY

- 5/16" sq.

1шт.

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

1шт.

30

FH487017

JACKSHAFT

1шт.

31

FH486274

BELTS - (Matched set of 2 FHO57562)

1шт.

32

FHO61622

KEY

- 1/4" gib

1шт.

33

FH486241

SHEAVE

1шт.

34

FH855189

BELT - power band

1шт.

35

FH486225

SHEAVE

1шт.

36

FHO61739

KEY

- 1/4" Gib

1шт.

37

FH486761

GUIDE - belt

1шт.

38

FH486795

BRACKET - belt guide

1шт.
