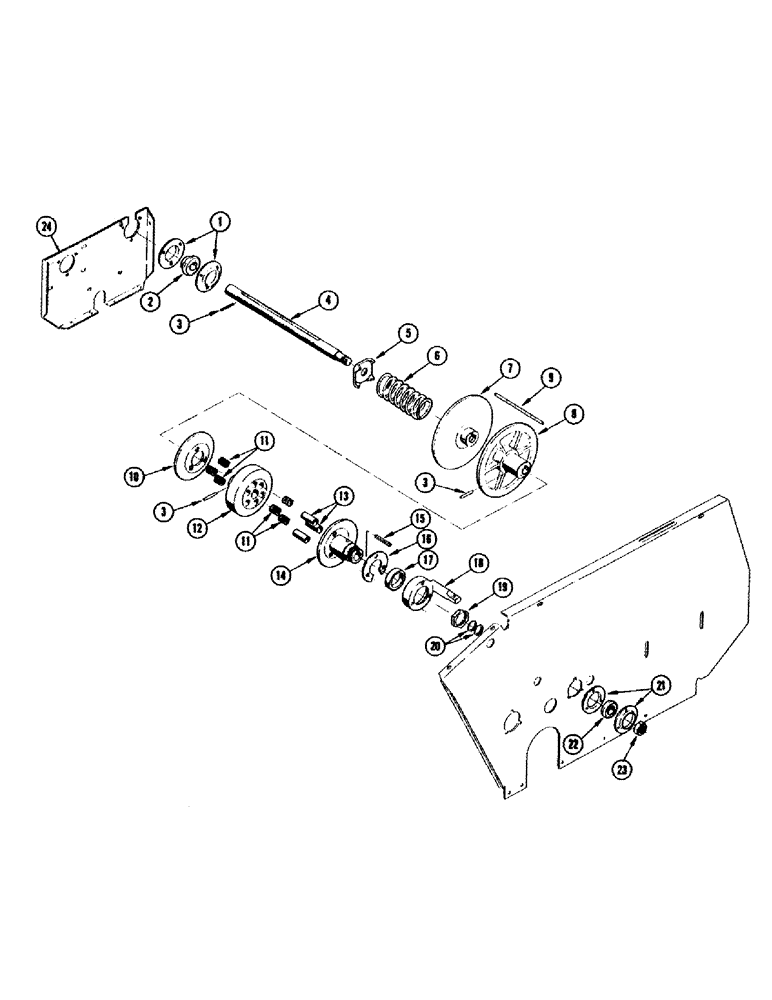

Запчасти Case IH 655 (16) - FORWARD DRIVE SHAFT

1

F62225

FLANGE

- bearing

2шт.

2

F51085

BEARING

1шт.

F62226

COLLAR

- bearing

1шт.

3

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

3шт.

4

FH135111

SHAFT - forward drive

1шт.

5

FH129460

PLATE

- spring retainer

1шт.

6

FHO58453

SPRING

1шт.

7

F2450

SHEAVE - floating half

1шт.

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Ext. 1/4"-28 NPT x .94" lg

1шт.

8

F2449

SHEAVE - stationary half

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - 3/8" - 16 x 1/2" socket head set

2шт.

9

FH156695

KEY - 1/4" square

1шт.

10

FH122077

SHEAVE HALF

1шт.

11

FHO58131

SPRING

6шт.

12

FH115600

SHEAVE - center, vari drive

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

83-88

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - 1/2" - 13 x 1/2" socket head set

1шт.

13

FH158675

SPACER

3шт.

14

FH122044

SHEAVE HALF

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex.

3шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

3шт.

15

FH761106

KEY - 1/4" square

1шт.

16

FH122192

FLANGE - bearing

1шт.

17

F8025

BEARING

1шт.

18

FH122168

HOUSING - bearing

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

92-5

LOCK WASHER,5/16"

3шт.

19

FHO66019

NUT

1шт.

20

FHO52217

BUSHING - machine 1-1/8" x 18 ga.

1шт.

21

F19270

FLANGE

- bearing

2шт.

22

F82927

RACE

BEARING - (Note collar not used)

1шт.

23

FHO66001

NUT - jam 1-1/8"

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

24

FH389213

SUPPORT

1шт.
