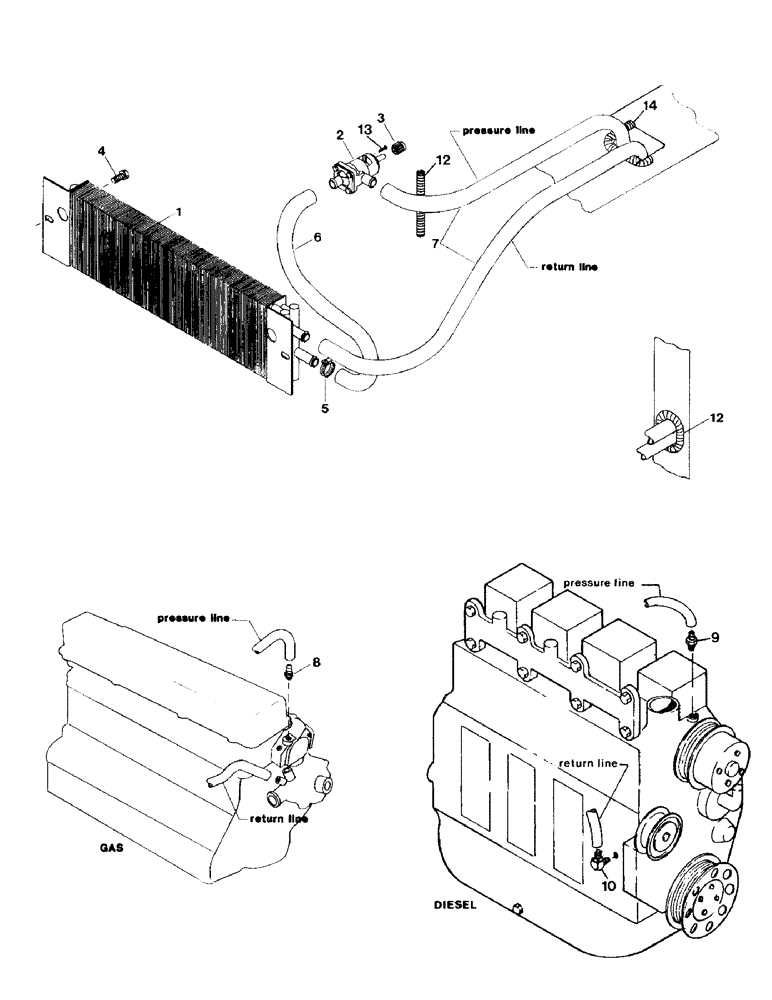

Запчасти Case IH 6500 (9-34) - HEATER GROUP (09) - CHASSIS

1

1336447C1

HEATER

CORE - heater

1шт.

2

1336448C1

VALVE

- water

1шт.

3

1336449C1

KNOB

- plastic, 1/4 inch shaft

1шт.

4

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

5

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP - hose, gear type

6шт.

6

1336450C1

HOSE

- heater, 5/8 I.D. x 20-1/2 inch

1шт.

7

1336451C1

HOSE

- heater, 5/8 I.D. x 134 inch

2шт.

8

864438R1

FITTING

INSERT - barbed, 3/8 NPT x 5/8 inch I.D. hose (Gasoline engine)

1шт.

9

864440R1

NIPPLE, LUBE

INSERT - barbed, 1/2 NPT x 5/8 inch I.D. hose (Diesel engine)

1шт.

10

864458R1

ELBOW

- 90 degrees, barbed, 1/2 NPT x 5/8 inch I.D. hose (Diesel engine)

1шт.

12

1336443C1

HOSE

GROMMET - slit hose, 7-1/2 inch

2шт.

13

26208R1

SCREW,Hex Wash Hd, #10 x 3/8"

- hex washer head, type A, self-tapping #10 x 3/8 inch

2шт.

14

1336299C1

HOSE

GROMMET - slit hose, 5-1/2 inch

1шт.
