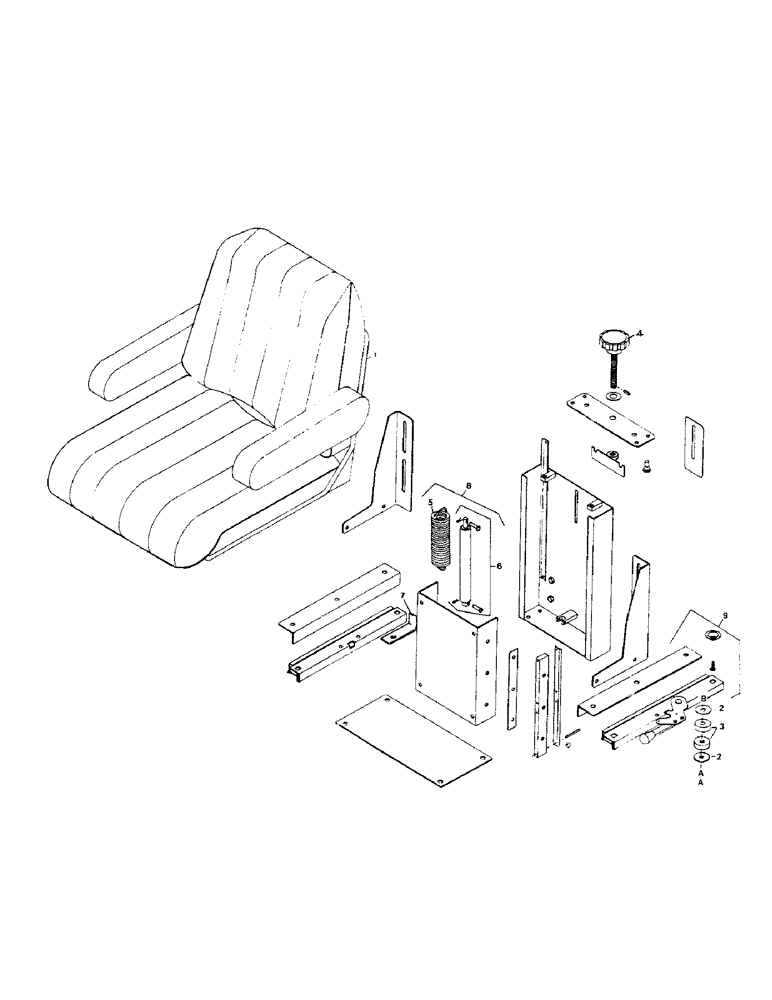

Запчасти Case IH 6500 (9-26) - SEAT (09) - CHASSIS

1

1336221C1

SEAT

- complete

1шт.

2

1336222C1

WASHER

- flat

7шт.

3

1336226C1

WASHER

- rubber

8шт.

a

120376

NUT,5/16"-18, G5

8шт.

b

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

CAPSCREW - hex head, 5/16 NC x 1-3/4 inch

4шт.

4

1336223C1

KNOB

ADJUSTER - weight

1шт.

5

1336224C1

SPRING

- extension

2шт.

6

1336225C1

SHOCK ABSORBER

ASS'Y., includes clevis and cotter pins

1шт.

7

1337991C1

ANGLE

STOP - seat

1шт.

8

1969333C1

KIT

SUSPENSION OVERHAUL KIT

1шт.

9

1969334C1

KIT

SLIDE RAIL KIT

1шт.
