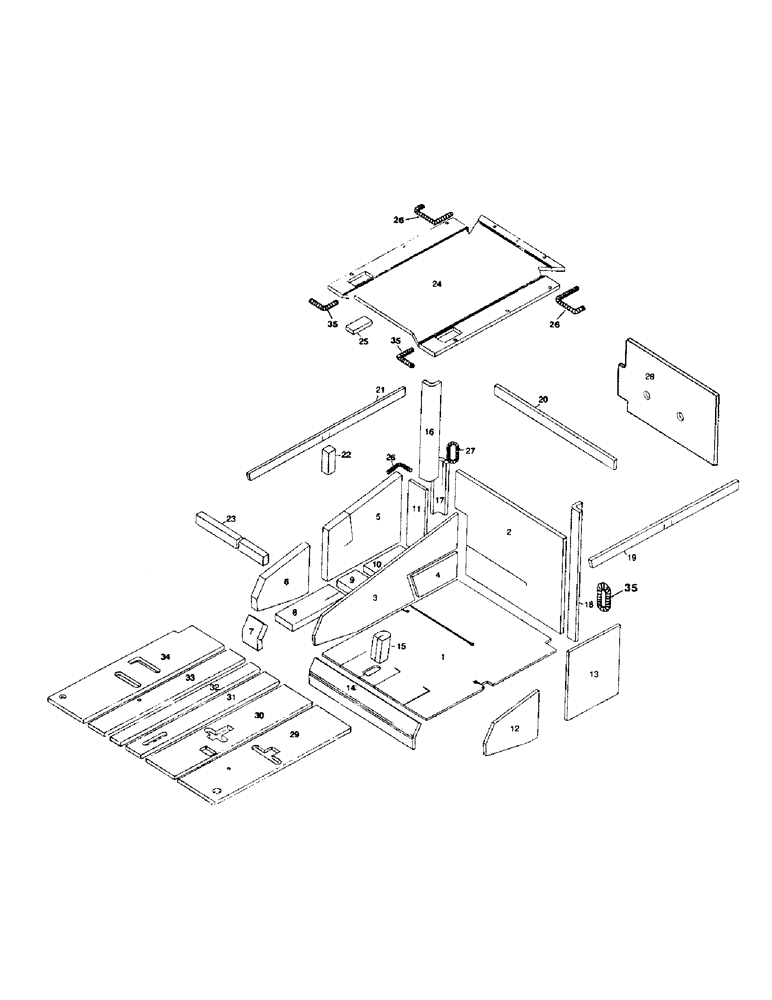

Запчасти Case IH 6500 (9-20) - CAB, ACOUSTICAL GROUP (09) - CHASSIS

1

1336898C1

MAT

- floor

1шт.

2

1336899C1

PANEL

UPHOLSTERY - rear panel

1шт.

3

1336960C1

CONSOLE

UPHOLSTERY - console exterior

1шт.

4

1336961C1

CONSOLE

UPHOLSTERY - console exterior, under seat

1шт.

5

1336962C1

INSULATOR

INSULATION - foam, R/H rear console

1шт.

6

1336963C1

INSULATOR

INSULATION - foam, R/H front console

1шт.

7

1336964C1

INSULATOR

INSULATION - foam, console front

1шт.

8

1336965C1

INSULATOR

INSULATION - foam, console floor, front

1шт.

9

1336966C1

INSULATOR

INSULATION - foam, console floor, center

1шт.

10

1336967C1

INSULATOR

INSULATION - foam, console floor, rear

1шт.

11

1336968C1

CONSOLE

UPHOLSTERY - console interior, rear

1шт.

12

1336969C1

PANEL

UPHOLSTERY - L/H lower panel

1шт.

13

1336970C1

PANEL

UPHOLSTERY - door panel

1шт.

14

1336971C1

PANEL

UPHOLSTERY - front kick panel

1шт.

15

1336972C1

INSULATOR

INSULATION - foam, steering post

1шт.

16

1336973C1

POST

UPHOLSTERY - R/H rear post

1шт.

17

1336974C1

INSULATOR

INSULATION - foam, R/H lower post

1шт.

18

1336975C1

POST

UPHOLSTERY - L/H rear post

1шт.

19

1336976C1

CHANNEL

UPHOLSTERY - L/H top channel

1шт.

20

1336977C1

CHANNEL

UPHOLSTERY - rear top channel

1шт.

21

1336978C1

CHANNEL

UPHOLSTERY - R/H top channel

1шт.

22

1336979C1

INSULATOR

INSULATION - foam, front post plug

2шт.

23

1336740C1

SUPPORT

INSULATION - foam, front top channel

1шт.

24

1336941C1

INSULATOR

INSULATION - covered foam, roof

1шт.

25

1336336C1

FILTER

- foam, recirculation

2шт.

26

1336299C1

HOSE

GROMMET - slit hose, 5-1/2 inch

3шт.

27

1336426C1

GROMMET

- slit hose, 8-3/4 inch

1шт.

28

1336943C1

INSULATOR

INSULATION - foam, backsheet

1шт.

29

1336944C1

INSULATOR

INSULATION - foam, floor

1шт.

30

1336945C1

INSULATOR

INSULATION - foam, floor

1шт.

31

1336946C1

INSULATOR

INSULATION - foam, floor

1шт.

32

1336947C1

INSULATOR

INSULATION - foam, floor

1шт.

33

1336948C1

INSULATOR

INSULATION - foam, floor

1шт.

34

1336949C1

INSULATOR

INSULATION - foam, floor

1шт.

35

1336443C1

HOSE

GROMMET - slit hose, 7-1/2 inch

3шт.
