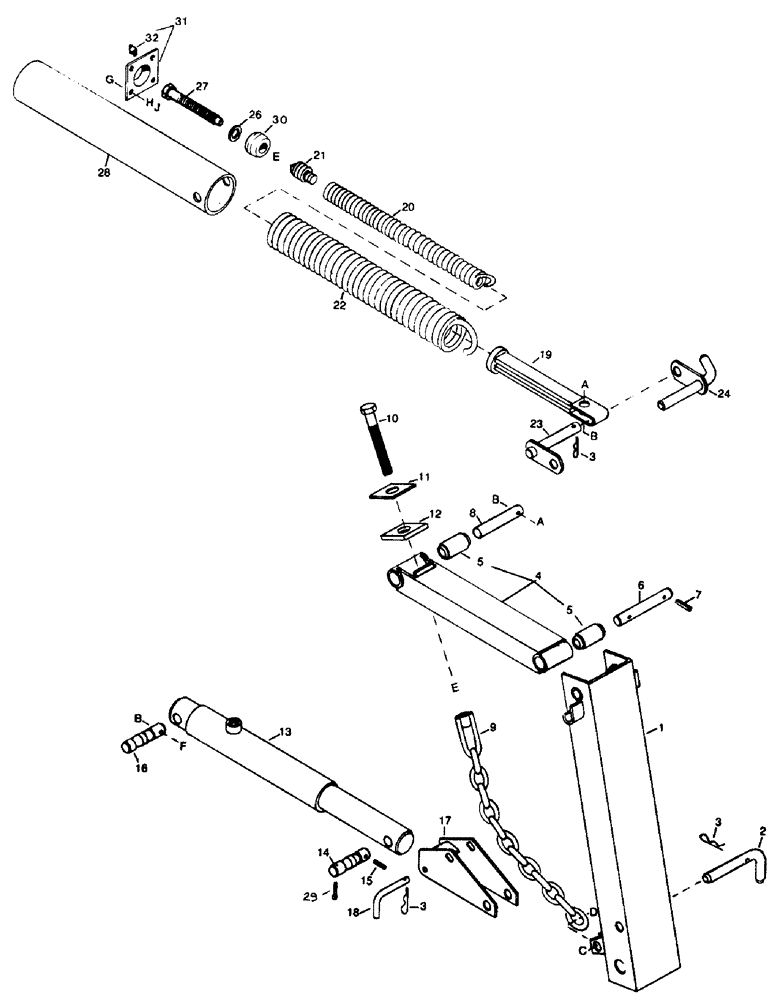

Запчасти Case IH 6500 (9-10) - LIFT LINKAGE (09) - CHASSIS

1

1336771C1

CHANNEL

- lift linkage

2шт.

2

1960434C1

PIN

- lock

2шт.

3

591107R1

COTTER PIN

- hair, 5/32 inch diameter

6шт.

4

1336773C1

LINK

- top, c/w rubber bushings

2шт.

5

1336774C1

RUBBER BUSHING

BUSHING - rubber

4шт.

6

1336775C1

PIN

- pivot

2шт.

7

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

4шт.

8

1336776C1

PIN

- pivot

2шт.

a

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

2шт.

b

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

9

1336777C1

CHAIN (AG)

CHAIN - diagonal, 12 links

2шт.

c

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

CAPSCREW - hex head, 5/8 NC x 2 inch

2шт.

d

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

2шт.

10

1336778C1

BOLT

- tightener, 3/4 NC x 6-1/2 inch

2шт.

e

280954

NUT,3/4"-10, G5

2шт.

11

1336779C1

WASHER

- top

2шт.

12

1336880C1

WASHER

BUMPER - rubber

2шт.

13

REF

INSTRUCTION

CYLINDER - single acting, see page 8-6, ref. 62

2шт.

14

1336881C1

PIN

- cylinder, front

2шт.

15

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

2шт.

16

1336882C1

PIN

- cylinder, rear

2шт.

b

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

f

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

CAPSCREW - hex head, 3/8 NC x 2-14 inch

2шт.

17

1336883C1

CHANNEL

STOP - cylinder

2шт.

18

1336884C1

PIN

- retaining

2шт.

19

1336885C1

BAR

- extension

2шт.

a

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

2шт.

b

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

20

1336886C1

SPRING

- extension, 3/8 inch dia. wire

2шт.

21

1336887C1

INSERT

- spring

2шт.

22

1336888C1

SPRING

- extension, 5/8 inch dia. wire

2шт.

23

1336889C1

PIN

- hinge

2шт.

24

1336890C1

PIN

- retaining

2шт.

26

25712R1

WASHER

- flat, heat treated

2шт.

27

1976274C1

BOLT

DRAWBOLT - spring

2шт.

e

280954

NUT,3/4"-10, G5

2шт.

28

1978766C1

TUBE

- spring

2шт.

30

1336893C1

BALL

- case

2шт.

31

1336894C1

FLANGE

- c/w grease fitting

2шт.

g

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

CAPSCREW - hex head, 5/16 NC x 3/4 inch

8шт.

h

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

j

120376

NUT,5/16"-18, G5

8шт.

32

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - lube

2шт.

29

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.
