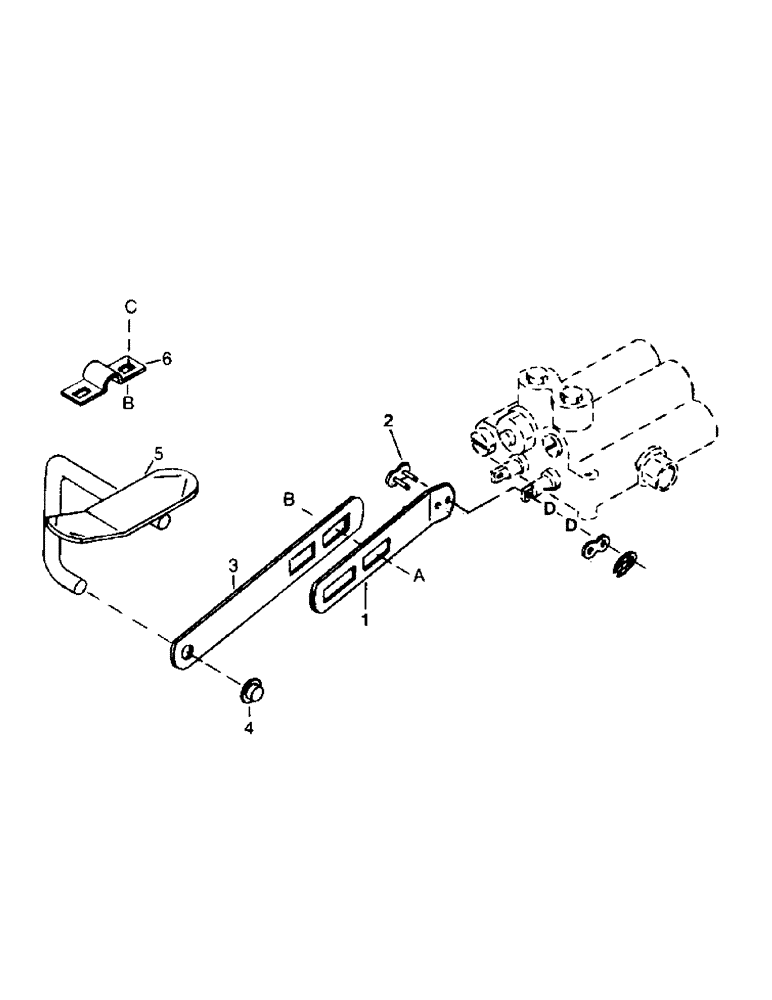

Запчасти Case IH 6500 (9-08) - PEDAL-VALVE LINKAGE (09) - CHASSIS

1

1336527C1

LINK

- lower, valve

2шт.

2

1310D

LINK

- connector #50 chain

2шт.

d

120391

WASHER,#10

- flat, 7/32 I.D.

4шт.

3

1336528C1

LINK

- upper, valve

2шт.

a

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

4

96148C1

NUT

- push-on, 3/8 inch diameter

2шт.

5

1336529C1

PEDAL

- control, valve

2шт.

6

1336530C1

SOCKET

- pedal

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.
