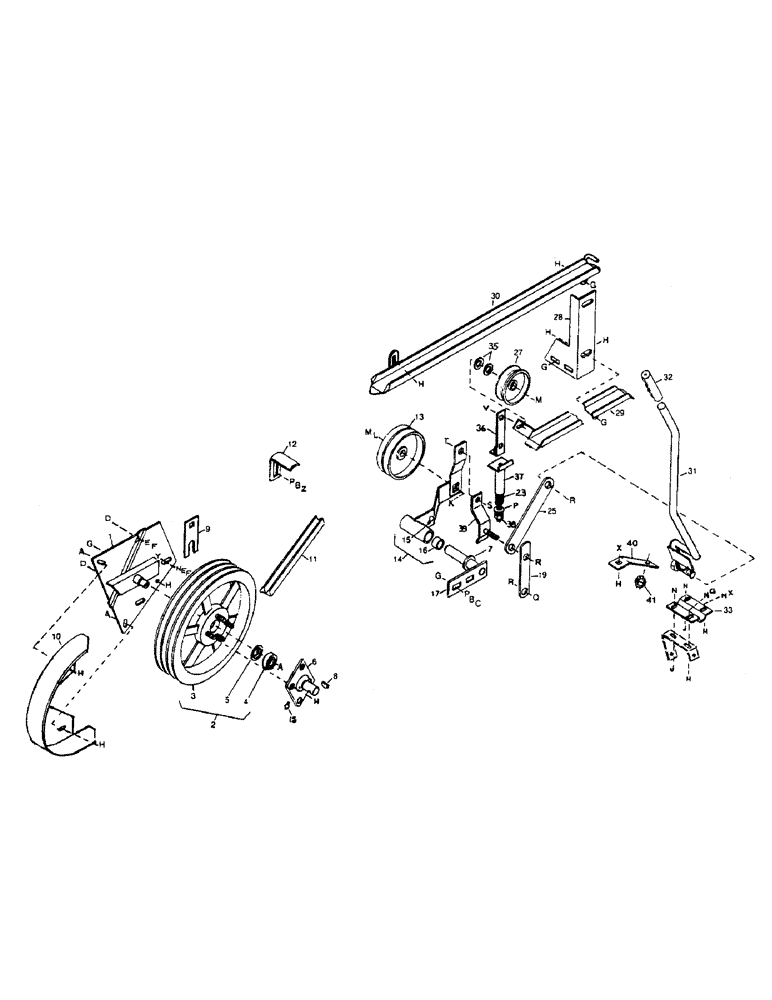

Запчасти Case IH 6500 (9-04) - HEADER DRIVE (09) - CHASSIS

1

1336731C1

SUPPORT

MOUNT - header pulley

1шт.

d

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

2шт.

e

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

f

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

y

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/2 inch

1шт.

n

495-11053

WASHER,1/2", SAE

- flat, 17/32 inch I.D.

1шт.

g

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

2

1336732C1

PULLEY

ASSEMBLY - includes items 3, 4 & 5

1шт.

3

1336733C1

PULLEY

- header drive

1шт.

4

1336734C1

BEARING

- pulley

1шт.

5

1336735C1

SEAL

RING - sealing, metal

1шт.

a

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- flange head, 3/8 NC x 1 inch

1шт.

6

1336736C1

ADAPTER

- pulley

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

7

1336594C1

WASHER

1шт.

8

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

1шт.

9

1336737C1

SHIM

- pulley alignment (Nominal quantity is 3)

1шт.

10

1336738C1

SHIELD

GUARD - belt

1шт.

a

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- flange head, 3/8 NC x 1 inch

2шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

11

1336739C1

BELT,4900.00 mm L

Header Drive 4900.00 mm L

1шт.

12

1336740C1

SUPPORT

- belt

1шт.

z

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

CAPBOLT - hex head, 3/8 NC x 1 inch

1шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

p

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

1шт.

13

1336578C1

PULLEY

IDLER - 8 inch O.D.

1шт.

k

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

l

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

m

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

14

1336741C1

ARM ASSY.

ARM - idler c/w bushings and grease fitting

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

16

1336720C1

BUSHING

- arm

2шт.

17

1336728C1

PIN

- idler arm

1шт.

g

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

p

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

1шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

c

120377

NUT,3/8" - 16, Gr 5

1шт.

19

1336742C1

BAR

LINK - radius arm

1шт.

q

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/4 inch

1шт.

r

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

23

1336724C1

SPRING

- tension

1шт.

25

1336321C1

LINK

- clutch

1шт.

27

1336744C1

PULLEY

IDLER - 5-1/2 inch O.D.

1шт.

v

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT - round head square neck, 5/8 NC x 3 inch, grade 2

1шт.

m

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

28

1336745C1

SUPPORT

BRACKET - tray mounting

1шт.

g

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

29

1336746C1

TRAY

- belt (Continued from page 9-4)

1шт.

g

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

30

1336747C1

TRAY

- belt, upper

1шт.

g

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

31

1336748C1

LEVER

- clutch

1шт.

r

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

32

1336318C1

GRIP

- handle

1шт.

33

1336319C1

BRACKET

- pivot

1шт.

g

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange neck, 3/8 inch NC

2шт.

j

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

n

495-11053

WASHER,1/2", SAE

- flat, 17/32 I.D. (Shim to achieve proper operation)

1шт.

x

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

35

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

- flat

2шт.

36

1336750C1

SUPPORT

TIGHTENER - belt

1шт.

37

1336751C1

SUPPORT

GAUGE - tightener

1шт.

38

1336752C1

ROD

- adjusting

1шт.

p

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

1шт.

39

1336753C1

BAR

LINK - clutch

1шт.

r

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

s

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8 NC x 1 inch

1шт.

t

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

40

1336754C1

SUPPORT

MOUNT - clutch switch

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

x

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

41

1336755C1

SWITCH

- header drive clutch

1шт.
