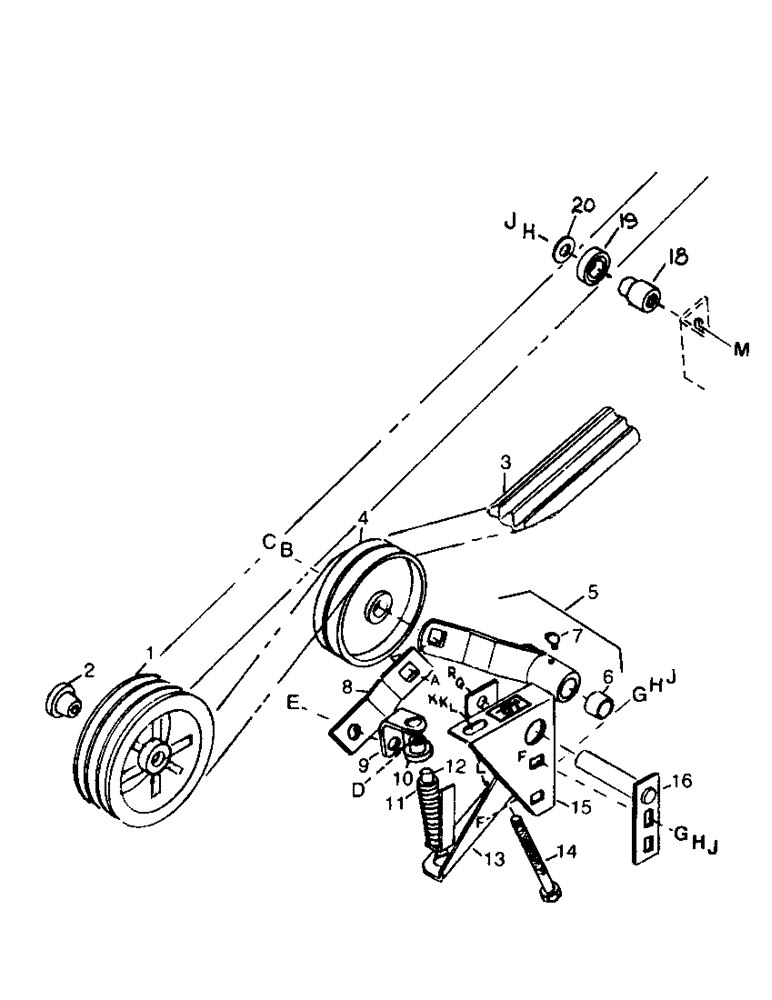

Запчасти Case IH 6500 (9-02) - TRACTION DRIVE (09) - CHASSIS

1

1336575C1

PULLEY

- traction drive

1шт.

2

1336576C1

BUSHING

- taper lock c/w bolts

1шт.

3

1336577C1

BELT,2745.00 mm L

Traction Drive 2745.00 mm L

1шт.

4

1336578C1

PULLEY

- idler

1шт.

a

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage head, 5/8 NC x 2-1/2 inch

1шт.

b

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

c

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

5

1336549C1

WASHER

ARM ASSEMBLY - idler c/w bushings & grease fitting

1шт.

6

1336730C1

BRACKET

BUSHING - arm

2шт.

7

16964R91

FITTING

- lube, 1/4 inch taper, 90 degrees

1шт.

8

1336721C1

BAR

BRACKET - idler pivot

1шт.

9

1336722C1

ANGLE

- idler pivot

1шт.

d

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8 NC x 1 inch

1шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - 3/8 inch NC distorted thread

1шт.

10

1336723C1

BUSHING

- plastic

1шт.

11

1336724C1

SPRING

- gauge

1шт.

12

1336725C1

ROD

GAUGE - idler rod

1шт.

13

1336726C1

ANGLE

- tenioning

1шт.

14

930987R1

BOLT

- special

1шт.

k

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

l

120396

WASHER

- flat, 17/32 inch I.D.

2шт.

15

1336727C1

SUPPORT

MOUNT - idler c/w decal

1шт.

f

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

g

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

4шт.

h

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

j

120377

NUT,3/8" - 16, Gr 5

4шт.

16

1976548C1

PIN

- idler arm

1шт.

q

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

r

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

18

1276647C1

PIN

- stepped (Diesel units only)

1шт.

19

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Single row (Diesel units only)

1шт.

20

20803R1

WASHER

- flat

1шт.

h

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

j

120377

NUT,3/8" - 16, Gr 5

1шт.

m

441549R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

1шт.
