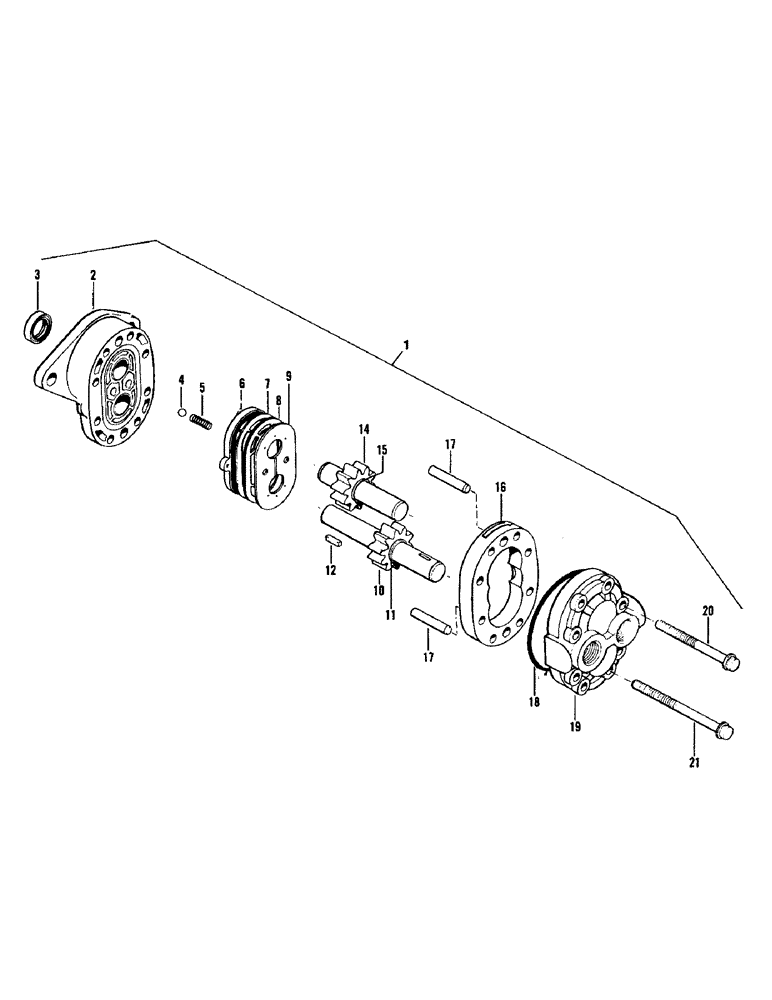

Запчасти Case IH 6500 (8-18) - GEAR PUMP ASSEMBLY, HEADER DRIVE (08) - HYDRAULICS

1

1336531C1

PUMP

ASSEMBLY - hydraulic

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - pump, front

1шт.

3

632855R91

SEAL

- oil

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - 7/32 inch dia.

2шт.

5

NSS

NOT SOLD SEPARAT

SPRING - tension

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - diaphragm

1шт.

7

NSS

NOT SOLD SEPARAT

PROTECTOR - gasket

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - seal

1шт.

9

NSS

NOT SOLD SEPARAT

DIAPHRAGM - pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive

1шт.

11

NSS

NOT SOLD SEPARAT

RING - snap, 5/8 x 3/4 x 1/64 inch

2шт.

12

NSS

NOT SOLD SEPARAT

KEY - 3/16 square x 31/32 inch, round ends

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - follow

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, 5/8 x 3/4 x 1/64 inch

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - pump, center

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

18

26225R1

O-RING,-041, 90 Duro, 2.989" ID x .070" Thk

- 3 x 3-1/8 x 1/16 inch

1шт.

19

NSS

NOT SOLD SEPARAT

BACKPLATE ASSEMBLY - pump

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - 12 pt. head, 5/16 NC x 2-3/4 inch

4шт.

21

NSS

NOT SOLD SEPARAT

BOLT - 12 pt. head, 5/16 NC x 3 inch

4шт.

D77554

SEAL

KIT - repair, includes all + items

1шт.
