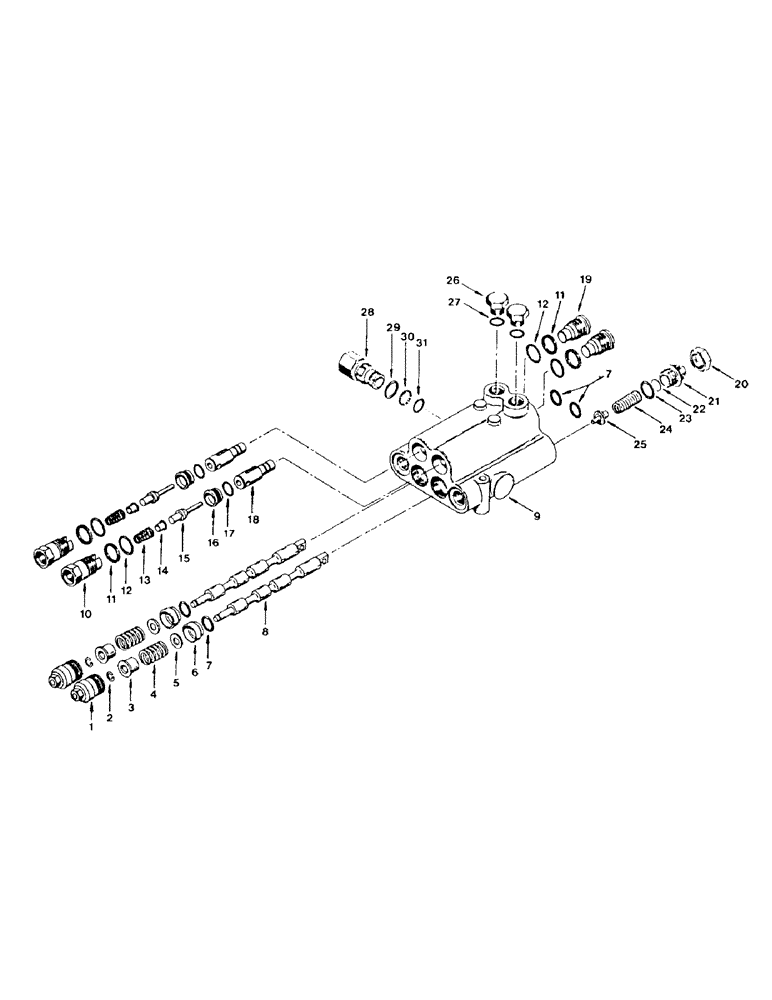

Запчасти Case IH 6500 (8-14) - CONTROL VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1976275C1
VALVE
CONTROL VALVE - complete
1шт.
1
NSS
NOT SOLD SEPARAT
CAP ASSEMBLY - spool
2шт.
2
NSS
NOT SOLD SEPARAT
RING - retaining
2шт.
3
NSS
NOT SOLD SEPARAT
SPACER - spool
2шт.
4
NSS
NOT SOLD SEPARAT
SPRING - spool center
2шт.
5
NSS
NOT SOLD SEPARAT
WASHER - flat, .670 O.D. x .046 inch thk.
2шт.
6
NSS
NOT SOLD SEPARAT
BUSHING
2шт.
7
NSS
NOT SOLD SEPARAT
O-RING - 3/32 x 1/2 inch I.D.
4шт.
8
NSS
NOT SOLD SEPARAT
SPOOL
2шт.
9
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
10
NSS
NOT SOLD SEPARAT
PLUG ASSEMBLY - port adapter
2шт.
11
NSS
NOT SOLD SEPARAT
WASHER - back-up, 3/32 x 5/8 inch I.D.
4шт.
12
NSS
NOT SOLD SEPARAT
O-RING - 3/32 x 5/8 inch I.D.
4шт.
13
NSS
NOT SOLD SEPARAT
SPRING - lockout
2шт.
14
NSS
NOT SOLD SEPARAT
EYELET
2шт.
15
NSS
NOT SOLD SEPARAT
POPPET - lockout
2шт.
16
NSS
NOT SOLD SEPARAT
SEAT - lockout
2шт.
17
NSS
NOT SOLD SEPARAT
O-RNG - 1/16 x 1/2 inch I.D.
2шт.
18
NSS
NOT SOLD SEPARAT
PLUNGER - unloading
2шт.
19
NSS
NOT SOLD SEPARAT
PLUG - lockout
2шт.
20
NSS
NOT SOLD SEPARAT
NUT - relief valve adjustment
1шт.
21
NSS
NOT SOLD SEPARAT
PLUG ASSEMBLY - relief valve
1шт.
22
NSS
NOT SOLD SEPARAT
SHIMS - relief valve (.10, .015 and .035 inch)
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - 3/32 x 41/64 inch I.D.
1шт.
24
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
25
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
26
NSS
NOT SOLD SEPARAT
PLUG
2шт.
27
NSS
NOT SOLD SEPARAT
O-RING - 5/64 x 15/32 inch I.D.
2шт.
28
NSS
NOT SOLD SEPARAT
PLUG - pressure beyond
1шт.
29
NSS
NOT SOLD SEPARAT
O-RING - 3/32 x 5/8 inch I.D.
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - back-up, 1/16 x 1/2 inch I.D.
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - 1/16 x 1/2 inch I.D.
1шт.
1976276C1
KIT
SEAL KIT - includes all items marked + - for valves without external lockout unloading plunger.
1шт.
1336526C1
KIT
SEAL KIT - for valves with external lockout unloading plunger.
1шт.
