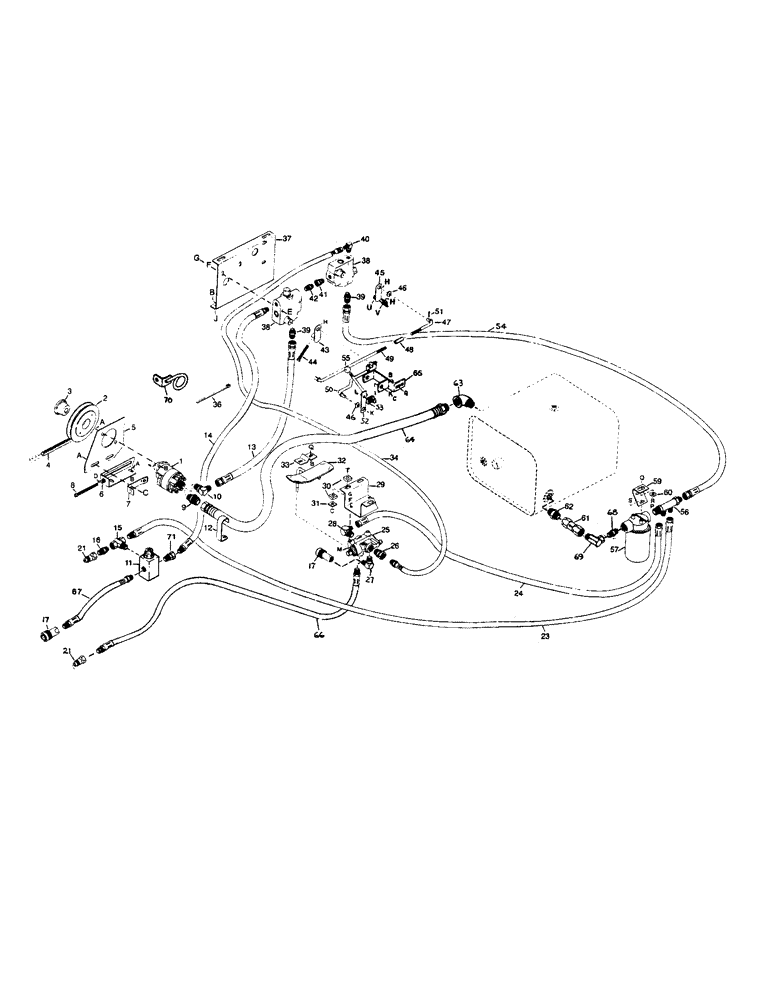

Запчасти Case IH 6500 (8-08) - HEADER DRIVE HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - c/w key, see page 8-18

1шт.

a

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

2

1336534C1

PULLEY

- pump

1шт.

3

1336535C1

BUSHING

- split taper

1шт.

4

1336536C1

BELT,1450.00mm L

Notched, Pump Drive 1450.00mm L

1шт.

5

1336537C1

SUPPORT

PLATE - pump mounting

1шт.

6

1336538C1

PLATE

- adjusting

1шт.

a

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

7

1336539C1

BAR

- adjusting

1шт.

a

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

8

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

Tightener Hex, 3/8"-16 x 3 1/2", G5, Full Thd

1шт.

d

120377

NUT,3/8" - 16, Gr 5

1шт.

9

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - male, 1 inch 37 degrees JIC tube x 1-1/16 o-ring

1шт.

10

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degrees male, 5/8 inch 37 degrees JIC tube x 7/8 o-ring

1шт.

11

1336543C1

VALVE

- relief

1шт.

1336895C1

KIT

SEAL KIT - for relief valve 1336543C1

1шт.

12

REF

INSTRUCTION

RETAINER - hose, see page 8-6 ref. 75

1шт.

13

132726C2

HOSE

ASSY, Pressure Line, Serial Range: Pump-Controllers

1шт.

14

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Reel Motor Pressure (NOTE: Initial service of hose requires fittings 255678C1 and 9402709) 12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

14

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR

1шт.

14

9402709

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, NPTF

CONNECTOR - hose

1шт.

15

1336541C1

TEE

UNION - swivel adapter, 1/2 inch NPT

1шт.

16

443983

PIPE

NIPPLE - hex pipe, 1/2 NPT, 30 degrees internal seat one end

1шт.

17

1336542C1

COUPLING

COUPLER - female, quick disconnect

2шт.

21

1336545C1

COUPLING

COUPLER - male, quick disconnect

2шт.

23

196584C2

HYDRAULIC HOSE

HOSE ASSEMBLY - reel motor return (NOTE: Initial service of hose requires fitting 255678C1)

1шт.

23

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - hose

1шт.

24

90877C1

HYDRAULIC HOSE

HOSE - draper motor return

1шт.

25

REF

INSTRUCTION

VALVE - 4-way, see page 8-16

1шт.

26

338784R91

ADAPTER

UNION - swivel adapter, 3/4 NPT male x 1/2 NPT female

1шт.

27

1336546C1

ELBOW

- 90 degrees male, 1/2 inch NPT

1шт.

28

338768R1

ELBOW UNION,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ELBOW - 90 degrees male, 1/2 inch 37 degrees JIC tube x 3/4 NPT

1шт.

29

1336547C1

SUPPORT

PLATE - valve

1шт.

f

120392

WASHER,1/4", SAE

- flat, 9/32 inch I.D.

3шт.

g

9413950

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4 inch NC distorted thread

3шт.

m

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

30

1336548C1

WASHER

- rubber

6шт.

31

1336549C1

WASHER

-square

3шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

3шт.

t

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - carriage head, 3/8 NC x 1-1/2 inch

3шт.

32

1336550C1

PEDAL

- valve

1шт.

33

1336530C1

SOCKET

- pedal

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

q

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage head, 3/8 NC x 3/4 inch

2шт.

34

139519C2

HYDRAULIC HOSE

HOSE ASSEMBLY - draper motor pressure (Continued from page 8-8) (NOTE: Initial service of hose requires fitting 607728R1)

1шт.

34

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - straight, 1/2 PT x 9/16-18 inch thread

1шт.

36

1336064C1

CABLE TIE

TIE - cable

1шт.

37

1336551C1

SUPPORT

PLATE - mounting, flow control

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

j

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 long

4шт.

38

REF

INSTRUCTION

CONTROL - flow, see page 8-16

2шт.

e

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

CAPSCREW - hex head, 1/4 NC x 2-1/2 inch

4шт.

f

120392

WASHER,1/4", SAE

- flat, 9/32 inch I.D.

4шт.

g

9413950

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4 inch NC distorted thread

4шт.

39

607379R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - male, 5/8 inch 37 degrees JIC tube x 3/8 NPT

2шт.

40

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees male, 3/8 inch 37 degrees JIC tube x 3/8 NPT

1шт.

41

333761R1

UNION

- swivel adapter, 3/8 NPT male x 3/8 NPT female

1шт.

42

443981

CONNECTOR, ELEC

NIPPLE - hex pipe, 3/8 NPT, 30 degrees internal seat one end

1шт.

43

1336553C1

BAR

CONTROL - front rod

1шт.

44

113-108

BOLT,Hex, 5/16" - 18 x 3", Gr 5, Full Thd

- hex head, 5/16 NC x 3 inch, thread full length

1шт.

h

120376

NUT,5/16"-18, G5

1шт.

45

1336555C1

BAR

CONTROL - rear rod

1шт.

h

120376

NUT,5/16"-18, G5

2шт.

u

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

CAPSCREW - hex head, 5/16 NC x 1-1/2 inch

1шт.

v

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex head, 5/16 NC x 1 inch

1шт.

46

1336065C1

GROMMET

- rubber

4шт.

47

1336556C1

ROD

LINK - valve

1шт.

48

1336557C1

COUPLING

NUT - coupling

1шт.

49

1336558C1

ROD

LINK - draper valve

1шт.

50

1336559C1

ROD

LINK - reel valve

1шт.

51

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

k

103394

WASHER - flat, 13/32 inch I.D.

4шт.

52

1336560C1

LEVER

- control

2шт.

53

1336307C1

WASHER

- tension, wave spring, 3/8 inch I.D.

2шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

k

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

2шт.

l

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8 NC x 1 inch

2шт.

54

1336561C1

HOSE

- excess flow

1шт.

55

1336191C1

KNOB

- plastic

2шт.

56

1336562C1

MANIFOLD

1шт.

57

1276809C1

HEAD

FILTER - oil, c/w head

1шт.

1276810C1

ELEMENT

FILTER - replacement element

1шт.

1336896C1

HEAD

- filter

1шт.

59

1336563C1

SUPPORT

- filter

1шт.

60

20803R1

WASHER

- flat

1шт.

q

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage head, 3/8 NC x 3/4 inch

1шт.

r

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

p

120377

NUT,3/8" - 16, Gr 5

1шт.

s

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flange head, 1/4 NC x 3/4 inch} as dictated by filter

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- flange head, 5/16 NC x 1/2 inch} as dictated by filter

2шт.

61

REF

INSTRUCTION

VALVE - check, see page 8-6, ref. 72

1шт.

62

REF

INSTRUCTION

NIPPLE - hex pipe, see page 8-6, ref. 71

1шт.

CONTINUED FROM PAGE 8-10

1шт.

63

REF

INSTRUCTION

ELBOW - 90 degrees street, see page 8-4, ref. 31

1шт.

64

REF

INSTRUCTION

HOSE - suction, see page 8-6, ref. 73

1шт.

65

1336564C1

SUPPORT

MOUNT - lever

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

3шт.

q

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage head, 3/8 NC x 3/4 inch

3шт.

66

813006C2

HYDRAULIC HOSE

HOSE ASSEMBLY - 4 way valve to header leg (NOTE: Initial service of hose requires fitting 607728R1(2)

1шт.

66

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - hose

2шт.

67

90875C1

HYDRAULIC HOSE

HOSE ASSEMBLY - relief valve to header leg (NOTE: Initial service of hose requires fitting 255678C1(2)

2шт.

67

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - hose

2шт.

68

1336565C1

NIPPLE, LUBE

NIPPLE - hex, 3/4 NPT

1шт.

69

218-929

90 ELBOW,90 Degree, 3/4" NPTF Male x 3/4" NPSM Fem Sw

- 90 degrees swivel, 3/4 NPT male x 3/4 NPT female

1шт.

70

1336566C1

GUIDE

- hose, see electrical group for hardware

1шт.

71

364890R91

CONNECTION

UNION - swivel adapter, 1/2 NPT male x 1/2 NPT female

1шт.
