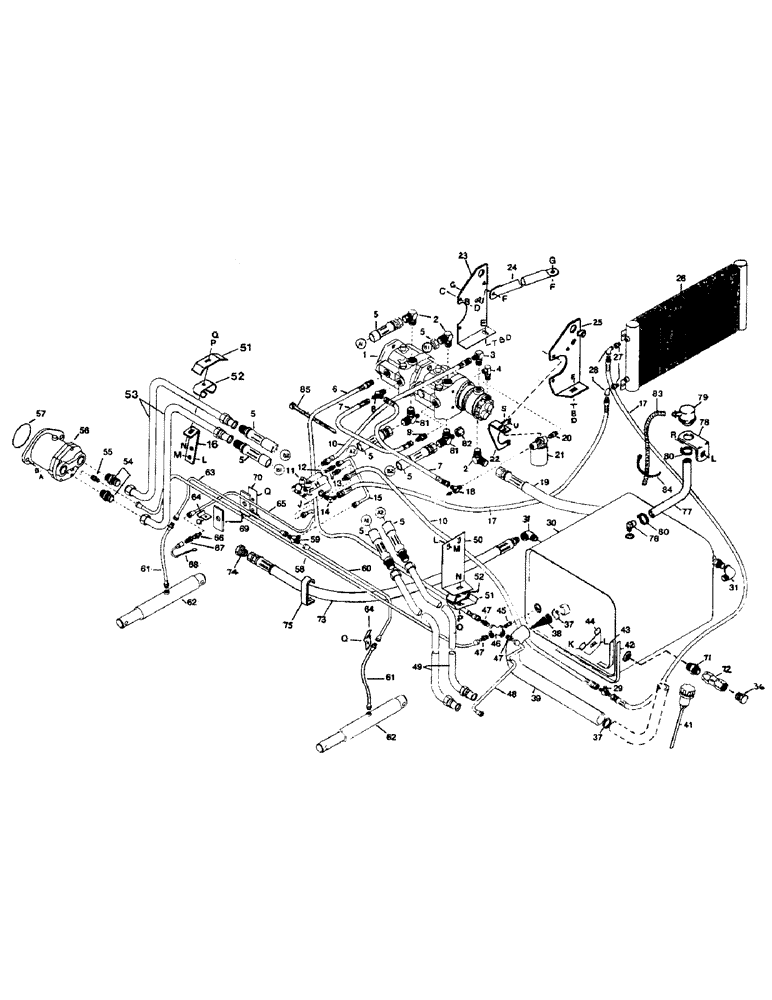

Запчасти Case IH 6500 (8-02) - TRACTION DRIVE AND HEADER LIFT HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - triple, complete - page 6-2

1шт.

2

153619C91

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degrees male, 1-1/16 o-ring x 1 inch 37 degrees J1C tube

3шт.

3

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degrees male, 7/8 o-ring x 1/2 inch 37 degrees J1C tube

1шт.

4

1336455C1

ELBOW

- 90 degrees, 3/4 o-ring x 3/4 NPT female swivel

1шт.

5

1336456C1

HOSE

ASSEMBLY - high pressure

4шт.

6

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

Assy - Pump (NOTE: Initial service of hose requires fittings 587639R1 and 570828R1) 9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

6

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, tube

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

7

390649R92

HYDRAULIC HOSE

HOSE - charge line

2шт.

8

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- male run, 1/2 inch 37 degrees J1C tube x 3/4 o-ring

1шт.

9

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, 1/2 inch 37 degrees J1C tube x 3/4 o-ring

1шт.

10

147888C1

HOSE ASSY.

HOSE ASSEMBLY - control valve (NOTE: Initial service of hose requires fittings 9410202, 9403400, 9403528 and 364839R1.)

2шт.

10

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short

1шт.

10

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

- tube

2шт.

10

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

- hydraulic

2шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

11

REF

INSTRUCTION

VALVE - control, see page 8-14

1шт.

h

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

CAPSCREW - hex head, 1/4 NC x 2 inch

2шт.

j

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- serrated flange lock, 1/4 NC

2шт.

12

596300R1

PLATE

ORIFICE - 0.0935 inch I.D.

1шт.

13

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - male, 1/4 inch 37 degrees J1C tube x 9/16 o-ring

2шт.

14

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degrees male, 1/2 inch 37 degrees J1C tube x 9/16 o-ring

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 9/16

1шт.

15

1336458C1

TUBE,6.35 mm OD

ASSEMBLY - valve to tee

1шт.

16

1336459C1

SUPPORT

BRACKET - R/H

1шт.

l

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

m

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8 NC x 1 inch

2шт.

17

195869C2

HYDRAULIC HOSE

HOSE ASSEMBLY - oil cooler (NOTE: Initial service of hose requires fitting 255678C1)

2шт.

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - hydraulic

2шт.

18

1336460C1

ELBOW

CONNECTOR - modified

1шт.

19

1336461C1

HOSE

ASSEMBLY - suction

1шт.

20

1336462C1

NIPPLE, LUBE

NIPPLE - short

1шт.

21

1276809C1

HEAD

FILTER - oil, c/w head

1шт.

1276810C1

ELEMENT

FILTER - replacement element

1шт.

1336896C1

HEAD

- filter

1шт.

22

1960566C1

SUPPORT

- filter

1шт.

s

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flange head, 1/4 NC x 3/4 inch} as dictated by filter

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- flange head, 5/16 NC x 1/2 inch} as dictated by filter

2шт.

u

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW - hex head, 3/8 NC x 1-1/2 inch

2шт.

23

1336464C1

SUPPORT

MOUNT - pump, R/H

1шт.

c

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/2 inch

2шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

d

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

e

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, NC x 1-1/4 inch

1шт.

t

495-11053

WASHER,1/2", SAE

- flat, 17/32 inch I.D.

1шт.

24

1336465C1

BRACE

- pump

1шт.

f

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 NC

2шт.

g

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

2шт.

25

1336466C1

SUPPORT

MOUNT - pump, L/H c/w decal (Continued from page 8-2)

1шт.

e

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

t

495-11053

WASHER,1/2", SAE

R - flat, 17/32 inch I.D.

1шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

d

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

1336467C1

COOLER

- oil

1шт.

27

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

bushing 3/4"-14 NPTF x 1/2"-18 Fem NPTF

2шт.

28

108686

ELBOW,90 Degree, 1/2" NPT Street

- 90 degrees street, 1/2 NPT

2шт.

29

9403021

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

ASSEMBLY -1/2 NPT x 1/2 inch 37 degrees JIC (NOTE: Initial service requires adapter 144216)

1шт.

29

144216

BUSHING,1/2" NPT Male x 3/8" NPT Fem

ADAPTER - pipe

1шт.

30

1336468C1

RESERVOIR

- oil

1шт.

31

NLS

NO LONGER SERVICED

ELBOW - 90 degrees street, 1 inch NPT

2шт.

36

444637

SPACER,Hex Hd, 3/4"-14

- 3/4 NPT

1шт.

37

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP - hose, gear type

2шт.

38

1336471C1

STRAINER ASSY.

STRAINER - hydraulic

1шт.

39

1336472C1

HOSE

- filter

1шт.

41

1336473C1

CAP

DIPSTICK ASSEMBLY - oil filler

1шт.

42

1336338C1

SEAL

SPONGE - stripping

2шт.

43

1336339C1

SEAL

SPONGE - stripping

2шт.

44

1336474C1

SUPPORT

RETAINER - oil reservoir

2шт.

k

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

l

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

45

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - close, 1/2 inch NPT

1шт.

46

142340

UNION

CROSS - female, 1/2 inch NPT

1шт.

47

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - male, 1/2 NTP x 3/8 in 37 degrees JIC tube

3шт.

48

1336475C1

TUBE,9.52 mm OD

ASSEMBLY - L/H motor case drain, tread width "X"

1шт.

48

1960440C1

TUBE,9.52 mm OD

ASSEMBLY - L/H motor case drain, tread width "Y"

1шт.

49

1336476C1

TUBE,25.4 mm OD

ASSEMBLY - L/H high pressure, tread width "X"

2шт.

49

1960438C1

TUBE,25.4 mm OD

ASSEMBLY - L/H high pressure, tread width "Y"

2шт.

50

1336477C1

SUPPORT

BRACKET - L/H

1шт.

l

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

m

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8 NC x 1 inch

2шт.

51

1336478C1

CLAMP

- tube

2шт.

52

1336479C1

PROTECTOR

- hose/tube

2шт.

n

441549R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

2шт.

p

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

2шт.

q

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

53

1336480C1

TUBE,25.4 mm OD

ASSEMBLY - R/H high pressure, tread width "X"

2шт.

53

1960439C1

TUBE,25.4 mm OD

ASSEMBLY - R/H high pressure, tread width "Y"

2шт.

54

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - male, 1 inch 37 degrees JIC tube x 1-1/16 o-ring

4шт.

55

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - male, 3/8 inch 37 degrees JIC tube x 9/16 o-ring

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for connector 9410202

2шт.

56

REF

INSTRUCTION

MOTOR - final drive, see page 6-10

2шт.

a

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/4 inch

4шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

57

343700R1

O-RING,-155, 70 Duro, 3.987" ID x .103" Thk

- 4 inch I.D. x 3/32 inch diameter

2шт.

58

1336481C1

TUBE,9.52 mm OD

ASSEMBLY - R/H motor case drain, tread width "X"

1шт.

58

1960441C1

TUBE,9.52 mm OD

ASSEMBLY - R/H motor case drain, tread width "Y"

1шт.

59

9402979

TEE,7/16"-20, 37 Degree

- union, 1/4 inch 37 degrees JIC tube

1шт.

60

1336482C1

HYD TUBE,6.35 mm OD

TUBE ASSEMBLY - L/H lift cylinder (Continued from page 8-4)

1шт.

61

1336490C1

HOSE

- lift cylinder

2шт.

62

1336483C1

CYLINDER

- single acting, header lift

2шт.

1973372C1

SEAL KIT

SEAL KIT - for cylinder 1336483C1

1шт.

63

1336484C1

HYD TUBE,6.35 mm OD

TUBE ASSEMBLY - R/H lift cylinder

1шт.

64

1276740C1

CLAMP

CLIP - tube

3шт.

q

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

3шт.

65

1336486C1

TUBE,6.35 mm OD

ASSEMBLY - reel lift

1шт.

66

317783R1

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - male, 1/4 inch 37 degrees JIC tube x 1/4 NPT

1шт.

67

1336487C1

COUPLING

COUPLER - male, quick disconnect

1шт.

68

1337299C1

CAP

- dust

1шт.

69

1336488C1

PROTECTOR

- hydraulic line

4шт.

70

1336489C1

SHIELD

- tube

2шт.

q

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

71

1336491C1

NIPPLE, LUBE

NIPPLE - hex, pipe, 1/4 NPT x 3/4 NPT

1шт.

72

1336492C1

VALVE

- check

1шт.

73

1336493C1

HOSE

- suction, hydraulic header drive

1шт.

74

9403337

PLUG,1 5/16"-12, 37 Degree

- 1 inch 37 degrees JIC tube

1шт.

75

1336494C1

SUPPORT

RETAINER - hose

1шт.

76

120063

BOLT,Hex, M8 x 80, 8.8

- 90 degrees street, 3/8 inch NPT

1шт.

77

1336469C1

HOSE

- breather

1шт.

78

1336470C1

BRACKET

- breather

1шт.

l

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

r

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage head, 3/8 NC x 3/4 inch

1шт.

79

1336135C1

CLEANER

BREATHER - tank

1шт.

80

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose

2шт.

81

1336897C1

TEE

- branch

2шт.

82

9403369

CAP,37 Degree, 7/16"-20

NUT - cap

2шт.

83

1969207C1

HOSE

TUBE - breather intake

1шт.

84

1336064C1

CABLE TIE

TIE - plastic, 7-1/2 inch

1шт.

85

291207C1

CLAMP

TIE - plastic, 14-3/4 inch

5шт.
