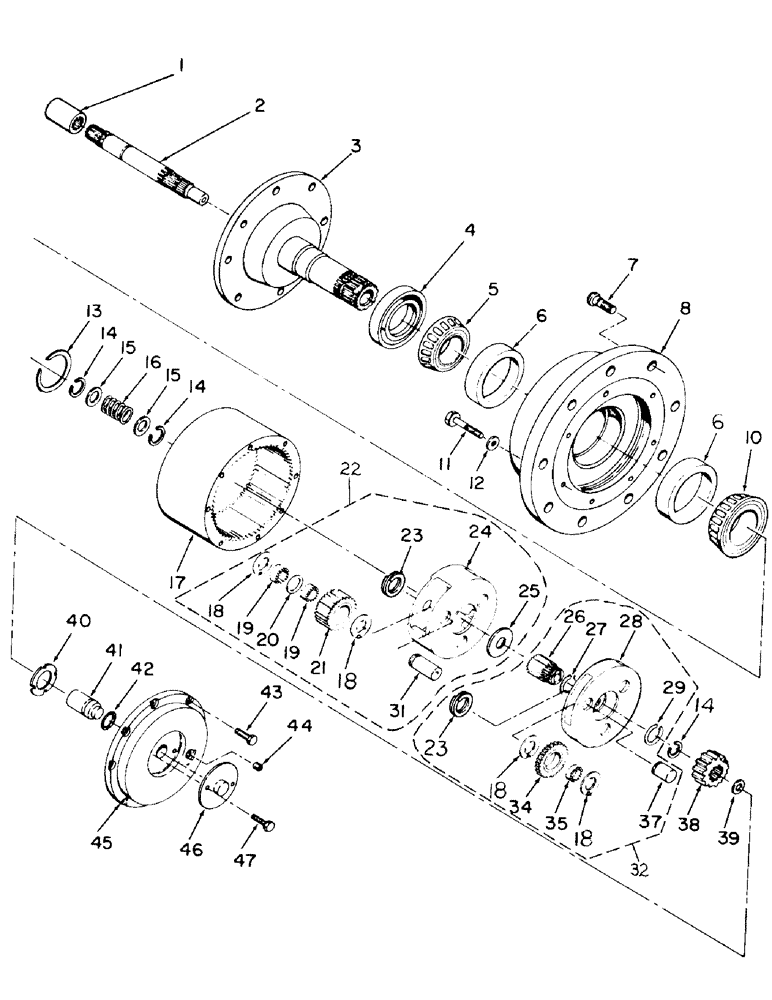

Запчасти Case IH 6500 (6-14) - POWER WHEELS (06) - POWER TRAIN

1

1334058C1

COUPLING

- 13 teeth

1шт.

2

1334059C1

SHAFT

- input, 13 teeth

1шт.

3

1334060C1

SPINDLE

- 13 teeth

1шт.

4

1334091C1

SEAL

- oil

1шт.

5

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

CONE - bearing

1шт.

6

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

CUP - bearing

2шт.

7

1334109C1

BOLT

- wheel, ribbed neck, 9/16 NF x 1-7/8 inch

9шт.

8

1334092C1

HUB

- wheel

1шт.

10

190585R91

TAPERED BEARING,66.68 mm ID x 22.2 mm

CONE - bearing

1шт.

11

27615R1

BOLT,Hex, 3/8"-24 x 1 7/8", G8

- hex head 3/8 NF x 1-7/8 inch, grade 8

6шт.

12

1334093C1

WASHER

- flat, special hardened

6шт.

13

1334094C1

SEAL

RING KIT - retainer, includes the following sizes:

1шт.

13

NSS

NOT SOLD SEPARAT

RING .116 - .118 inch

1шт.

13

NSS

NOT SOLD SEPARAT

RING .123 - .125 inch

1шт.

13

NSS

NOT SOLD SEPARAT

RING .131 - .133 inch

1шт.

13

NSS

NOT SOLD SEPARAT

RING .108 - .110 inch

1шт.

14

1334095C1

RING

- retainer

2шт.

15

1334096C1

WASHER

- spring back-up

2шт.

16

1334097C1

SPRING

- disengage

1шт.

17

1334098C1

GEAR

- ring

1шт.

22

1334099C1

KIT

CARRIER ASSEMBLY - secondary (Includes items: 18-21, 23-25, and 31)

1шт.

32

1334100C1

KIT

CARRIER ASSEMBLY - primary (Includes items: 18, 23, 26-29, 34, 35, 37)

1шт.

38

1334101C1

GEAR

- sun, 19 teeth

1шт.

39

1334102C1

WASHER

- thrust

1шт.

40

1334103C1

WASHER

- thrust

1шт.

41

1334104C1

PLUNGER

- disengage

1шт.

42

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 I.D. x 3/32 inch dia.

1шт.

43

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex head, 5/16 NC x 1 inch

8шт.

44

1336227C1

PLUG

- magnetic, 1/2 NPT

1шт.

45

1334107C1

COVER

- large

1шт.

56

1334108C1

COVER

- disengage

1шт.

47

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

CAPSCREW - hex head, 5/16 NC x 3/4 inch

2шт.
