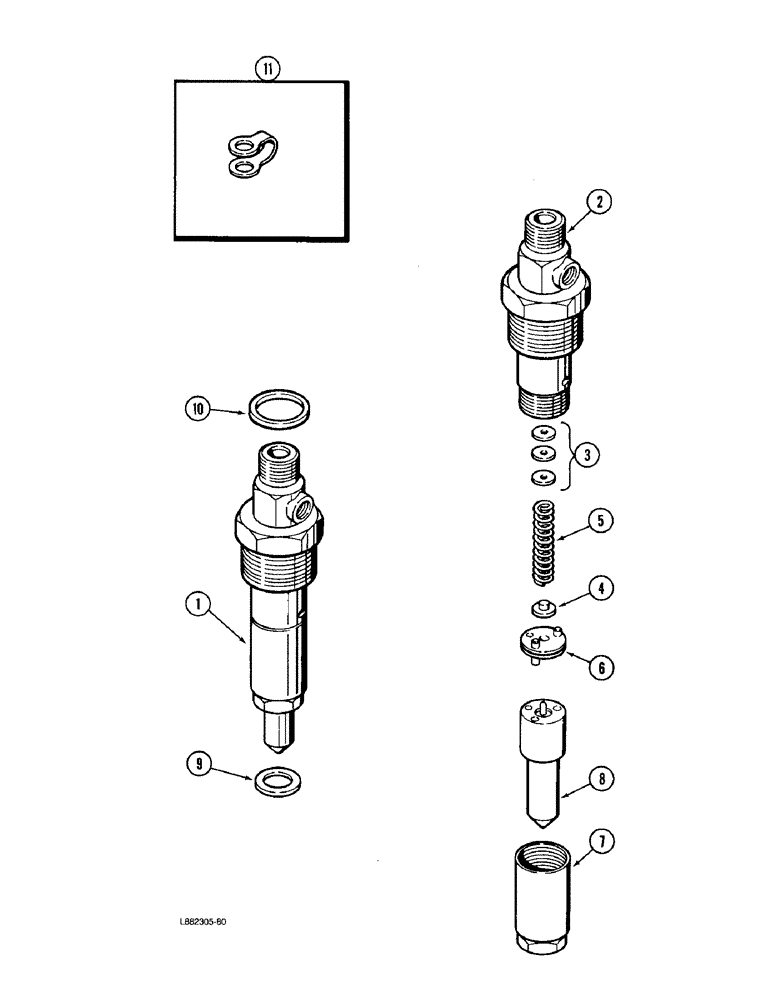

Запчасти Case IH 6500 (3-14) - FUEL INJECTION NOZZLE, 4-390 ENGINE (03) - FUEL SYSTEM

1

J911340

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, new 9 mm tip no loner available

4шт.

Part of Injector Nozzle Kit, P/N A77553

1шт.

1

JR911340

REMAN-INJECT NOZZLE

Reman-Injection Nozzle Assembly

4шт.

1

JC911340

CORE-INJECTION PUMP

Return Number - nozzle assembly (Use this part number to return nozzle core for credit)

4шт.

J914472

NOZZLE INJECTION

INJECTION NOZZLE, new

1шт.

JR914472

REMAN-INJECT NOZZLE

Reman-Injection Nozzle Reman Injector w/ 9 mm Tip

1шт.

JC914472

CORE-INJECTION PUMP

Return Number, Injection Nozzle

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - injector

1шт.

Part of Injector Nozzle Kit, P/N A77553

1шт.

A48186

KIT

KIT - shim, nozzle opening pressure (One kit will repair four nozzles)

1шт.

3

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle (5 in kit) 1.00mm Thk

1шт.

3

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle (5 in kit) 1.04mm Thk

1шт.

3

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle (5 in kit) 1.08mm Thk

1шт.

3

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle (5 in kit) 1.10mm Thk

1шт.

3

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle (5 in kit) 1.14mm Thk

1шт.

3

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle (5 in kit) 1.18mm Thk

1шт.

3

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle (5 in kit) 1.20mm Thk

1шт.

3

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle (5 in kit) 1.24mm Thk

1шт.

3

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle (5 in kit) 1.28mm Thk

1шт.

3

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle (5 in kit) 1.30mm Thk

1шт.

3

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle (5 in kit) 1.34mm Thk

1шт.

3

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle (5 in kit) 1.38mm Thk

1шт.

3

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle (5 in kit) 1.40mm Thk

1шт.

3

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle (5 in kit) 1.44mm Thk

1шт.

3

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle (5 in kit) 1.48mm Thk

1шт.

3

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle (5 in kit) 1.50mm Thk

1шт.

3

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle (5 in kit) 1.54mm Thk

1шт.

3

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle (5 in kit) 1.58mm Thk

1шт.

3

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle (5 in kit) 1.60mm Thk

1шт.

3

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle (5 in kit) 1.64mm Thk

1шт.

3

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle (5 in kit) 1.68mm Thk

1шт.

3

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle (5 in kit) 1.70mm Thk

1шт.

3

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle (5 in kit) 1.74mm Thk

1шт.

3

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle (5 in kit) 1.78mm Thk

1шт.

3

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle (5 in kit) 1.80mm Thk

1шт.

3

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle (5 in kit) 1.84mm Thk

1шт.

3

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle (5 in kit) 1.88mm Thk

1шт.

3

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle (5 in kit) 1.90mm Thk

1шт.

3

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle (5 in kit) 1.94mm Thk

1шт.

3

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle (5 in kit) 1.98mm Thk

1шт.

4

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

5

J905152

SPRING

SPRING - nozzle pressure

1шт.

6

J905154

PLATE

STOP ASSEMBLY - nozzle valve

1шт.

7

A48201

NUT

NUT - cap, nozzle tip

1шт.

8

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - injector nozzle

1шт.

Part of Injector Nozzle Kit, P/N A77553

1шт.

9

J900808

SEAL

GASKET - nozzle (See note)

6шт.

Whenever a nozzle is removed from cylinder head, J900808 gasket must be replaced before nozzle is installed.

1шт.

Part of Injector Nozzle Kit, P/N A77553

1шт.

10

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

SEAL - injector

6шт.

11

J903380

SEAL

SEAL - connector

6шт.

Part of Injector Nozzle Kit, P/N A77553

1шт.

A77553

KIT

KIT - injector nozzle, new, Includes: ref. nos. 1, 2, 8, 9, 11

1шт.

AR77553

REMAN-INJECT NOZZLE

Reman-Injection Nozzle Kit - injection nozzle, remanufactured Kit No Longer Available, Order 1 Each Of JR919931 7 mm Tip Reman Injector, J903380 Seal, J909356 Seal, And J919358 Adapter

1шт.

AC77553

INJECTOR ASSY.

Return Number

1шт.
