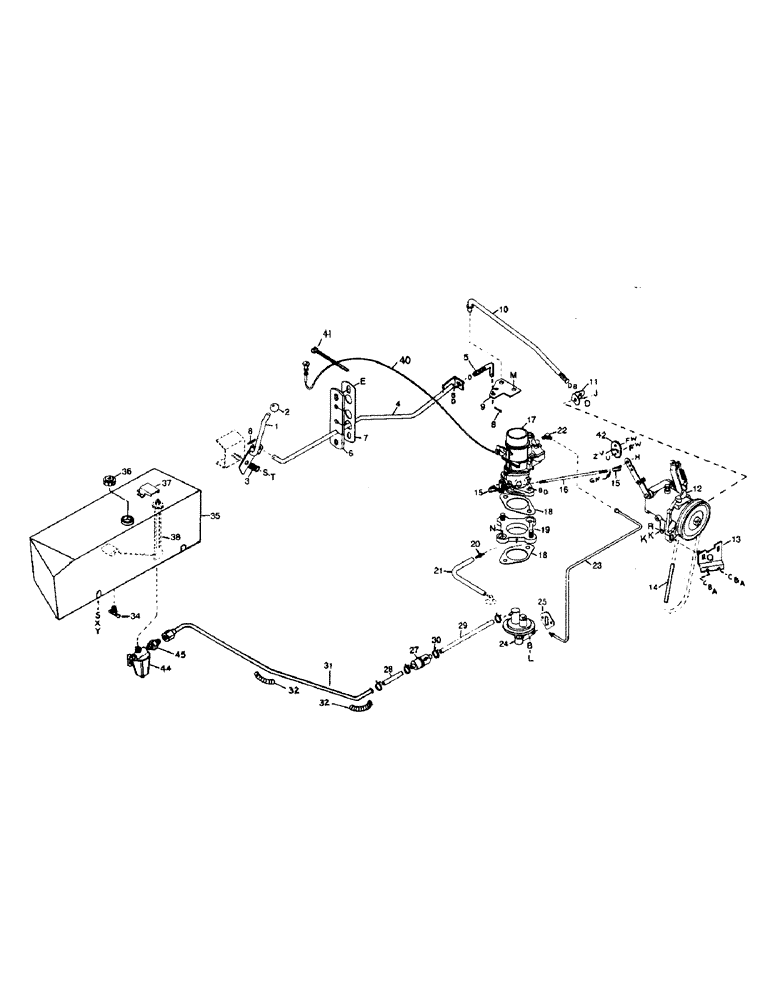

Запчасти Case IH 6500 (3-02) - FUEL GROUP, GAS ENGINE (03) - FUEL SYSTEM

1

1336190C1

THROTTLE

LEVER - throttle

1шт.

2

1336191C1

KNOB

- lever

1шт.

3

1334127C1

SPRING

- lever

1шт.

s

NLS

NO LONGER SERVICED

- flat, 17/32 inch I.D.

1шт.

t

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, , Distorted thread 1/2"-13, GC

1шт.

4

1336193C1

ROD

- throttle

1шт.

5

1336196C1

ROD

LINK - throttle

1шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

d

120377

NUT,3/8" - 16, Gr 5

2шт.

6

1336194C1

BRACKET

ISOLATOR - rubber

1шт.

7

1336195C1

COVER

- throttle rod

1шт.

e

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- flange head, 3/8 NC x 1 inch

2шт.

8

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

3шт.

9

1336197C1

LEVER

BELL-CRANK - throttle

1шт.

m

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

10

1336198C1

ROD

- governor

1шт.

11

1336199C1

BAR

ANGLE - governor pivot

1шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

d

120377

NUT,3/8" - 16, Gr 5

2шт.

j

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

k

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

12

1336200C1

GOVERNOR

- throttle

1шт.

13

1336201C1

BASE

MOUNT - governor

1шт.

a

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

c

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

2шт.

q

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

r

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

14

1336202C1

BELT,9.52 mm W x 1170.00 mm L

Governor 9.52 mm W x 1170.00 mm L

1шт.

15

1336162C1

JOINT

- ball, #10-32 NF

2шт.

f

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

g

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

h

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, , Nylon patch or insert #10-32, GB

2шт.

16

1336203C1

ROD

-, Serial Range: carburetor-governor

1шт.

17

1336161C1

CARBURETOR

- fuel

1шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

d

120377

NUT,3/8" - 16, Gr 5

2шт.

18

1336163C1

GASKET

- carburetor

2шт.

19

1336164C1

ADAPTER

BLOCK - carburetor adapter

1шт.

n

1336177C1

SCREW,Mach, Flat Skt Hd, 3/8" x 1"

- machine, flat socket head, 3/8 NC x 1 inch

2шт.

20

293344C1

NIPPLE, LUBE,3/8" Hose x 1/8" NPTF, Barbed

FITTING - barbed, 1/8 NPT x 3/8 inch I.D. hose

1шт.

21

1336165C1

HOSE

- to PCV valve

1шт.

22

118754

ELBOW

- 90 degrees male, SAE 45 degrees flare

1шт.

23

1336166C1

TUBE,7.94 mm OD

LINE - fuel, pump to carburetor (Continued from page 3-2)

1шт.

24

1336167C1

PUMP

- fuel

1шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

l

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW - hex head, 3/8 NC x 1-1/4 inch

2шт.

25

532496R1

GASKET

- fuel pump

1шт.

27

417917C91

FILTER

FUEL FILTER (P.I.N. 0718 and up)

1шт.

28

1954143C1

FUEL HOSE,0.31" ID x 25.00' Bulk

Line to Filter, Specify 75.00 mm Length (P.I.N. 0718 and up) 0.31" ID x 25.00' Bulk

1шт.

29

1954143C1

FUEL HOSE,0.31" ID x 25.00' Bulk

to Pump, Specify 230.00 mm Length 0.31" ID x 25.00' Bulk

1шт.

30

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

(P.I.N. 0717 and below, quantity 2 req'd) #4, 0.25/0.62 Type F Worm

4шт.

31

1336170C1

TUBE,7.94 mm OD

LINE - fuel, suction (P.I.N. 0717 and below)

1шт.

31

1978767C1

TUBE

LINE - fuel, suction (P.I.N. 0718 and up)

1шт.

32

1336856C1

HOSE

PROTECTOR - fuel line

2шт.

34

103647

VALVE

- drain

1шт.

35

1336173C1

FUEL TANK

TANK - fuel

1шт.

s

120396

WASHER

- flat, 17/32 inch I.D.

3шт.

x

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

y

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/4 inch

3шт.

36

1336174C1

CAP

- fuel tank

1шт.

37

1336175C1

SHIELD

- fuel gauge sender

1шт.

38

See electrical group

1шт.

40

1336204C1

CABLE

- choke control

1шт.

41

1336064C1

CABLE TIE

TIE - cable

1шт.

42

1336205C1

BRACKET

- governor

1шт.

f

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

w

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

u

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

v

120391

WASHER,#10

- flat, 3/16 inch I.D.

1шт.

z

159947

HYD CONNECTOR

- machine, Phillips pan head, #10 NC x 3/4 inch

1шт.

44

1336176C1

BOWL

- sediment (P.I.N. 0717 and below)

1шт.

44

1978768C1

BOWL

- sediment, less screen (P.I.N. 0718 and up)

1шт.

45

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

CONNECTOR - male, SAE 45 degrees 5/16 tube x 1/8 inch NPT

1шт.
