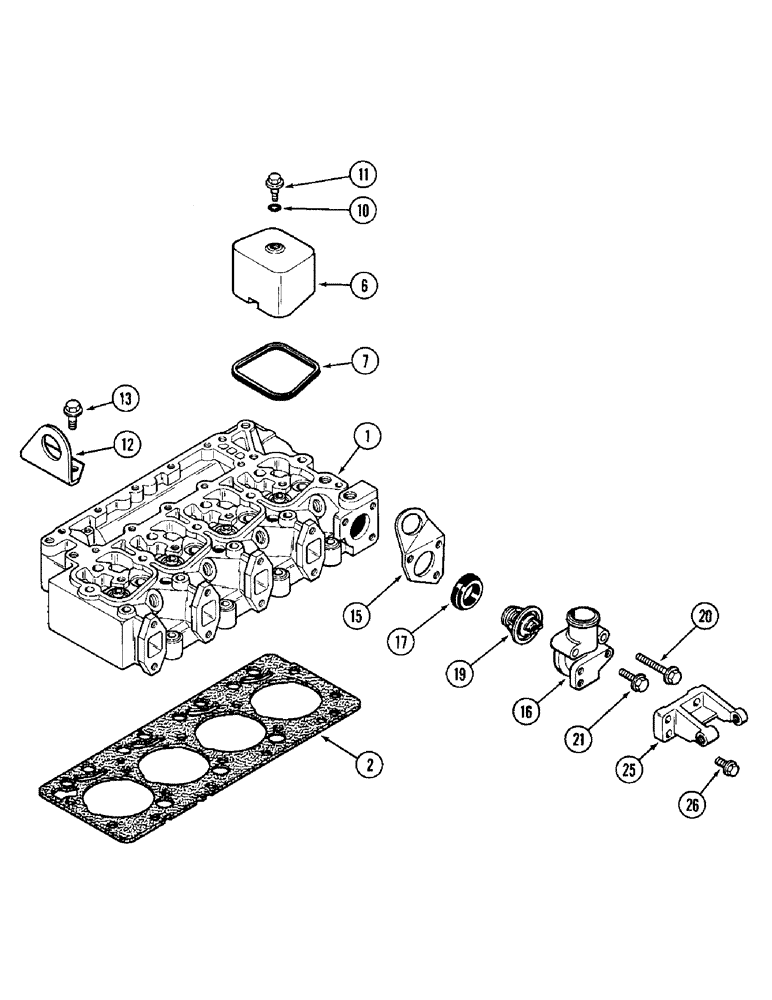

Запчасти Case IH 6500 (2-44) - CYLINDER HEAD AND COVERS, 4-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, engine (See page 2-46)

1шт.

2

J907054

GASKET

- cylinder head, standard

1шт.

2

J907055

CYLINDER HEAD GASKET

- cylinder head, 0.13 MM thicker

1шт.

2

J907056

CYLINDER HEAD GASKET

- cylinder head, 0.50 MM thicker

1шт.

6

J902604

COVER

- rocker

4шт.

7

J902666

GASKET

SEAL - rocker cover

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces J901837)

4шт.

11

J907049

BOLT,Hex

- special, M8 x 1.25 x 21.25 MM

4шт.

12

J908118

BRACKET

- lifting, rear

1шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex flange head, M12 x 25

2шт.

15

J903757

BRACKET

- lifting, front THERMOSTAT AND HOUSING

1шт.

16

J903756

HOUSING

- thermostat THERMOSTAT AND HOUSING

1шт.

17

J903301

GASKET

- housing THERMOSTAT AND HOUSING

1шт.

19

J912587

THERMOSTAT

- water, 95 degree C (Replaces J910706) THERMOSTAT AND HOUSING

1шт.

20

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

BOLT - hex flange head, M8 x 1.25 x 70 MM THERMOSTAT AND HOUSING

2шт.

21

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - hex flange head, M8 x 1.25 x 35 MM THERMOSTAT AND HOUSING

1шт.

25

J910713

SUPPORT

- alternator mounting THERMOSTAT AND HOUSING

1шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange head, M8 x 1.25 x 25 MM THERMOSTAT AND HOUSING

3шт.
